Have you ever wondered what makes a dry-type transformer so efficient and reliable? These transformers play a crucial role in electrical systems, but what's inside them? In this article, we'll explore the key components of a dry-type transformer, how they work together, and their importance in ensuring efficient energy transfer. You'll also learn about each part's function and role in maintaining transformer performance.
A dry-type transformer is an electrical device that uses air for cooling and solid insulation materials, rather than oil. It transfers electrical energy from a high-voltage circuit to a lower-voltage circuit.
The main advantage of dry-type transformers is their safety, as they don't use flammable liquids. They are also environmentally friendly and easier to maintain, with no need for oil monitoring or changes.

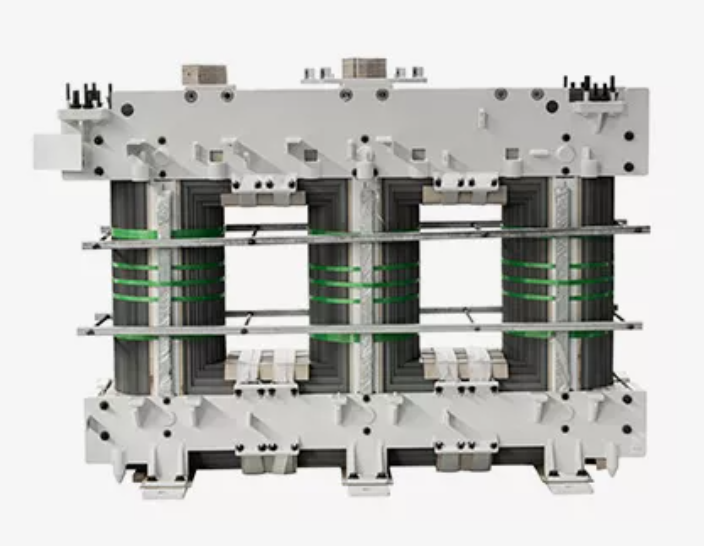

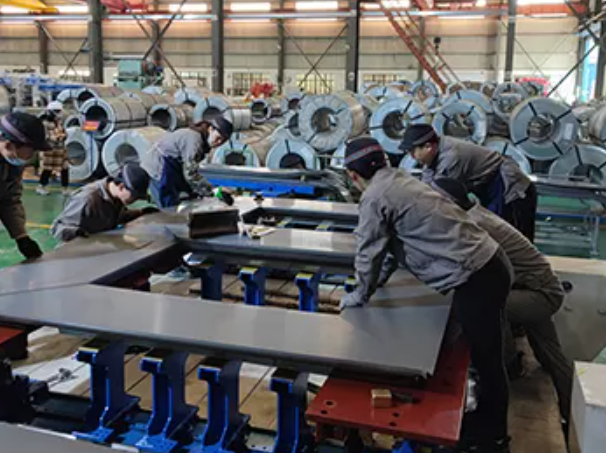

The core is the backbone of a dry-type transformer’s magnetic circuit. It is typically constructed using laminated silicon steel, which helps reduce eddy current losses and magnetic hysteresis. These materials help ensure that the transformer operates with minimal energy loss and improves the overall energy efficiency. The core acts as a path for the magnetic flux created by the primary winding and ensures smooth energy transfer between primary and secondary windings.
The primary winding is connected to the electrical power source and carries the input current. When this current flows through the primary winding, it generates a magnetic field that is transferred through the core. This magnetic flux induces voltage in the secondary winding, which in turn powers the load. The number of turns in the primary and secondary windings determines the voltage conversion ratio. This allows dry-type transformers to either step up or step down voltage based on the system's needs.
Insulation is vital in preventing short circuits and ensuring safe energy transmission through the transformer. It separates the windings from each other and from the core, preventing direct contact and maintaining electrical isolation. Insulation also provides resistance to environmental factors such as moisture, dust, and temperature changes. Furthermore, high-quality insulation materials improve the transformer's ability to withstand heat, which is essential for its safe and efficient operation.
Common insulation materials used in dry-type transformers include:
● Polyester Varnish: This material is used for insulating windings, providing excellent durability, moisture resistance, and electrical properties.
● SG-200 Glastic Sheets: These sheets are used for additional structural support and heat resistance, offering improved mechanical strength.
● Dupont Nomex: A high-performance insulation material known for its excellent electrical insulation properties and resistance to high temperatures.
● GPO-3 Fiberglass: A durable and strong composite material that is often used for high-voltage insulation, offering both electrical and mechanical strength.
Natural convection is a passive cooling method where heat naturally rises as hot air moves upward, and cooler air descends. This process relies on the thermal buoyancy principle and helps regulate the transformer's temperature without the need for external energy. Cooling ducts and vents are designed within the transformer to promote airflow, ensuring that the rising hot air is replaced by cooler air, maintaining an optimal operating temperature.
Forced air cooling uses fans to actively circulate air around the transformer, promoting heat dissipation. This method is especially important for high-power transformers or when operating in environments where natural convection cooling alone is insufficient. By actively moving air over the transformer, forced air cooling ensures that the transformer maintains a consistent temperature, preventing overheating and ensuring long-term reliability.
The enclosure is designed to protect the internal components of the dry-type transformer from external elements like dust, moisture, dirt, and physical damage. It also ensures the transformer operates in a controlled environment, safeguarding the sensitive internal parts. Enclosures are typically made from metal or non-metal materials. Metal enclosures offer superior protection from corrosion and physical damage, while non-metallic enclosures are lighter and corrosion-resistant. The design of the enclosure also takes into account ventilation and ease of installation and maintenance.
In addition to protecting the transformer from environmental factors, the enclosure plays a crucial role in ensuring safety for personnel working around the transformer. It prevents direct contact with live electrical parts, reducing the risk of electrical shock. Safety features, such as proper grounding and sealing, make sure that the transformer operates safely, even in high-risk environments. The enclosure's protective design helps minimize accidents and ensures that personnel can work with the transformer without exposing themselves to hazardous conditions.
Terminals and bus bars are essential for establishing reliable electrical connections within a dry-type transformer. Terminals connect the transformer to the external electrical circuit, while bus bars distribute electrical power efficiently. Bus bars are designed to handle high-current applications, ensuring minimal energy loss. In industrial settings where large amounts of power are needed, bus bars are crucial for efficiently managing the high currents and preventing overloads.
Bushings are used to insulate and support the connection between the transformer's internal windings and external circuits. They extend through the transformer's enclosure, ensuring that electricity can flow safely out of the transformer while maintaining electrical isolation. Bushings prevent electrical leakage and enhance safety by isolating the transformer from external circuits.
The tap changer adjusts the transformer's voltage by changing the number of turns in the winding. This allows for voltage regulation, ensuring that the output voltage meets the system's requirements. By adjusting the winding turns ratio, tap changers enable efficient power delivery, even as load demands fluctuate. This feature is essential in optimizing power distribution, particularly in grids that require consistent voltage levels.
The grounding system is critical for the safety of the transformer. It prevents electrical faults by redirecting fault currents safely into the ground. This system reduces the risk of electrical shock, fire, and equipment damage. Key components, such as the grounding bus and surge arrestors, play a vital role in protecting the transformer. The grounding bus provides a low-resistance path for fault currents, while surge arrestors protect against voltage spikes that could harm the transformer.
Temperature sensors, like thermocouples, are used to monitor the transformer's internal temperature. These sensors track the temperature of the windings and core, ensuring they stay within safe operating limits. When the temperature exceeds a preset threshold, relays trigger alarms, activate shutdowns, or start cooling mechanisms to prevent overheating. This monitoring system plays a critical role in maintaining the transformer's efficiency and preventing potential damage.
All the parts of a dry-type transformer work together to ensure efficient, safe, and reliable performance. The core and windings form the heart of the transformer, allowing for efficient energy transfer by reducing energy losses. The insulation materials keep the system electrically isolated and prevent short circuits, while cooling mechanisms like natural convection and forced air cooling keep the temperature within safe limits.
The enclosure protects the transformer from external damage and ensures personnel safety by preventing contact with live parts. Terminals and bus bars ensure reliable electrical connections, especially in high-current applications, while bushings insulate and support the windings.
Proper maintenance of these components is critical to maintaining the transformer's efficiency and safety. Monitoring temperature, inspecting insulation, and checking for wear or damage help identify potential issues before they become critical. Regular maintenance ensures the transformer operates efficiently and reliably, extending its lifespan and preventing costly repairs or failures.
Dry-type transformers consist of key parts like the core, windings, insulation, and cooling mechanisms. These components work together to ensure energy efficiency, safety, and reliable performance. Proper maintenance and monitoring of these parts are essential for long-term functionality.
For further insights on dry-type transformers, welcome to consult JISCO for guidance on selection and maintenance.
A: The core is typically made from laminated silicon steel, which minimizes energy losses and improves efficiency by reducing eddy currents.
A: Forced air cooling uses fans to circulate air actively, while natural convection relies on thermal buoyancy, where hot air rises and cool air descends.
A: Insulation ensures electrical separation between components, preventing short circuits and enhancing both thermal and electrical performance for safe operation.
