Did you know temperature rise is a key factor in the performance and lifespan of dry-type transformers? Overheating can lead to serious damage, affecting efficiency.
In this article, we'll dive into what temperature rise means and why it's crucial for transformer health. You'll also learn about insulation classes and how to monitor and manage temperature rise effectively for optimal performance.

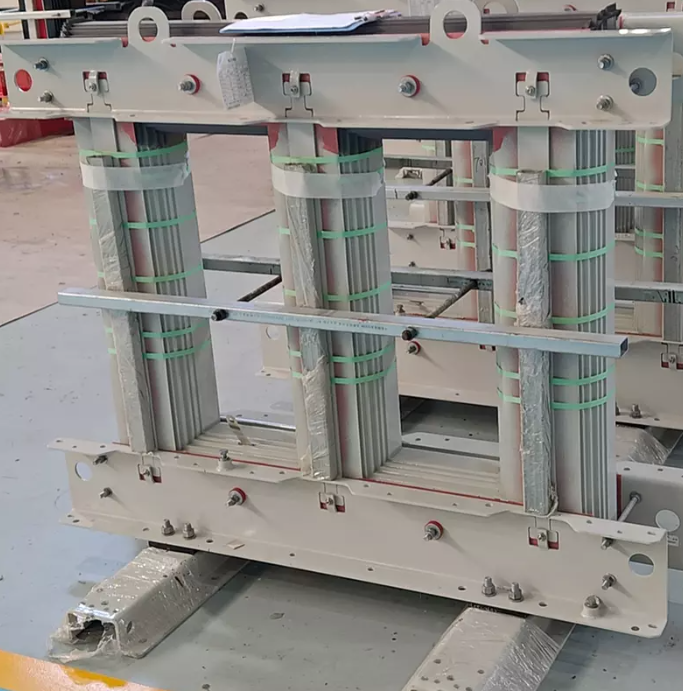

Temperature rise in a dry-type transformer is the increase in the windings' temperature above the ambient temperature during operation. This happens due to heat generated by resistance in the windings and core.
For instance, if the C-rise rating is 80°C and the ambient temperature is 40°C, the windings can safely reach 120°C.
Excessive heat can damage the transformer's insulation, leading to faults and shortening its lifespan. High temperatures also reduce transformer efficiency by causing energy losses. Poor temperature management can result in overheating and failure.
Transformer insulation is a critical component designed to prevent electrical faults by separating different electrical conductors. It helps maintain the safe operation of the transformer by providing electrical barriers between various parts, such as windings and the core. Insulation also plays a key role in heat dissipation, allowing the transformer to safely handle higher temperatures during operation.
The materials used for insulation determine the maximum temperature rise the transformer can withstand. They also influence the efficiency and reliability of the transformer. If the insulation is not able to handle the heat generated, it may break down, causing the transformer to fail.
Transformer insulation comes in various classes, each with a specific temperature limit that affects how much heat the transformer can handle before damage occurs. The most common insulation classes include:
● Class E Insulation: This insulation type can handle a maximum temperature rise of 75°C and is suitable for temperatures up to 120°C.
● Class F Insulation: Offers a higher limit, with a maximum rise of 100°C and operating temperatures of up to 155°C.
● Class H Insulation: This class allows the highest temperature rise of 125°C, with an operating temperature of up to 180°C.
Choosing the right insulation class is vital, as it depends on the transformer's intended use and the operating environment. For example, in hotter environments or where more energy is required, Class F or Class H insulation may be necessary to ensure the transformer's safe and efficient operation.
The C-rise (temperature rise) rating directly reflects a transformer's efficiency. A lower C-rise indicates a more efficient transformer, as it generates less heat during operation. The less heat it produces, the more energy it efficiently converts from input to output. Transformers with a higher C-rise tend to have greater energy losses, as they operate at higher temperatures, which reduces their efficiency.
When comparing transformers, those with low C-rise ratings are typically more efficient. They generate less heat, which translates into lower energy losses and better performance, especially in demanding conditions. In contrast, transformers with a higher C-rise rating often face greater heat buildup, leading to reduced efficiency.
Transformers with lower C-rise ratings tend to have higher overload capacities. This means they can handle temporary overloads without reaching unsafe temperatures. For example, a transformer rated at 80°C can tolerate up to 220°C insulation before it hits maximum operating temperature. This gives it more headroom during overload conditions.
However, transformers with higher C-rise ratings, such as those rated at 115°C or 150°C, have less flexibility to tolerate overloads. Their heat tolerance is lower, so they can't handle as much extra load before their temperature becomes unsafe. While these transformers may be cheaper upfront, they carry a greater risk of overheating when pushed beyond their rated limits.
A lower temperature rise contributes to a longer lifespan for dry-type transformers. Lower temperatures reduce the wear and tear on insulation, ensuring that it stays intact for a longer period. In fact, transformers with a low C-rise, like those rated at 80°C, can last up to 20 years or more when maintained properly.
Transformers with higher C-rise ratings, such as those rated at 115°C or 150°C, generally have a shorter lifespan. The extra heat they generate accelerates the aging process of components, particularly the insulation. For example, a transformer with a 150°C C-rise may experience a lifespan of only 10-15 years, compared to a transformer rated at 80°C.
Dry-type transformers come with different C-rise ratings, typically 80°C, 115°C, and 150°C. These ratings indicate the maximum increase in temperature above the ambient temperature that the transformer can safely handle during full-load operation.
● 80°C C-Rise: Common for highly efficient transformers, with minimal heat generation.
● 115°C C-Rise: A standard rating offering a balance between performance and heat tolerance.
● 150°C C-Rise: Used in transformers where higher heat generation is acceptable, typically for larger or outdoor applications.
Here’s a chart to help visualize how the temperature changes based on ambient temperature and C-rise rating:
Ambient Temperature (°C) | 80°C C-Rise | 115°C C-Rise | 150°C C-Rise |
40°C | 120°C | 155°C | 190°C |
30°C | 110°C | 145°C | 180°C |
25°C | 105°C | 140°C | 175°C |
To calculate the maximum temperature of a dry-type transformer, you need to add the C-rise value to the ambient temperature.
Step-by-Step Calculation:
1. Identify the C-rise rating: Choose the appropriate C-rise rating for your transformer (e.g., 80°C, 115°C, 150°C).
2. Know the ambient temperature: Determine the temperature of the environment where the transformer will operate (e.g., 40°C, 30°C, etc.).
3. Add the C-rise rating to the ambient temperature: For example, if the C-rise rating is 80°C and the ambient temperature is 40°C, the maximum operating temperature would be:
$$ \text{Maximum temperature} = \text{Ambient temperature} + \text{C-rise rating} = 40°C + 80°C = 120°C $$
Example Calculations:
● 80°C C-Rise: Ambient temperature 40°C → Maximum temperature = 120°C
● 115°C C-Rise: Ambient temperature 30°C → Maximum temperature = 145°C
● 150°C C-Rise: Ambient temperature 25°C → Maximum temperature = 175°C
Monitoring the temperature of a dry-type transformer during operation is crucial to prevent overheating. If the temperature rises too much, it can lead to insulation failure, reducing the transformer's lifespan and causing potential system failures.
There are several systems available to monitor transformer temperature:
● Mechanical Gauges: Traditional and simple, they provide a visual indication of the temperature, but require manual reading.
● Electronic Controllers: These devices are more advanced and can be programmed to trigger alarms or shut down the system if the temperature exceeds safe limits.
● Thermal Imaging: This method allows for non-contact temperature measurement. Thermal cameras can detect hot spots and monitor temperature changes in real-time.
Effective temperature control strategies can help manage the heat produced by transformers:
● Improving Ventilation: Proper airflow around the transformer is essential to dissipate heat. Ensuring the transformer has enough space and is not obstructed by nearby objects helps maintain optimal cooling.
● Cooling Systems: Some transformers benefit from additional cooling methods, like cooling fans or liquid-based cooling systems.
● Load Adjustment: Reducing the transformer’s load or adjusting its operational patterns can also prevent overheating. For instance, running the transformer during cooler hours or reducing the demand can help manage the temperature rise.
Choosing the right cooling system depends on your transformer’s size, load, and installation environment:
● Air Cooling (Natural or Forced): For most dry-type transformers, air cooling is sufficient. Natural air cooling relies on convection, while forced air uses fans to circulate air around the transformer.
● Cooling Fans: Adding fans to the transformer can help cool the unit more efficiently, especially in environments with poor airflow.
In some cases, additional cooling may be necessary, especially for high-load or large transformers. If the transformer operates in an enclosed or poorly ventilated space, additional cooling systems may be required to prevent excessive heat buildup.
Overheating in dry-type transformers can result from various internal factors:
● Core and Winding Losses: These occur due to electrical losses in the core and windings. When the transformer operates, energy is lost in the form of heat because of resistance in the materials.
● Insulation Degradation: Over time, insulation materials can break down due to heat and electrical stress, making it less effective at protecting the transformer. This increases the risk of short circuits and overheating.
● Damaged or Worn-out Components: When internal components, like the windings or core, become worn out or damaged, they cannot perform efficiently. This leads to increased resistance, causing more heat and contributing to the overheating problem.
Each of these internal causes can disrupt normal operation and result in higher temperatures, reducing the transformer's lifespan.
External factors also play a significant role in transformer overheating:
● Poor Ventilation: If the transformer is installed in a confined space with inadequate airflow, heat will accumulate around the unit, increasing the risk of overheating. Proper airflow is crucial to keep the temperature in check.
● Cooling System Failure: Many transformers use fans or other cooling systems to regulate temperature. If these systems fail, the transformer can quickly overheat. Regular maintenance checks are needed to ensure cooling systems are operational.
● Environmental Conditions: Extreme temperatures or high humidity in the environment can also affect a transformer's ability to dissipate heat. For example, operating a transformer in a hot, humid area can push its temperature beyond safe limits.
Proper installation and regular maintenance are key to avoiding external overheating causes. Ensuring sufficient ventilation and regular checks of the cooling systems can prevent many of these issues.
Regular inspections and testing are crucial to keep transformers operating efficiently and prevent overheating. Monitoring temperature rise during these checks helps detect any issues before they worsen. Predictive maintenance techniques like thermal imaging can spot hot spots in the transformer, allowing for timely repairs and preventing critical failures.
Proper installation is vital for maintaining safe transformer temperatures. Ensure the transformer is installed in an area with sufficient ventilation and airflow to avoid heat buildup. Keep the installation space clear of obstructions, and ensure that air can circulate freely to help regulate the temperature effectively.
Managing the load is key to controlling transformer temperature rise. Overloading the transformer generates excessive heat, leading to overheating. To prevent this, balance the load efficiently across transformers, monitor load fluctuations, and reduce the load during peak hours or high temperatures to avoid exceeding safe temperature limits.
Understanding dry-type transformer temperature rise is crucial for maintaining efficiency, safety, and lifespan. Proper insulation, temperature monitoring, and effective management of temperature rise play a key role in ensuring optimal performance. To maintain long-term reliability, it's important to choose the right insulation, monitor temperature regularly, and manage load effectively. For personalized guidance, welcome to reach out to JISCO for transformer selection and maintenance advice.
A: Common temperature rise ratings for dry-type transformers are 80°C, 115°C, and 150°C, depending on the insulation class. These ratings help determine how much the transformer’s temperature can safely increase above the ambient temperature.
A: Regular maintenance, ensuring proper ventilation, and managing load effectively are key to preventing overheating. Monitoring temperature and using cooling systems can also help.
A: Unmonitored temperature rise can lead to insulation failure, reduced lifespan, and potential overheating. Regular monitoring helps prevent damage and ensures safe operation.
A: Inspect transformers regularly, ideally every six months, to monitor temperature and check for potential issues. Use predictive maintenance methods like thermal imaging for early detection.
