Steel slitting is a crucial process in the manufacturing world, shaping materials for various industries. From automotive to construction, it's used to create precise steel strips. In this post, we'll explore what steel slitting is, its benefits, and why it plays such an important role in industries worldwide.
Steel slitting is the process of cutting wide steel coils into narrower strips or coils. This technique is essential for creating the right material dimensions for industries like automotive, construction, and manufacturing. It helps shape steel to meet the exact needs of various projects.
Steel slitting allows manufacturers to produce materials in customized widths, avoiding the need for additional processing. By cutting steel efficiently, it reduces time and labor costs, making it a vital part of the production process.
Steel slitting has come a long way. In the past, methods like using band saws or cut-to-length machines were slow and labor-intensive. As demand grew for faster and more precise methods, technology advanced.
The development of high-speed slitting lines revolutionized the process. Modern machines, like razor slitters, cut steel with precision, increasing speed and reducing waste. Today, slitting lines can process coils quickly, handling materials of various strengths and thicknesses, and offering high-precision cuts for industries around the world.
Steel slitting is a highly efficient process that involves cutting wide steel coils into narrower strips. It begins by uncoiling the large steel coils and feeding them through the slitting line. The steel is maintained under tension throughout to ensure smooth feeding and precise cutting.
Here's a detailed breakdown of the steel slitting process:
Loading the Coil onto the Decoiler
The process starts by placing the steel coil onto a decoiler. This machine unwinds the coil, straightening it as it feeds into the slitting line. The decoiler helps maintain consistent tension throughout the process.
Feeding the Coil Through the Slitting Line
Once the coil is uncoiled, it's fed into the slitting line, where tension is carefully controlled. The coil moves through the line with the exact tension needed to prevent any distortion during cutting.

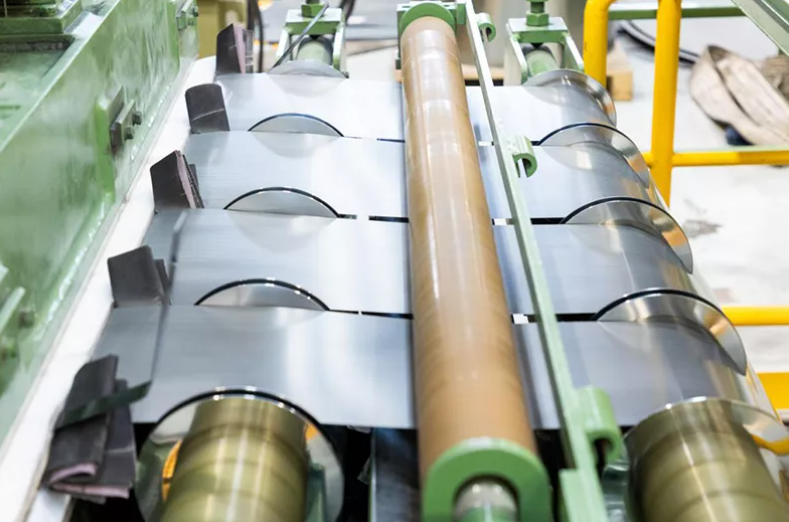

Cutting the Coil with Rotary Slitting Blades
In this step, rotary slitting blades slice the coil into narrower strips. The slitting blades rotate at high speeds, making clean cuts and ensuring minimal material loss. These blades are designed to cut precisely, allowing for high-quality strips with tight tolerances.
Final Steps: Edge Trimming and Packaging
After the slitting process, the steel strips may need edge trimming to remove any unevenness or imperfections. The final products are then recoiled or cut to length and packaged. The finished steel strips are carefully wrapped and shipped to customers for use in various industries.
Several types of equipment are used in steel slitting, each offering different capabilities suited to specific needs. Here are the most common types:
● Slitting Saws
Slitting saws are circular saws with hardened teeth. They're typically used for shorter production runs and are ideal for cutting thinner materials. While they may not be as fast or precise as other options, they are cost-effective for specific applications.
● Rotary Shear Slitters
These slitters use rotating blades that operate in a scissor-like motion to slice through steel coils. They offer clean, accurate cuts with no saw teeth marks, making them suitable for higher-quality steel strips.
● High-Speed Steel Razor Slitters
High-speed steel razor slitters are the most advanced and commonly used in modern slitting lines. These machines feature carbide blocks with razor blades that make high-speed, precise cuts. They are capable of handling high-strength steels and produce a smooth, clean edge. Razor slitters are ideal for high-volume slitting operations that demand both speed and precision.
Longitudinal slitting involves cutting a wide steel coil lengthwise into narrower strips. The cutting direction is parallel to the original length of the coil, producing strips of various widths. This method is widely used because it provides efficient and continuous cutting.
Uses of Longitudinal Slitting
Longitudinal slitting is essential in industries like roofing and automotive manufacturing. It produces materials for roofing panels, structural components, and car parts. The ability to create precise, custom widths makes it ideal for high-volume production in these sectors.
Crosscut slitting is the process of cutting coils or sheets into shorter, more manageable lengths. The cutting direction is perpendicular to the original coil, creating individual sheets or small strips.
Applications of Crosscut Slitting
This method is used when creating smaller sheets for packaging or parts manufacturing. It's perfect for situations that require exact, short material lengths, like making smaller components or packaging materials.
Differences Between Longitudinal and Crosscut Slitting
● Direction of Cut: Longitudinal slitting cuts parallel to the coil’s length, while crosscut slitting cuts perpendicular.
● Purpose: Longitudinal slitting is used for producing long strips for construction or automotive industries. Crosscut slitting is better for creating shorter, more specific material lengths for packaging and small parts.
Steel slitting is a highly cost-effective process compared to traditional methods like shear cutting or sawing. It minimizes time and labor, making it cheaper for large-scale production.
For example, slitting a 40,000-pound coil into 10 slit coils takes less than an hour, while shearing the same amount of material could take 8 to 10 hours. This time difference translates to significant cost savings.
One of the major benefits of steel slitting is the ability to provide custom widths tailored to customer needs. This flexibility reduces the need for further processing or material adjustments.
Industries such as automotive and construction rely heavily on custom slitting to meet their specific requirements. Whether it's for making precise car body parts or construction materials, customized widths are essential for efficiency and quality.
Modern slitting machines offer incredibly tight tolerances, which is crucial for high-precision applications. These machines can deliver exact dimensions, ensuring that the material fits perfectly in automated processes like stamping or machining.
For example, slit-edge squareness, which is often under .010″ per inch of coil width, ensures that the material will be accurate when used in stamping presses or CNC machines, reducing the need for further adjustments.
Steel razor slitting machines provide smooth, clean cuts with minimal deformation. This clean finish is important, especially for thinner gauges, as it maintains the material's integrity.
A smooth edge also helps preserve the material's corrosion resistance. With less deformation from mechanical processes, the final product is more durable and better suited for industries where quality and longevity are important.
In the automotive sector, steel slitting is crucial for producing custom strips used in car body parts and components. These steel strips are often designed to meet precise specifications, ensuring the right fit for manufacturing processes. Whether it's for making body panels, chassis, or structural parts, slitting provides the flexibility to create high-quality materials for vehicles.
Steel slitting plays a key role in the construction industry, especially for materials like roofing sheets and structural components. Slitted steel coils are turned into metal sheets of various widths, which are then used in building frames, roofing, and other structural elements. This ensures the materials are ready for immediate use in large-scale construction projects.
In the appliances and manufacturing industries, steel slitting is used to produce parts for household appliances and machinery. From refrigerator parts to industrial machines, slitting helps create precision materials needed for assembly. The ability to customize widths and thicknesses ensures that manufacturers get the exact steel strips they require for efficient production.
Modern steel slitting lines are equipped with cutting-edge technology, such as razor slitters, servo motors, and programmable control systems. These advancements allow for faster, more efficient operations, making it possible to cut through high-strength materials with precision.
High-speed slitting lines have revolutionized the process, increasing productivity by handling large volumes of material in less time. With faster speeds and better control, these machines also help reduce lead times, ensuring quicker delivery for customers in need of high-quality slitted steel.
Automation plays a crucial role in the steel slitting process, enhancing both precision and consistency. Automated systems ensure that cuts are made with minimal human intervention, reducing errors and improving overall efficiency.
The latest technologies improve quality control by maintaining consistent tolerances across each strip. Automated slitting lines can quickly adjust settings to account for material variations, ensuring that every piece meets the required specifications. This results in high-quality, reliable products for industries relying on precision materials.
Steel slitting offers significant benefits, including cost savings, precision, and customizability. It also provides clean, smooth finishes, which are crucial for high-quality materials. In modern manufacturing, steel slitting plays a vital role. It helps industries produce precise, reliable steel strips essential for various applications, from automotive to construction.
JISCO has years of experience in Slitting Coils. Therefore, If you have any questions about Slitting Coils, feel free to contact us anytime for more information.
A: The time for slitting depends on the coil size and complexity. Slitting a 40,000-pound coil can take less than an hour, while shearing the same weight might take 8-10 hours.
A: Yes, steel slitting can be used for various types of steel, including high-strength materials. The process can be adjusted for different thicknesses and strengths to meet specific requirements.
A: Slitting involves cutting coils lengthwise into narrow strips, while shearing cuts steel into shorter lengths. Slitting is used for continuous strips, while shearing is for fixed-length sheets.
