Transformer cores are integral parts of electrical transformers, responsible for facilitating the transfer of energy between the primary and secondary windings through electromagnetic induction. They enable the conversion of electrical voltage and help in the efficient transmission of energy. The Dry Type Transformer Core is a specific category of transformer cores that is particularly popular due to its design that eliminates the need for oil-based cooling, making it more environmentally friendly and safer. This article will delve into the various components of a Dry Type Transformer Core, explaining their roles and how they contribute to the overall functionality and efficiency of a transformer.
A transformer core is the central part of a transformer that carries the magnetic flux between the primary and secondary windings, enabling the conversion of electrical energy. Transformer cores are generally made from high-quality magnetic materials that help in the conduction of magnetic flux with minimal loss. In the case of a Dry Type Transformer Core, the core is typically made from laminated steel sheets that are insulated from each other to reduce energy losses due to eddy currents.
The design and composition of a transformer core are crucial because they directly affect the efficiency, performance, and lifespan of the transformer. Whether it's a Dry Type Transformer Core or another type, understanding the various components that make up the core is essential for optimizing transformer performance.

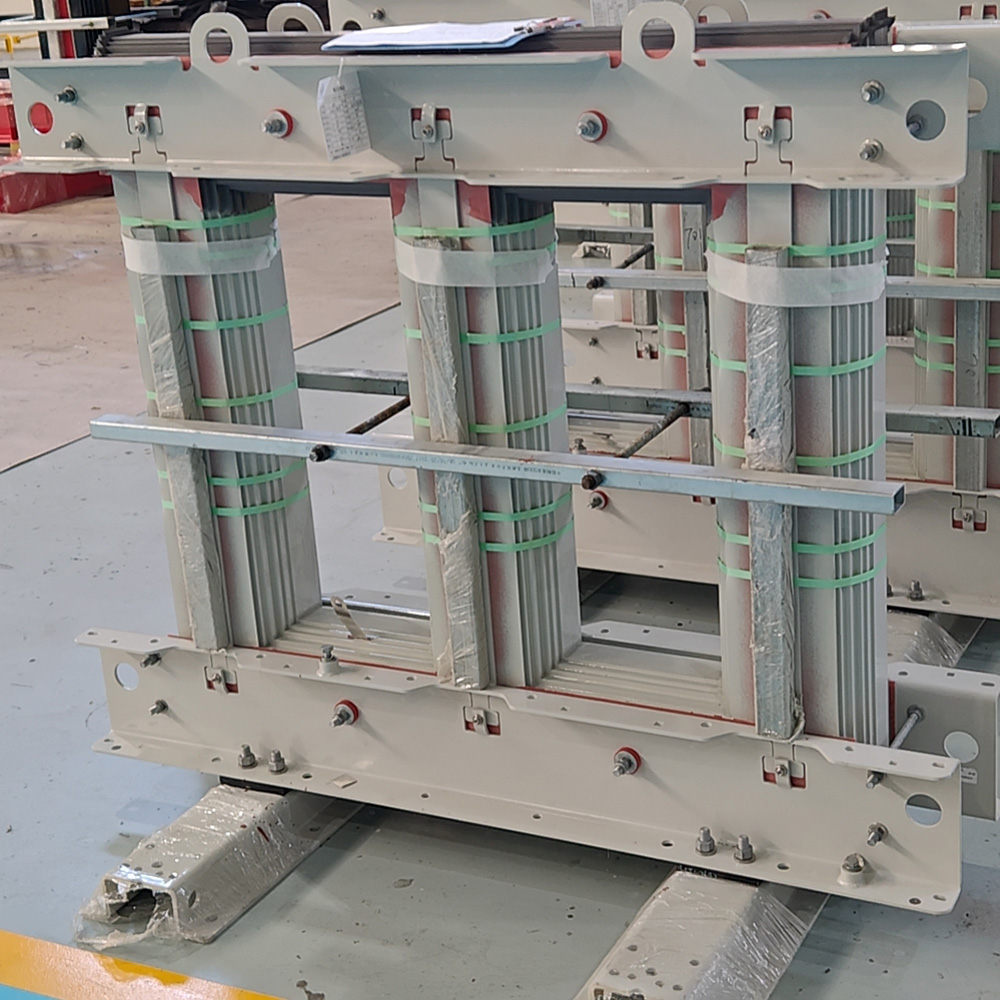

The core is the primary component of a transformer. It is made of thin sheets of high-quality grain-oriented steel, which are stacked together to form the magnetic path. The core provides a low-reluctance path for the magnetic flux, ensuring efficient energy transfer between the primary and secondary windings. In Dry Type Transformer Cores, the steel sheets are carefully laminated to minimize eddy current losses.
The core can come in two main types:
Core-Type: In this design, the windings surround the core. The core acts as a central component that facilitates magnetic flux between the primary and secondary windings.
Shell-Type: Here, the core surrounds the windings. This design provides better mechanical strength and energy containment, making it suitable for high-power transformers.
Both core types are important in different transformer applications, with the Dry Type Transformer Core often using the shell-type design to ensure better efficiency and safety, especially in urban areas where fire risks must be minimized.
Windings are another critical component in transformers. These are typically made from copper or aluminum and are insulated from each other and from the core. The windings are responsible for receiving electrical energy from the input circuit (primary winding) and delivering it to the output circuit (secondary winding).
The number of turns in each winding determines the voltage step-up or step-down ratio of the transformer. The configuration of windings affects the transformer’s current rating, impedance, and temperature rise. Insulation materials like cellulose, resin, or pressboard are used to ensure that the windings are electrically isolated from the core and other components. For Dry Type Transformer Cores, the insulation must also be robust enough to withstand high temperatures.
Insulation plays a vital role in transformer cores by protecting the windings and core from electrical shocks and preventing short circuits. High-quality insulation is necessary to ensure that the transformer can operate safely and efficiently. Materials such as cellulose (paper and pressboard), transformer oil, and resin are commonly used for insulation purposes.
The insulation must possess certain characteristics:
Dielectric Strength: The ability to resist electrical breakdown.
Mechanical Strength: To withstand physical stress and ensure the transformer’s durability.
Thermal Stability: To handle high temperatures that may be generated during the operation of the transformer.
The insulation materials used in Dry Type Transformer Cores must also be resistant to moisture and able to dissipate heat efficiently to avoid overheating.
The tank of a transformer provides mechanical protection to the core and windings. It is made from steel or aluminum and ensures that the internal components are shielded from external damage. In Dry Type Transformer Cores, the tank is designed to be leak-proof and insulated to prevent electrical shock. Additionally, the tank serves as a housing for transformer oil (if applicable in certain designs) and helps with heat dissipation.
Terminals are used to connect the transformer to external circuits. These are mounted on bushings, which are insulating devices made from porcelain or epoxy resin. Bushings provide a secure pathway for electrical conductors between the terminals and windings. In Dry Type Transformer Cores, the bushings are critical in preventing any electrical leakage while maintaining the structural integrity of the transformer.
Although Dry Type Transformer Cores do not require oil-based cooling, some transformers still use transformer oil for insulation and cooling purposes. The oil helps to dissipate heat, insulating the windings and core. It also acts as a fault detection system, as any breakdown in the oil's properties can signal a problem within the transformer.
The transformer oil used must have specific properties, such as a high flashpoint (around 310°C) and a density of 0.96 kg/cm³. These properties ensure that the oil performs effectively over long operational periods without posing safety risks.
The oil conservator is a cylindrical tank mounted on top of the main tank, allowing space for the transformer oil to expand and contract due to temperature changes. It ensures that the oil remains at a consistent level throughout the operation. The oil conservator is also equipped with a Buchholz relay that helps detect internal faults, such as a buildup of gases, which could indicate problems with the transformer’s operation.
The breather is another key component that absorbs moisture from the air to prevent it from entering the transformer oil. In Dry Type Transformer Cores, the breather helps maintain the integrity of the insulating oil and prevents water ingress, which could cause internal faults.
Cooling is essential in transformers, as it helps prevent overheating and ensures efficient operation. Dry Type Transformer Cores often use natural air convection for smaller units. However, larger transformers rely on forced cooling methods, such as radiators and fans, to maintain the temperature. Proper cooling improves transformer efficiency and longevity by preventing excess heat buildup.
An explosion vent is a safety device that helps release oil and gases if excessive pressure builds up inside the transformer. This prevents catastrophic failures and ensures the safe operation of the transformer. Explosion vents are typically mounted above the oil conservator and include a diaphragm that controls the release of gases.
Tap changers are devices used to adjust the output voltage of the transformer. There are two main types of tap changers:
De-Energized Tap Changers (DETC): These are used to adjust the voltage when the transformer is not under load.
On-Load Tap Changers (OLTC): These allow voltage adjustments while the transformer is in operation, without interrupting the load.
Tap changers are especially important for Dry Type Transformer Cores, as they help maintain consistent voltage levels under varying load conditions.
The Buchholz relay is an essential safety feature in oil-immersed transformers. It detects internal faults by sensing the gases produced when the transformer oil breaks down. The relay triggers an alarm or trip circuit to prevent further damage to the transformer.
CRGO steel is considered the “gold standard” material for transformer cores due to its high permeability and low hysteresis loss. It is widely used in Dry Type Transformer Cores to improve efficiency by reducing energy losses. The grain structure of CRGO steel helps minimize energy losses and enhances magnetic properties.
Amorphous steel is used for energy-efficient transformers due to its low no-load losses. It is ideal for applications requiring low energy consumption, such as renewable energy systems. However, amorphous steel is more expensive and less durable compared to traditional materials like CRGO steel.
Nanocrystalline materials offer extremely high permeability and thermal stability, making them ideal for high-frequency applications like energy storage systems and data centers. These materials are also used in Dry Type Transformer Cores to enhance transformer efficiency and performance.
The core and yoke work together to ensure that the magnetic flux remains contained within the core material, improving energy efficiency. The high-quality materials and design of the Dry Type Transformer Core ensure minimal energy losses during operation.
Cooling systems, such as radiators and fans, help maintain optimal temperatures for transformer operation. Proper insulation, such as breather devices and oil conservators, ensures that the transformer remains moisture-free, further enhancing its longevity and reducing maintenance requirements.
The components of a Dry Type Transformer Core work in harmony to ensure efficient energy transfer, voltage conversion, and long-term transformer reliability. Understanding these components—such as the core, windings, insulation, and cooling arrangements—helps optimize transformer performance and reduces operational costs. At Shanghai Jisco, we specialize in providing high-quality transformer cores that meet the demands of modern energy systems. Our precision-engineered Dry Type Transformer Cores are designed to enhance efficiency, durability, and safety in various applications. For more information or to consult with us about your transformer needs, contact Shanghai Jisco today.
