Did you know that dry-type transformers are revolutionizing the electrical industry with their safety, efficiency, and environmental benefits? These transformers are becoming increasingly popular due to their unique features.
In this article, we'll explain what dry-type transformers are, how they work, and the key benefits they offer. You'll also learn about their applications and how they compare to traditional oil-filled transformers.
A dry-type transformer is an electrical device that uses air to cool its components instead of oil or other liquids. This makes it safer and more environmentally friendly, as there's no risk of oil leaks. These transformers are commonly used in indoor applications, such as in commercial buildings, hospitals, and schools, where fire safety and environmental concerns are critical.
● Cast Resin Dry Type Transformer (CRT): This transformer uses a resin-based insulation system, making it resistant to high humidity and fire risks. It's often used in areas where fire hazards are a concern, such as in industrial environments or densely populated spaces.
● Vacuum Pressure Impregnated Transformer (VPI): These transformers are designed for outdoor installations, especially in high-temperature environments. They are impregnated under a vacuum, ensuring better insulation and protection against external conditions.

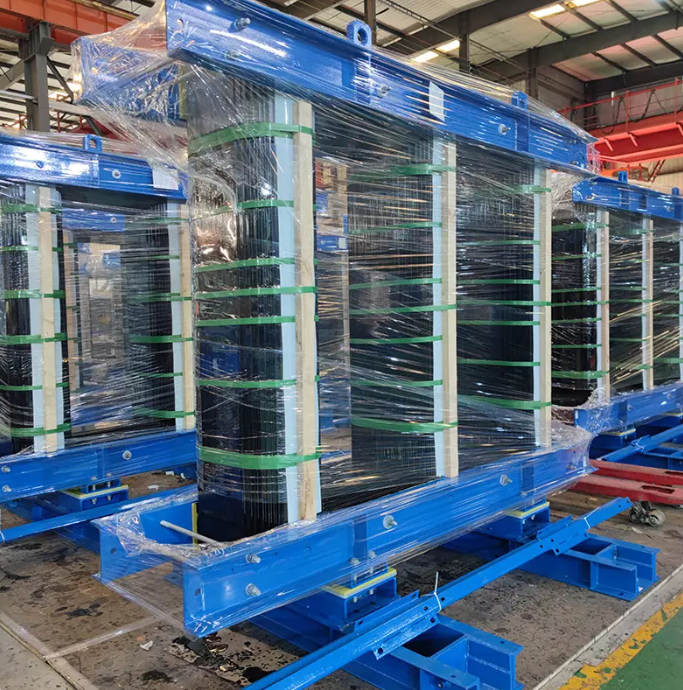

● Core: The core is made from high-quality magnetic material, typically silicon steel, designed to efficiently transfer energy from the primary to the secondary windings.
● Windings: Dry-type transformers use copper or aluminum windings. Copper is more efficient but more expensive, while aluminum is lighter and more cost-effective. These windings play a crucial role in converting voltage levels.
● Insulation: The windings are insulated with materials like polyester varnish or epoxy resin, providing electrical isolation and protection against overheating. These materials also help ensure the transformer's longevity.
● Cooling Systems: Dry-type transformers rely on either forced air or natural convection to dissipate heat. Forced air cooling uses fans to push air through the transformer, while natural convection allows heat to rise naturally, relying on the ambient air temperature.
● Electromagnetic Induction: In a dry-type transformer, alternating current (AC) flows through the primary winding, creating a magnetic field. This magnetic field induces a voltage in the secondary winding, following the principle of electromagnetic induction. The voltage is then either stepped up or stepped down depending on the winding ratio.
● Heat Dissipation: Dry-type transformers rely on air cooling to prevent overheating. Heat is naturally dissipated through convection, with the transformer's surface area allowing the heat to escape into the surrounding air. Some models use forced air cooling, where fans circulate air around the transformer to improve heat dissipation.
Dry-type transformers differ from traditional oil-filled transformers in the cooling and insulation methods. Instead of using oil for cooling and insulation, dry-type transformers use air, which makes them safer and more environmentally friendly. The absence of oil eliminates the risk of leakage or fire hazards.
● Advantages of Dry-Type Transformers:
○ Safety: Without oil, dry-type transformers are less prone to fire or leaks.
○ Environmental Impact: No oil means no risk of contamination, making these transformers ideal for environmentally sensitive areas.
○ Maintenance: Dry-type transformers require less maintenance since they don't need oil monitoring or replacement.
● Reduced Fire Hazards: One of the biggest advantages of dry-type transformers is their inherent safety. Unlike oil-filled transformers, which use flammable liquids for cooling and insulation, dry-type transformers rely on air. This significantly reduces the risk of fire, especially in high-risk environments like densely populated buildings and industrial sites.
● No Leakage Risk: Dry-type transformers are sealed and do not use oil, eliminating the risk of spills or leaks that can be harmful to the environment. This makes them a safer and more reliable option, particularly in areas where liquid leaks could be disastrous, such as in chemical plants or areas with sensitive equipment.
● Eco-Friendly Design: Dry-type transformers are more environmentally friendly than their oil-filled counterparts. Since they don't contain oil, there's no risk of contamination or disposal issues. This makes them a better choice for applications where environmental concerns are a top priority, such as in green buildings or eco-conscious communities.
● Reduced Maintenance: Without the need for oil changes or regular monitoring of fluid levels, dry-type transformers require less maintenance. This not only lowers maintenance costs but also reduces downtime, ensuring continuous operation in mission-critical systems like hospitals, data centers, and factories.
● Energy Savings: Dry-type transformers are designed to operate with high efficiency, minimizing energy losses during power conversion. This is particularly important in large electrical systems where even small energy losses can add up. Their efficiency ensures optimal performance and cost savings over time.
● Longer Lifespan: The robust construction of dry-type transformers, combined with the use of high-quality materials, contributes to a longer service life. These transformers are built to withstand challenging conditions and operate smoothly for many years. As a result, they require fewer replacements, saving on both capital and maintenance expenses.
● Indoor Installations: Due to their safer operation, dry-type transformers are ideal for indoor installations in a variety of buildings, including offices, schools, hospitals, and shopping centers. Their fire-resistant nature makes them the preferred choice in places where fire safety is a primary concern.
● Outdoor Applications: While dry-type transformers are often used indoors, they can also be suitable for specific outdoor environments. When enclosed in protective casings, they can withstand harsh weather conditions, making them an excellent choice for remote locations, industrial sites, or renewable energy installations like wind and solar farms. This versatility ensures they are effective in a wide range of scenarios.
● Power Rating (kVA): The power rating determines how much load the transformer can handle. To choose the right transformer, calculate the total load your system will need and select a transformer with a matching or slightly higher power rating. This ensures the transformer operates efficiently without overloading.
● Voltage Rating: It's crucial to match the transformer's voltage rating with your system's voltage requirements. Using a transformer with an incorrect voltage rating can lead to system inefficiency, equipment damage, or safety issues. Always check the primary and secondary voltage requirements before making a selection.
● Temperature Rise: Different transformers have different temperature rise ratings, such as 80°C, 115°C, or 150°C. Selecting the right insulation class affects how well the transformer handles heat during operation. A higher temperature rise allows for higher operating temperatures but may reduce the transformer's lifespan. Choose a transformer that matches the environmental conditions and load patterns.
● Space and Environment: Proper installation is key to ensuring efficient transformer operation. Ensure the installation site provides adequate ventilation to allow airflow for cooling. Make sure there's enough space around the transformer for air circulation and temperature control to prevent overheating.
● Indoor vs. Outdoor Use: Dry-type transformers are typically used indoors, but some can also be used outdoors when properly protected. If your transformer will be placed outdoors, choose a model that is designed for outdoor conditions, such as one with protective casings or extra insulation to handle the elements. For indoor installations, ensure the transformer is in a location with controlled temperature and good airflow.
● Buildings and Data Centers: Dry-type transformers are commonly used in commercial buildings, data centers, and hospitals because of their safety features and environmental benefits. Their fire-resistant design and lack of oil make them ideal for spaces where safety is a priority. Additionally, their low maintenance and ability to operate efficiently in confined spaces make them a preferred choice.
● Industrial Settings: Dry-type transformers are also used in industrial applications such as factories, chemical plants, and renewable energy systems. They can handle the demanding conditions often found in these environments, including higher temperatures and increased load demands. Their robustness and reliability are key factors in these settings, where performance is crucial.
● Wind and Solar Power: Dry-type transformers play an important role in connecting renewable energy sources like wind and solar power to the electrical grid. Their eco-friendly design and ability to function in various weather conditions make them perfect for renewable energy applications. These transformers help ensure that the energy generated by wind and solar systems can be safely and efficiently integrated into the grid.
Dry-type transformers offer significant benefits, including safety, environmental friendliness, high efficiency, and durability. They are widely used in commercial, industrial, and renewable energy applications due to their versatility.
For personalized advice on choosing and maintaining dry-type transformers, welcome to consult JISCO to ensure the best fit for your needs.
A: Typical temperature rise ratings for dry-type transformers are 80°C, 115°C, and 150°C. These ratings determine the maximum safe operating temperature. Higher ratings allow for more heat but can reduce the transformer's lifespan.
A: Yes, dry-type transformers can be used outdoors, but they must be properly enclosed in protective casings to safeguard them from environmental conditions like moisture and temperature extremes.
A: Regular inspections should be done every 6-12 months, especially if the transformer operates under heavy loads or in challenging conditions.
