Transformers are essential components in modern electrical systems, used for stepping up or stepping down voltage levels to facilitate efficient power transmission. At the heart of every transformer lies the transformer core, which plays a crucial role in transferring and storing magnetic energy. Over the years, laminated transformer cores have become the standard in the industry due to their superior efficiency and reliability. This article will explore the reasons why transformer cores are laminated, focusing on the benefits this design brings to Dry Type Transformer Cores, their efficiency, and performance in various applications.
A transformer core is the magnetic element in a transformer that helps facilitate the transfer of electrical energy between the primary and secondary windings through electromagnetic induction. The core provides a low-resistance path for magnetic flux, ensuring that the energy is efficiently transferred from one coil to another. Dry Type Transformer Cores, in particular, are used in transformers that do not require oil-based cooling systems, making them ideal for use in environments that demand safety, such as urban areas or enclosed spaces.

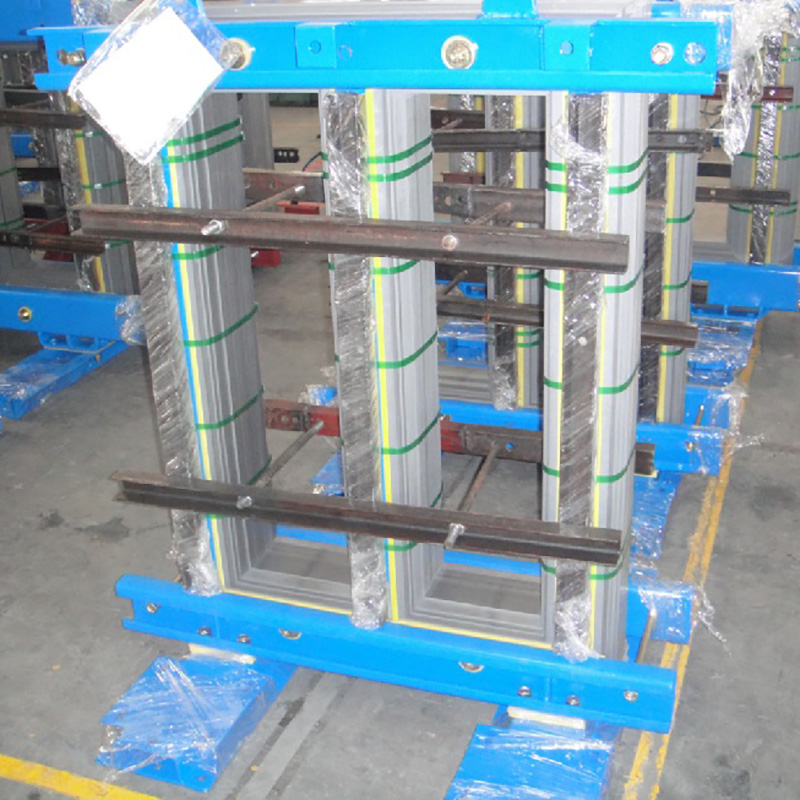

While transformer cores have historically been made from solid metal, modern designs primarily use laminated cores. The lamination of transformer cores is a key process that helps minimize energy losses, improve performance, and extend the lifespan of the transformer. Laminated cores are constructed by stacking thin sheets of magnetic steel, each insulated from the others. This innovative design brings numerous advantages, particularly in Dry Type Transformer Cores where heat management and energy efficiency are critical.
Eddy currents are circular currents induced in conducting materials when they are subjected to a changing magnetic field. These currents flow in loops within the core material, generating heat and causing significant energy loss. This is particularly problematic in transformer cores, where efficiency is critical for optimal performance.
The main benefit of lamination is that it drastically reduces the formation of eddy currents. In laminated cores, thin sheets of steel are stacked with insulating layers between them, which prevents the eddy currents from circulating across the entire core. By segmenting the path for the magnetic flux, lamination restricts the flow of these currents, reducing energy loss and improving the overall efficiency of the transformer. Dry Type Transformer Cores with laminated designs are particularly effective in reducing this type of loss, making them a preferred choice for modern transformers.
Hysteresis loss refers to the energy consumed during the magnetization and demagnetization cycles of the core material when exposed to an alternating current. This type of loss is proportional to the area of the hysteresis loop of the material, meaning that materials with larger hysteresis loops will experience higher energy losses.
Lamination of the transformer core helps minimize hysteresis losses by reducing the size of the magnetic path. Laminations create smaller magnetic loops, which lower the flux density and help reduce the amount of energy lost to hysteresis. Furthermore, Dry Type Transformer Cores typically use high-quality materials such as silicon steel, which have a narrow hysteresis loop, further enhancing their efficiency and reducing energy loss.
Magnetic permeability is the ability of a material to conduct magnetic flux. Transformer cores with high magnetic permeability are essential for ensuring that the energy transfer between the primary and secondary windings is efficient. Laminated cores improve magnetic permeability by aligning and localizing the magnetic flux path within each lamination.
The use of laminated designs in Dry Type Transformer Cores also helps minimize leakage flux, which is the flux that does not contribute to energy transfer between the windings. By reducing leakage flux and improving coupling between the primary and secondary coils, laminated transformer cores maximize power transfer and improve the overall efficiency of the transformer.
In any electrical system, managing heat is a key factor in maintaining efficiency and longevity. Laminated transformer cores help improve thermal management by reducing the amount of heat generated during operation. Since lamination minimizes eddy current and hysteresis losses, less heat is produced in the core material. The increased surface area created by the laminations also allows for better airflow, which helps dissipate heat more efficiently.
Dry Type Transformer Cores benefit from this thermal management, as they do not rely on oil cooling systems, which can add complexity and maintenance costs. By utilizing laminated cores, these transformers are able to operate at lower temperatures, improving their performance and extending their service life.
Laminated cores provide mechanical strength and stability to the transformer. The tightly pressed laminated sheets form a solid structure that supports the windings and helps maintain their alignment. The segmented nature of laminated cores also absorbs mechanical stresses and vibrations, preventing deformation or failure of the core.
This structural integrity is essential for the reliable operation of transformers, particularly in high-power applications where mechanical forces are more pronounced. Dry Type Transformer Cores are especially susceptible to mechanical stress, making the strength and stability provided by laminations crucial for their performance.
One of the lesser-discussed benefits of laminated transformer cores is their ability to reduce noise and vibrations. Transformers can produce a significant amount of noise, often referred to as magnetostriction noise, caused by vibrations in the core material due to the expansion and contraction of the magnetic field. This noise can be disruptive in environments where quiet operation is essential.
The insulation between the laminations acts as a barrier to the propagation of vibrations, effectively reducing the amount of noise generated by the core. By minimizing the vibrations that lead to sound, laminated cores help ensure that Dry Type Transformer Cores operate quietly, making them ideal for use in residential, commercial, and urban settings.
Another significant advantage of laminated transformer cores is their design flexibility. The lamination process allows manufacturers to customize the core's thickness, material, and geometry to meet specific performance requirements. This flexibility enables Dry Type Transformer Cores to be tailored for a wide range of applications, from small residential transformers to large industrial power systems.
The ability to fine-tune these parameters allows for the optimization of transformer performance, improving efficiency, reducing energy losses, and ensuring that the transformer meets the necessary operational standards.
Laminated transformer cores are not only more efficient but also more cost-effective to manufacture compared to solid core designs. Thin steel sheets can be mass-produced and laminated in a scalable process, which reduces material waste and lowers production costs. This makes laminated cores an ideal choice for transformers in large-scale applications.
The cost-effectiveness of Dry Type Transformer Cores with laminated cores also extends to their maintenance. These cores typically experience lower rates of wear and tear due to reduced heat generation, meaning that they require less frequent servicing and repair, ultimately lowering the overall lifecycle costs of the transformer.
Laminated transformer cores are an essential feature in modern transformers, offering a wide range of benefits, including reduced eddy current and hysteresis losses, improved magnetic properties, better thermal management, enhanced mechanical strength, and noise reduction. These advantages make laminated cores an ideal choice for Dry Type Transformer Cores, which require high efficiency, reliability, and performance in environments that demand safety and quiet operation.
At Shanghai Jisco, we specialize in providing high-quality Dry Type Transformer Cores that meet the latest industry standards for energy efficiency, reliability, and durability. Our precision-engineered cores are designed to maximize performance and minimize energy loss, helping our clients optimize their transformer systems for long-term success. For more information on how our laminated Dry Type Transformer Cores can benefit your project, contact Shanghai Jisco today.
