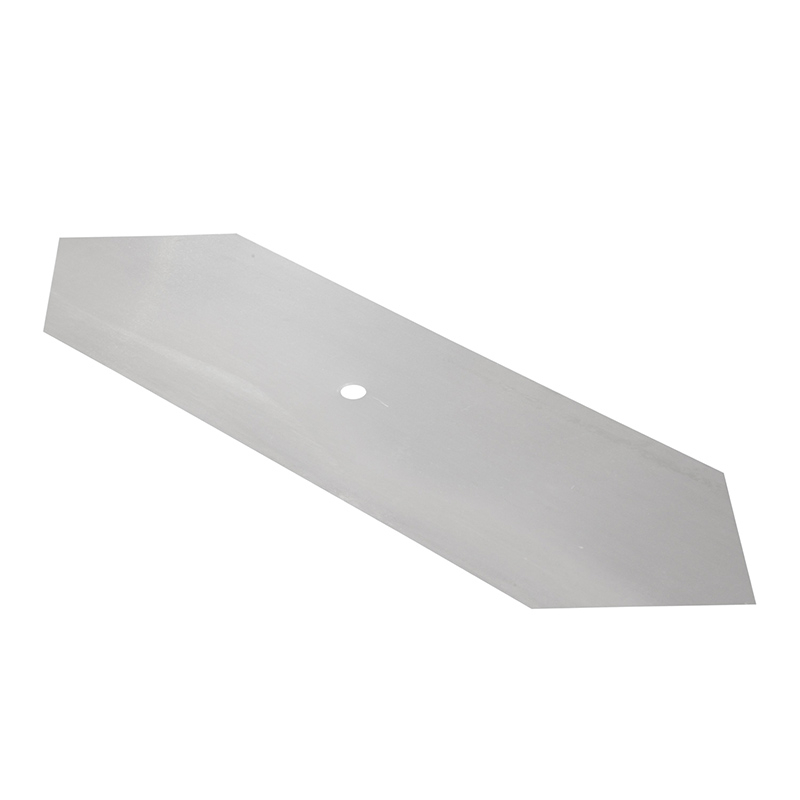

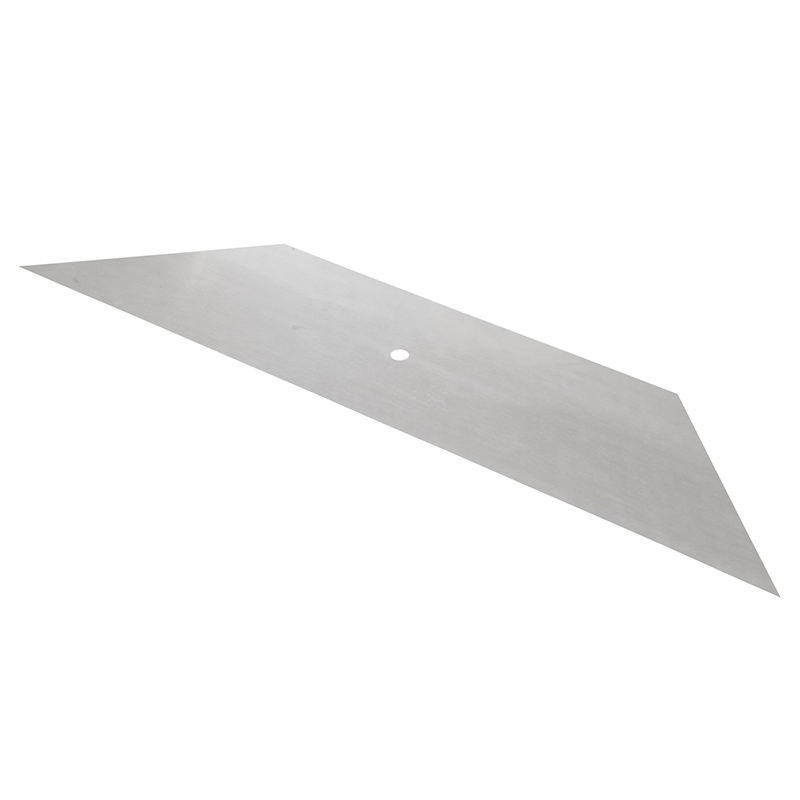

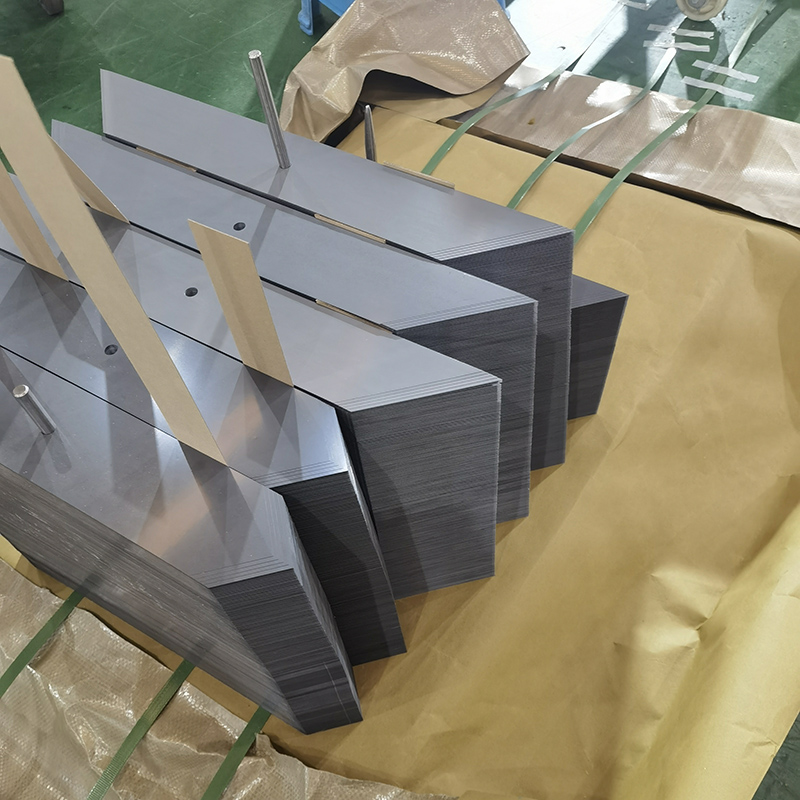

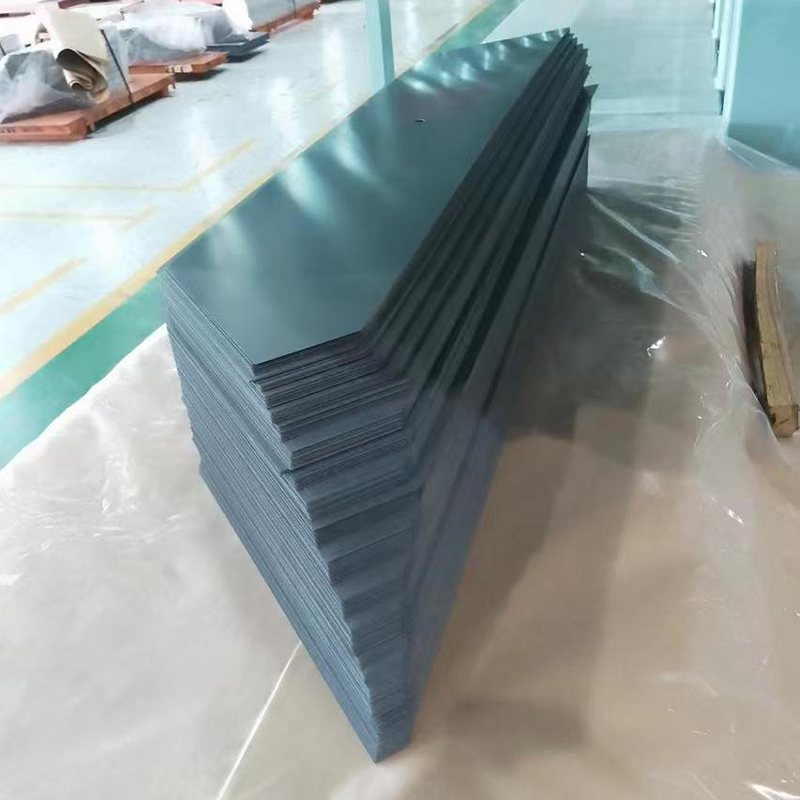

The procedure involves taking a coil or sheet of grain-oriented or non-grain-oriented electrical steel and using specialized equipment to cut it into individual pieces called laminations. These laminations are designed to fit together with minimal air gaps when stacked, forming a solid but layered core structure. The layering (or lamination) helps reduce eddy current losses within the core by limiting the flow of induced currents that can cause energy loss as heat.
Shearing: Using shears to cut straight lines.
Punching: Employing dies and punches to create custom shapes.
Laser Cutting: Utilizing laser technology for high precision cutting.
Water Jet Cutting: Cutting with a high-pressure stream of water, sometimes with an abrasive additive.
Plasma Cutting: Using a plasma torch to cut electrically conductive materials. Characteristics of CGO Oriented Silicon Steel
Grain Orientation: The material has a preferred crystallographic orientation, specifically aligned along the rolling direction, which greatly enhances its magnetic properties in that direction.
High Permeability: CGO silicon steel exhibits high magnetic permeability, especially in the direction of grain orientation, which facilitates efficient magnetic flux management.
Low Core Losses: Due to its unique grain structure, it has lower core losses compared to non-grain-oriented types, contributing to improved efficiency and reduced heat generation in applications like transformers.
Magnetic Anisotropy: It displays strong magnetic anisotropy, meaning its magnetic properties vary significantly with direction, being optimal in the rolling direction.
Thin Thickness: Typically manufactured to very thin gauges through cold rolling processes, allowing for more laminations per unit volume in transformer cores, which helps reduce eddy current losses.
Surface Insulation Coating: To minimize eddy currents, which can cause energy losses, the steel sheets are coated with an insulating layer during the manufacturing process.
Q1: What are cutting laminations?
A1: Cutting laminations refers to the precise cutting of thin sheets of metal, usually silicon steel, into specific shapes that will be stacked together to form the core of electrical devices such as transformers, motors, and generators. This process is crucial for minimizing energy losses due to eddy currents within the device's core.
Q2: Why is it important to cut laminations precisely?
A2: Precise cutting ensures that laminations fit together tightly with minimal air gaps, which reduces magnetic flux leakage and improves the efficiency of the magnetic core. It also helps in maintaining the mechanical integrity of the core during operation.
Q3: What materials are typically used for laminations?
A3: The most common material for laminations is silicon steel, chosen for its superior magnetic properties. Other materials may include nickel-iron alloys or non-grain-oriented steels, depending on the application requirements.
Q4: What methods are used to cut laminations?
A4: Various methods can be employed for cutting laminations, including shearing, punching, laser cutting, water jet cutting, and plasma cutting. Each method offers a balance between precision, cost, and production speed.
