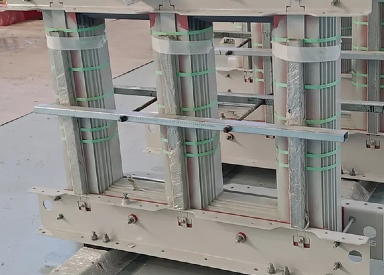

The dry type transformer core plays a vital role in modern power distribution and energy applications. It is the heart of the transformer, responsible for ensuring efficient magnetic flux transfer, stable operation, and long-term reliability. As industries, commercial buildings, and renewable energy systems continue to expand, the demand for safe, durable, and eco-friendly transformer solutions is growing rapidly. The dry type transformer core stands out in this field because it combines high efficiency with minimal maintenance requirements. Beyond its technical role, the core also supports safety, environmental protection, and cost efficiency, making it a preferred choice for a wide range of installations. Its features highlight not only engineering excellence but also its adaptability to the evolving needs of today’s electrical infrastructure.
One of the most critical features of the dry type transformer core is the use of high-quality materials. Most cores are manufactured from premium-grade silicon steel laminations, which are carefully processed to achieve low iron loss levels, often less than or equal to 0.75 W/kg. This characteristic is essential because reduced core loss directly translates into improved energy efficiency, lowering both operating costs and energy wastage.
Another benefit of silicon steel is its high magnetic permeability. This means the material allows magnetic flux to pass through with minimal resistance, increasing the transformer’s overall efficiency and ensuring reliable performance even under heavy load conditions. For industrial facilities and power distribution networks, this capability is crucial because it guarantees consistent power delivery without unnecessary energy loss.
Durability is also a defining characteristic of the material used in dry type transformer cores. The laminations are resistant to corrosion, mechanical stress, and environmental degradation. Unlike ordinary steel, silicon steel is specifically engineered to handle the demanding conditions of electrical systems, where constant thermal cycling and magnetic fluctuations are present. This robustness significantly extends the service life of the transformer, reducing the frequency of replacements and repairs.
By choosing superior materials, manufacturers ensure that dry type transformer cores not only meet but often exceed international efficiency standards. This provides end users with confidence that their equipment will operate reliably, safely, and efficiently for decades.
Another standout feature of the dry type transformer core is its environmentally friendly design. Unlike oil-immersed transformers, which rely on liquid coolants to regulate temperature, dry type transformers do not require oil or other cooling fluids. This design eliminates the risks associated with leaks, spills, and contamination. As a result, the transformer is safer to operate in sensitive environments where environmental protection is a priority.
For example, in hospitals, schools, office buildings, and shopping centers, avoiding the possibility of oil leaks is critical. An oil-filled transformer carries risks of fire hazards and environmental damage in case of leakage, but a dry type core eliminates those risks entirely. This not only improves safety but also reduces the need for constant monitoring of fluid levels and leak prevention measures.
The eco-friendly design of dry type transformer cores makes them a sustainable option for modern infrastructure. As industries and governments push toward green energy and reduced carbon footprints, equipment that minimizes environmental impact becomes more valuable. Dry type transformers align perfectly with these goals, offering an alternative that supports both reliable energy distribution and eco-conscious operations.
In addition, the absence of oil means that dry type transformer cores require less specialized maintenance. They do not need periodic oil sampling, replacement, or disposal, all of which carry environmental challenges. This simplified design reduces lifecycle costs while promoting sustainability.
Ultimately, the eco-friendly nature of dry type transformer cores provides peace of mind to facility managers and engineers, knowing that their equipment is safe, sustainable, and compliant with environmental standards.
Space efficiency is another key feature of the dry type transformer core. Thanks to its streamlined design, it can save up to 30% more space compared to traditional transformer cores. This compact structure is particularly advantageous in urban environments and commercial buildings, where available space for electrical infrastructure is often limited.
The lightweight design further enhances its practicality. Dry type transformer cores are easier to transport, handle, and install than their oil-immersed counterparts. This reduces logistical challenges, cuts down installation time, and lowers labor costs. For large-scale projects, such as city substations or commercial towers, these benefits can translate into significant savings in both time and resources.
Another advantage of the compact structure is its adaptability to different applications. Whether it is installed in a high-rise office building, a manufacturing plant, or a renewable energy facility, the dry type transformer core can be integrated seamlessly into the existing layout. Its reduced size and weight make it possible to install in places where traditional transformers would be impractical or impossible.
For example, in underground substations or small technical rooms within commercial complexes, the reduced footprint of dry type cores ensures optimal use of space while still delivering the required power capacity. This makes them an excellent solution for modern cities where space optimization is a priority.
The combination of compactness and lightweight design provides not only functional benefits but also cost advantages. Easier handling reduces the risk of damage during transportation and installation, further enhancing the overall reliability and efficiency of the system.
Electrical insulation is a vital aspect of transformer design, and dry type transformer cores excel in this area. They are equipped with high-quality resin-based insulation systems, which protect the windings and core from electrical faults, moisture, and thermal stress. This insulation ensures superior electrical performance, making the transformer safe and reliable under varying operating conditions.
The resin insulation system provides several critical benefits. First, it enhances fire safety by reducing the risk of combustion, a concern that is often present in oil-immersed transformers. Second, it provides excellent resistance to moisture, which is particularly important in humid or damp environments. This allows dry type transformers to be installed in locations where oil-filled transformers would be unsuitable, such as basements or coastal areas.
Additionally, the robust insulation extends the operational life of the transformer. By protecting the windings from mechanical damage and electrical surges, the system minimizes the risk of failures. This results in reduced downtime, fewer unexpected outages, and lower maintenance costs for facility operators.
From an operational perspective, the strong insulation system means that the transformer can handle fluctuating loads and environmental stresses without compromising performance. This reliability is especially valuable for industries and facilities that depend on a continuous power supply, such as manufacturing plants, hospitals, and data centers.
By ensuring safety, durability, and high performance, the insulation system of dry type transformer cores plays a central role in their overall reliability and long-term value.
The features of the dry type transformer core clearly demonstrate why it has become the preferred choice for today’s power distribution systems. Its superior material selection ensures outstanding efficiency, long-term durability, and stable performance under demanding operating conditions. The eco-friendly, oil-free design not only prevents leakage and environmental risks but also aligns with global sustainability goals. In addition, its compact and lightweight structure saves installation space and reduces transport costs, making it ideal for urban and commercial applications. Combined with a robust insulation system that enhances safety and reduces downtime, the dry type transformer core delivers excellent value in terms of reliability, cost savings, and environmental responsibility.
For industries and facilities seeking advanced and sustainable power solutions, partnering with a trusted manufacturer is essential. Shanghai JISCO Electrical Technology Co., Ltd. specializes in high-quality dry type transformer cores and offers customized solutions to meet diverse application needs. To explore more about their innovative products or to discuss tailored options for your projects, we recommend reaching out directly to Shanghai JISCO Electrical Technology Co., Ltd. for professional support and consultation.
