Minimizing the heat-affected zone during silicon steel laser cutting requires optimizing pulse parameters, using high-pressure nitrogen assist gas, maximizing cutting speed, and integrating dynamic beam shaping to prevent thermal degradation of magnetic domains.
Thermal Dynamics of Silicon Steel Laser Processing
Fundamentals of the Heat-Affected Zone in Motor Laminations
Primary Causes of Excessive Heat Accumulation During Laser Cutting
Essential Strategies to Minimize HAZ in Silicon Steel Cutting
Impact of HAZ on Electrical Steel Magnetic Performance
Advanced Beam Profiling and Ultrafast Laser Processing Solutions
Quality Inspection and Testing Methods for Motor Core Prototypes
Laser cutting relies on focused photonic energy to melt and vaporize thin metal sheets, which are then cleared from the kerf by high-pressure assist gas. Non-grain-oriented and grain-oriented electrical steels contain critical silicon additions, typically between two percent and three and a half percent. This chemical composition enhances electrical resistivity and reduces magnetostriction, but it alters thermal conductivity and melt pool behavior during thermal processing.
When a fiber laser beam impacts the surface of silicon steel, energy absorption depends heavily on laser wavelength, peak power, and local material surface reflectivity. As heat conducts radially outward from the kerf centerline, it creates a steep thermal gradient. In non-oriented sheets, rapid heating and cooling cycles near the cut edge disrupt grain structures and introduce localized residual stresses. In specialized magnetic applications, utilizing advanced Laser-oriented Silicon Steel provides optimized domain structures that demand strict thermal management to preserve baseline loss values.
Managing the balance between energy input and heat dissipation dictates kerf geometry, dross formation, and edge quality. If the thermal input exceeds the rate of material removal, excess thermal energy conducts deeper into the adjacent metal matrix, expanding the thermal degradation zone and increasing core losses in final prototype assemblies.
The heat-affected zone is the non-melted region of metal that undergoes altered microstructural properties, mechanical strength, and magnetic performance due to high-temperature laser exposure.
In motor lamination manufacturing, edge quality impacts final assembly efficiency. Heat input from laser cutting triggers grain boundary migration, recrystallization, and mechanical stress within a narrow region along the cut line. This microstructural alteration changes magnetic domain mobility, increasing hysteresis loss when exposed to alternating magnetic fields.
Beyond internal microstructural shifts, excessive thermal exposure damages insulating organic or inorganic coatings on electrical steel sheets. Coating degradation increases the risk of eddy current bridges between stacked lamination layers, leading to unwanted heat build-up and reduced overall motor torque efficiency.
Excessive heat accumulation during laser processing stems from improper laser parameter selection, suboptimal motion control profiles, and ineffective assist gas application.
Continuous wave lasers maintain constant energy output throughout the cutting path. If processing speeds are set too low, the linear energy density increases significantly. This excessive energy input allows thermal energy to transfer deeper into the surrounding material rather than concentrating purely on localized material removal.
Assist gases cool the cut edge and clear molten metal from the kerf channel. Using oxygen triggers an exothermic reaction with iron, introducing additional thermal energy that expands the thermal damage zone. Insufficient gas pressure allows molten slag to linger along the bottom edge, creating a continuous heat source that worsens microstructural damage.
When using pulsed laser modes, incorrect pulse width, low repetition rates, or high duty cycles limit inter-pulse cooling. Uncontrolled heat accumulation causes the material temperature to rise steadily, resulting in thermal profiles that rival continuous wave cutting modes.
Focusing the laser beam above or below the ideal focal plane broadens the effective spot size. A wider beam decreases energy density, requiring higher power levels or slower feed rates to achieve a complete cut through the sheet thickness.
Controlling thermal damage requires balancing laser parameters, nozzle geometries, assist gas selection, and path optimization strategies.
Using nanosecond, picosecond, or femtosecond pulsed laser sources minimizes thermal diffusion by delivering peak power over extremely short durations.
Microsecond Pulsing: Reduces overall heat compared to continuous wave operation, suitable for standard prototypes with medium tolerances.
Nanosecond Pulsing: Delivers high peak power with limited heat diffusion, creating clean cut edges on thin electrical steel sheets.
Picosecond and Femtosecond Pulsing: Enables cold ablation by vaporizing material faster than heat can conduct into the matrix, yielding precise cut lines with virtually zero thermal damage.
High-pressure inert gas delivery is critical for cooling the cut edge and ejecting liquid metal from the kerf channel.
Pure Nitrogen Purging: Operating at pressures between 12 bar and 20 bar prevents oxidation reactions and cools the cut edge, leaving a clean, slag-free boundary.
Argon Gas Application: Reserved for highly reactive alloys, argon offers strong thermal shielding, though nitrogen remains the primary cost-effective choice for electrical steel processing.
Advanced Nozzle Calibration: Using supersonic coaxial nozzles maintains uniform gas flow across the cut front, reducing turbulence and preventing molten metal from re-attaching to the sheet edge.
Modern CNC motion controllers automatically adjust laser power output based on real-time cutting head velocity, preventing localized heat build-up along tight corners and complex geometries.
Corner Power Ramping: Automatically lowers laser power during cornering deceleration to prevent burn marks at geometric transitions.
High Linear Processing Speeds: Elevating processing speeds reduces interaction time between the laser beam and the substrate material.
Burst Mode Pulse Delivery: Delivers rapid sequences of short pulses separated by cooling intervals, clearing material efficiently without elevating baseline material temperatures.

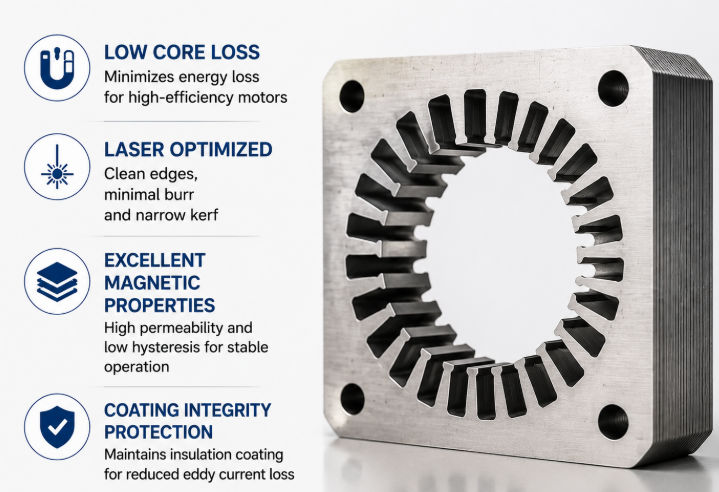

Using thin, high-permeability sheet materials like Laser-oriented Silicon Steel with optimized pulse sequences preserves core magnetic efficiency while maintaining the strict geometric tolerances required for advanced motor core development.
Thermal alterations along cut edges introduce local mechanical stresses and microstructural changes that degrade key soft magnetic properties.
The heat-affected zone pins magnetic domain walls, requiring greater magnetizing energy to flip magnetic domains during alternating field cycles. This domain wall pinning increases hysteresis loss along lamination edges, elevating overall core losses in finished motor stator and rotor assemblies.
Thermal stresses alter the crystallographic lattice alignment in electrical steel, reducing relative magnetic permeability near the cut line. This drop in permeability forces motor designs to consume higher excitation currents to achieve target air-gap flux densities.
High thermal processing temperatures burn away thin insulating surface coatings. When uncoated lamination edges are stacked, adjacent sheets make direct metallic contact, creating conductive paths for interlaminar eddy currents that drive up parasitic power losses.
Advanced beam delivery systems distribute photonic energy evenly, reducing peripheral thermal conduction into the surrounding material matrix.
Standard Gaussian laser beams exhibit a high central energy peak flanked by wide energy tails. The low-energy wings fall below the material vaporization threshold, conducting heat into the substrate and expanding the thermal damage zone. Installing diffractive optical elements reshapes the beam into a top-hat profile with steep intensity drops at the edges. This uniform distribution ensures all delivered energy contributes directly to vaporization, eliminating peripheral heat accumulation.
Water-jet guided laser technology couples a continuous laser beam into a low-pressure, hair-thin water jet. The water stream acts as a fluid optical waveguide while providing immediate cooling to the cut edge. This continuous fluid flush clears molten material instantly and keeps the surrounding metal cold, suppressing grain growth and heat propagation.
Femtosecond laser sources deliver laser pulses shorter than the material's electron-phonon coupling time. Energy is transferred directly to electrons before lattice vibrations occur, causing the material to transition directly from solid to plasma. This process removes material cleanly without heat conduction, producing sharp edges that preserve baseline magnetic domain structures.
Verifying thermal management strategies requires systematic metallurgical analysis and electromagnetic testing on cut lamination samples.
Etched cross-sections viewed under optical magnification reveal the structural transition line between processed edges and unaffected base metal. Electron backscatter diffraction provides detailed crystallographic maps, displaying localized grain orientation changes and strain fields along the cut margin.
Thermal stress and microstructural shifts increase local material hardness near cut edges. Taking a series of Vickers microhardness measurements from the cut edge inward generates a distinct hardness profile. The point where microhardness levels settle back to baseline material values defines the true boundary of the heat-affected zone.
Stacking laser-cut laminations into standard Epstein frames or single sheet testers allows direct measurement of total core losses, permeability curves, and excitation current requirements across operational frequencies. Comparing these metrics against baseline un-cut sheets quantifies overall performance degradation, providing clear feedback to refine laser parameter selection.
Minimizing the heat-affected zone during electrical steel laser cutting requires careful control over thermal input and material response. Transitioning from continuous wave cutting to ultrafast pulsed laser processing reduces peripheral heat conduction, preserving crystalline structures and surface insulation coatings. Utilizing inert assist gases at high pressures cools cut edges efficiently while ejecting molten metal before thermal damage spreads into the material matrix.
Implementing beam shaping optics, top-hat energy profiles, and adaptive feed-rate power scaling eliminates localized thermal accumulation along complex geometric contours. Finally, validating cut quality using optical metallography, microhardness profiling, and electromagnetic testing ensures prototype motor cores maintain tight mechanical tolerances and low core losses, accelerating the transition from initial design concepts to high-performance production electric motors.
