Oriented electrical steel is an indispensable soft magnetic alloy engineered through precise cold rolling and recrystallization heat treatments to develop a highly directional Goss texture 110 001 crystal orientation. This crystallographic alignment allows magnetic domains to align effortlessly along the rolling direction, yielding exceptional magnetic flux density, superior magnetic permeability, and minimized specific core loss under alternating magnetic fields. The strategic control of grain growth yields large, oriented grains that minimize domain wall pinning sites across the steel strip length.
Electrical core designers rely on high grade silicon steel to carry magnetic flux efficiently while minimizing eddy current and hysteresis losses. The incorporation of approximately 3 percent silicon increases electrical resistivity, suppressing micro eddy currents across individual lamination sheets. Advanced manufacturing techniques utilize surface domain refinement such as thermal or laser scribing to break down magnetic domains into narrower sub domains, further suppressing total power loss under high operating frequencies. The narrow domain spacing restricts excessive wall motion velocity during ac magnetization cycles.

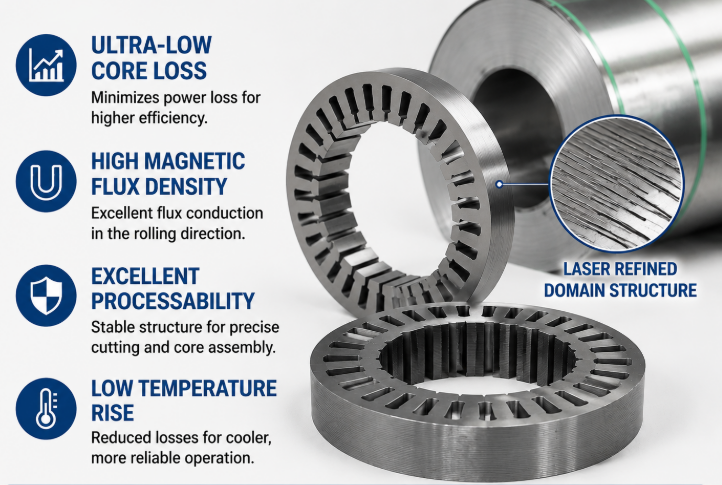

When selecting raw materials for demanding prototype builds, engineers frequently integrate premium Laser oriented Silicon Steel lamination stocks. This advanced alloy class features specialized laser refined magnetic domains that deliver exceptionally low watt per kilogram loss values while sustaining structural stability during high speed laser cutting and core assembly. The refined domain structure provides superior tolerance against mechanical stress variations near cut boundaries.
Goss Texture Alignment: Tailored crystallographic orientation optimized for unidirectional flux conduction, delivering higher induction levels at low magnetizing forces.
High Electrical Resistivity: Elevated silicon content increases bulk resistivity to dramatically suppress intra lamination eddy current losses.
Domain Structure Refinement: Micro scribing treatments reduce magnetic domain wall spacing, lowering anomalous eddy current losses during high frequency cycles.
Low Coercivity: Narrow hysteresis loop response allows high frequency reversal with minimal thermal dissipation inside active magnetic cores.
Oriented electrical steel serves as the foundational core material for modern global electrical power infrastructure, energy generation units, high efficiency transformers, and advanced electromechanical actuators. Its unique anisotropic magnetic performance ensures maximum power transformation efficiency across high voltage transmission networks, industrial step down substations, renewable power inverters, and specialized high torque propulsion motors. Modern power electronics demand magnetic core materials that balance saturation magnetization with rapid thermal dissipation.
In power distribution and extra high voltage EHV grid systems, grain oriented silicon steel forms the stacked or wound magnetic cores of step up and step down transformers. Its high saturation induction minimizes transformer footprint, weight, and operational temperature rise. In industrial drive systems and high speed electric motor cores, thin gauge electrical laminations prevent core saturation and lower harmonic distortion under complex pulse width modulation PWM inverter supply signals. Maintaining high interlaminar resistance prevents circulating eddy current loops between stacked plates.
The transition toward zero emission transportation and industrial automation has accelerated the adoption of custom prototyped cores. Modern electric vehicle EV drive units, auxiliary motor units, wind turbine generators, and aerospace actuators mandate ultrathin lamination geometries cut with minimal thermal degradation. Utilizing high efficiency Laser oriented Silicon Steel enables rapid prototype validation of complex stator and rotor geometries without compromising magnetic flux paths or thermal management limits.
Power and Distribution Transformers: Core laminations constructed from grain oriented sheet deliver ultra low no load losses and high energy transmission efficiency.
Electric Vehicle Traction Motors: High frequency rotor and stator laminations require tight edge tolerance and pristine insulation layers for peak torque density.
Renewable Energy Systems: Solar inverter inductors and wind turbine power transformers utilize oriented core materials to withstand continuous grid load fluctuations.
Industrial High Speed Generators: Core assemblies engineered with thin gauge silicon steel sustain mechanical integrity and thermal stability at high rotational velocities.
Medical Imaging Systems: MRI power conditioning transformers demand zero hum, low loss magnetic core structures for high signal purity.
The global trajectory for electrical steel processing focuses heavily on extreme efficiency optimization, ultrathin gauge production, refined laser scribing, and fully automated prototyping workflows. As global energy standards continuously tighten, transformer manufacturers and electric motor OEMs demand core materials capable of achieving ultra low core loss metrics below 0.70 W per kg at 1.7T 50Hz without rising manufacturing overhead. Rapid prototyping solutions allow design verification without committing to expensive hard tooling production dies.
Future technical developments center around thinner gauge sheets dropping from traditional 0.35 mm and 0.27 mm down to 0.20 mm and 0.15 mm to restrict dynamic eddy currents in high frequency applications. Simultaneously, advanced laser scribing technology is evolving toward non contact, permanent domain refinement that survives stress relief annealing processes. Furthermore, sustainable green steel manufacturing initiative emphasizes reduced carbon emissions during steel melting, decarburization, and final coating operations. Green processing methods focus on closed loop hydrogen reduction furnaces and eco friendly organic insulation chemistry.
Technology Focus | Current Industry Standard | Future Technical Trend | Impact on Core Prototyping |
Lamination Thickness | 0.27 mm to 0.35 mm | 0.15 mm to 0.20 mm | Dramatically reduces high frequency eddy losses; demands ultra precise laser cutting. |
Domain Refinement | Thermal or Mechanical Scribing | Permanent Laser or Chemical Scribing | Retains refined magnetic domains post annealing; improves core efficiency by 8 to 15 percent. |
Surface Insulation | Standard Inorganic C5 Coating | Nanocomposite Environment Friendly Film | Higher dielectric strength, superior heat resistance, and enhanced laser cut stability. |
Prototyping Speed | Mechanical Stamping Dies | Direct Fiber Laser Profiling | Eliminates tooling lead time; enables rapid design iteration of complex core geometries. |
Laser cut edge profiling introduces concentrated thermal energy into silicon steel laminations, creating a localized Heat Affected Zone (HAZ) characterized by metallurgical phase transformation, mechanical stress buildup, and surface oxidation. The intense heat from the focused fiber laser beam locally melts the material, while thermal conduction alters the grain structure immediately adjacent to the kerf width. The resulting temperature gradient induces localized recrystallization and grain growth variations.
In electrical steel, the primary degradation within the HAZ involves residual tensile stress accumulation and crystal lattice disturbance. Mechanical and thermal stress perturbs the easy axis of magnetization 001 direction, creating local magnetic anisotropy variations. Consequently, domain wall motion is pinned by micro structural defects, causing localized hysteresis loss to increase exponentially near the cut boundary. In thin lamination stacks, cumulative HAZ degradation can increase total motor core iron losses by 10 to 25 percent if left unmanaged.
Domain Pinning and Permeability Drop: Residual thermal stresses induce dislocation networks that lock domain walls, increasing the coercive force required for magnetization.
Insulation Coating Breakdown: High localized temperatures volatilize or vaporize organic and inorganic surface insulation coatings, risking inter lamination short circuits.
Micro Burr Accumulation: Improper molten metal ejection leads to re solidified dross or burrs on the lower edge, lowering the core stacking factor.
Oxidation Layer Formation: Thermal reaction with ambient oxygen creates brittle iron oxide edge films that degrade overall interlaminar resistance.
Lattice Distortion: Rapid cooling cycles generate micro strain fields that alter local magnetic hysteresis loops near the cut edge.
Minimizing HAZ depth during motor core lamination cutting requires strict management of net heat input per unit length where Q equals power divided by cutting speed. Operating in high frequency short pulse modes or utilizing single mode fiber lasers with small spot sizes confines thermal diffusion while maintaining crisp edge geometries. Keeping total linear heat input below 0.05 Joules per millimeter ensures minimal sideways thermal conduction.
Selecting appropriate assist gas dynamic pressure plays an equally vital role in HAZ mitigation. High pressure nitrogen gas 12 to 18 bar acts as a mechanical expulsion agent, rapidly blowing molten metal away from the kerf before heat can conduct sideways into the silicon steel matrix. Nitrogen cutting also prevents edge oxidation, leaving clean, bright metallic boundaries that preserve lamination insulating properties. Coaxial nozzle designs maintain supersonic gas velocity through the cut channel for maximum melt clearing efficiency.
Laser Mode and Spot Size: Utilize TEM00 single mode fiber lasers generating a spot diameter between 20 micrometers and 40 micrometers to maximize power density and minimize total kerf width.
Pulse Frequency and Peak Power: Set pulse frequencies above 20 kHz with high peak power to promote keyhole ablation rather than conductive melting.
Cutting Speed: Maximize linear feed rates within stable processing windows to minimize thermal interaction time with the sheet material.
Assist Gas and Pressure: Deploy high purity 99.999 percent nitrogen at 14 to 16 bar to achieve instant melt ejection and oxidation free cut edges.
Focus Position: Set the focal point slightly above or on the top sheet surface 0.0 mm to plus 0.5 mm to maintain narrow top kerf and efficient gas flushing.
Nozzle Geometry: Utilize single layer conical nozzles with 1.2 mm to 1.5 mm orifice diameters for centered supersonic gas jet delivery.
Sustaining core efficiency requires choosing silicon steel grades with resilient surface insulation coatings that withstand laser thermal shock without flaking or blistering. Standard C5 inorganic coatings and specialized nanocomposite organic inorganic insulating films provide exceptional electrical resistance and high thermal breakdown thresholds during prototyping. Inorganic coatings maintain structural stability at temperatures exceeding 800 degrees Celsius.
During core stacking, intact edge insulation prevents inter lamination circulating eddy currents, which otherwise cause thermal hot spots and elevated core losses. Implementing gentle post cut cleaning, automated deburring, or low temperature stress relief annealing 750 to 800 degrees Celsius in protective atmospheres can fully restore magnetic permeability and eliminate residual thermal stresses induced during laser profiling. Post annealing in dry nitrogen hydrogen atmosphere completely relieves edge dislocations while preserving coating integrity.
Minimizing Heat Affected Zone (HAZ) depth in silicon steel laser cutting is vital for producing high efficiency motor core prototypes and transformer laminations. By leveraging high density, pulsed single mode fiber lasers, optimizing nitrogen assist gas dynamics, and utilizing premium laser oriented silicon steel lamination grades, engineers can achieve sub 20 micrometer HAZ boundaries, preserve surface insulation, and maintain peak soft magnetic properties across complex core geometries. Adopting these advanced laser processing strategies ensures rapid, high precision motor prototyping with uncompromised magnetic core efficiency.
