Section | Summary |
Fundamentals of Laser-Oriented Silicon Steel | Explains the physical domain refinement mechanism where localized laser irradiation reduces domain wall spacing, significantly lowering iron loss while retaining insulation coating integrity. |
Key Performance Advantages and Features | Details core loss reduction, superior permeability, minimal thermal impact on surface coatings, and long-term magnetic stability under high thermal environments. |
Laser Cutting vs. Traditional Mechanical Stamping | Compares non-contact laser precision processing with traditional mechanical shearing, highlighting edge burr prevention, strain relief, and dimensional tolerance accuracy. |
Manufacturing Process and Processing Technology | Outlines the sequence from cold rolling and grain alignment to online laser scribing, stress-relief annealing, and final lamination stacking. |
Comparative Analysis of Electrical Steel Grades | Presents structured technical comparisons between laser-refined steel, high-induction HIB grades, conventional CGO, low-noise LM grades, and heat-resistant variants. |
Industrial Applications in Power and Energy Systems | Explores practical deployments across power transformers, distribution networks, reactors, and specialized high-frequency magnetic devices. |
Selection and Procurement Guidelines for B2B Buyers | Highlights essential purchasing metrics including core loss targets, stacking factors, coating adhesion, and customization options. |
Laser-oriented silicon steel is a specialized grade of cold-rolled grain-oriented electrical steel that undergoes online laser domain refinement to narrow main magnetic domain spacing and minimize total core loss. The core mechanism relies on focused thermal energy applied transversely across the steel strip surface at precise intervals. This localized, rapid heating and cooling cycle introduces high-density dislocation lines and micro-plastic deformation within the crystal lattice, forcing large magnetic domains to subdivide into smaller sub-domains. Because total iron loss in electrical steel is dominated by hysteresis loss and eddy current loss, reducing the width of main magnetic domains shortens the distance domain walls must travel during alternating magnetization cycles. Consequently, dynamic eddy current losses drop significantly without degrading the overall magnetic induction of the material.
The application of high-energy laser beams represents a clean, non-contact refinement method that operates at impressive manufacturing speeds. Unlike mechanical grooving or chemical etching techniques, laser treatment precisely targets the substrate while keeping the protective inorganic insulating coating virtually untouched. The resulting steel sheet features lower dynamic magnetostriction, decreased magnetic noise, and exceptional energy conversion efficiency, making it the preferred raw material for modern eco-design transformers.

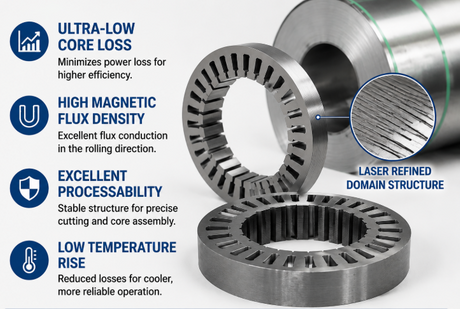

Domain Wall Spacing Reduction: Focused laser lines create localized thermal stress patterns perpendicular to the rolling direction. These stress lines act as new domain boundaries, splitting wide magnetic domains into tightly spaced parallel sub-domains.
Eddy Current Minimization: Dynamic eddy current losses are directly proportional to the square of domain wall spacing. By narrowing this spacing through laser irradiation, micro-eddy current loops are restricted, reducing thermal energy dissipation during high-frequency AC operation.
Preservation of Crystal Orientation: Laser domain refinement affects only thin surface layers and specific line paths. The interior bulk grains retain their perfect Goss orientation (110)[001], ensuring that high magnetic flux density and high permeability remain uncompromised.
Laser-oriented silicon steel offers a 1 to 2 grade enhancement in iron loss performance over traditional electrical steel processing methods, providing unparalleled thermal stability, coating integrity, and energy savings. Engineering high-efficiency magnetic circuits requires materials that maintain low core loss under continuous electrical load while supporting tight mechanical tolerances during core fabrication. The refined domain structure established by precision laser treatment ensures that power transformers operate at lower temperatures, reducing cooling equipment demands and extending insulation service life.
In addition, advanced laser processing equipment operates with intelligent self-feedback control systems. This technology continuously monitors beam density, beam movement speed, and sheet temperature to achieve consistent domain refinement across massive production volumes. Furthermore, the non-contact nature of laser processing avoids mechanical burrs and micro-cracks, ensuring the raw material arrives at downstream slitting and stacking operations in prime condition.
High Magnetic Induction and Permeability: The material maintains exceptional magnetic flux density under strong magnetizing fields, enabling compact magnetic core designs that save structural steel and copper winding mass.
Protection of Inorganic Coating: Because the laser machine does not make physical contact with the sheet, the inorganic insulating layer maintains high interlaminar resistance, outstanding coating adhesion, and superior lamination factors.
Thermal Sensitivity Stability: Unlike chemically etched or stress-sensitive alternatives, laser-treated domain structures demonstrate exceptional thermal stability, maintaining consistent magnetic performance even under elevated transformer operating temperatures.
Reduced Magnetostriction and Acoustic Noise: Domain-refined microstructures experience smaller cyclic physical dimensional changes under alternating magnetic fields, directly lowering acoustic noise and physical vibration in transformer cores.
Performance Metric | Standard CRGO Steel | Laser-Oriented Electrical Steel | Performance Benefit |
Core Loss Grade Improvement | Baseline standard | 1 to 2 Grades Higher | Significant reduction in operational electricity losses. |
Domain Spacing Width | Wide, unrefined domains | Tightly refined sub-domains | Lower dynamic eddy current dissipation. |
Surface Coating Condition | Prone to mechanical wear | Intact inorganic insulation | Exceptional interlaminar resistance and rust protection. |
High-Temperature Stability | Variable under thermal stress | Stable magnetic inductance | Long-term operational reliability in sealed units. |
Lamination Factor | Standard tolerance | Optimized high density | Compact core dimensions with maximum iron fill. |
Laser processing of silicon steel sheets provides distinct precision advantages over conventional mechanical die punching and rotary shearing, eliminating edge deformation, residual stress buildup, and tool wear. When traditional mechanical blades cut through silicon steel, they exert intense compressive and shear forces along the sheet edge. This mechanical deformation destroys the grain alignment near the cut margin, creates large physical burrs, and induces severe internal stress. These structural changes cause local core losses to spike dramatically near the cut boundaries and increase the risk of short circuits between stacked laminations.
In contrast, industrial laser cutting uses concentrated photon energy to melt and vaporize the steel along targeted paths with millimeter-level accuracy. The non-contact process exerts zero mechanical force on the surrounding material, keeping the grain structure and insulation coating intact up to the very edge of the cut. By integrating advanced non-contact cutting with premium Laser-oriented Silicon Steel, manufacturers can achieve exact geometric profiles for complex transformer core legs, yoke pieces, and reactor segments while maintaining pristine magnetic performance across every lamination.
Zero Mechanical Burr Formation: Laser cutting produces smooth, clean sheet edges free from raised burrs, eliminating the need for secondary deburring operations and protecting interlaminar insulation.
Edge Stress Elimination: Mechanical stamping creates a broad heat-affected and work-hardened zone that degrades magnetic permeability; laser cutting minimizes thermal affected zones, preserving core loss characteristics near lamination edges.
Tooling Flexibility and Rapid Prototyping: Laser processing relies on digital CAD files rather than physical stamping dies, enabling rapid core design changes, zero die wear costs, and immediate production setup.
High Dimensional Repeatability: Computer-controlled optical galvanometers ensure strict dimensional tolerances across large sheet geometries, improving lamination alignment during core assembly.
The production of high-grade laser-oriented electrical steel involves precision hot and cold rolling, decarburization annealing, high-temperature secondary recrystallization, surface coating, and high-speed online laser scribing. Each phase must be strictly monitored to foster ideal grain growth and surface quality. During the initial rolling phases, silicon content is balanced around 3% to optimize electrical resistivity while preserving cold-workability. The subsequent high-temperature box annealing stage facilitates the complete growth of Goss-oriented grains, giving the sheet its baseline directional magnetic properties.
Once the base electrical steel sheet is coated with a thin, heat-resistant inorganic insulating layer, it passes directly through an automated online laser processing line. High-power laser beams sweep transversely across the moving strip, creating continuous laser-inscribed lines spaced fractions of a millimeter apart. These laser pulses introduce local thermal shocks that permanently refine the magnetic domain structure without burning through the surface insulation. Finally, the finished coils undergo quality inspection, tension leveling, and slitting to meet customer specifications.
Cold Rolling and Grain Alignment: The steel ingot is rolled down to final thin gauges (e.g., 0.18mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm) under controlled speed and temperature profiles.
High-Temperature Recrystallization: The coil undergoes prolonged annealing to cultivate large, uniform crystal grains aligned precisely in the rolling direction.
On-Line Laser Domain Refinement: Advanced laser scanning systems emit focused energy pulses across the running steel strip at high speeds, refining domain width dynamically.
Surface Quality Inspection and Slitting: Automated optical sensors evaluate coating consistency, sheet flatness, and laser line spacing prior to custom width slitting.
Selecting the correct grade of cold-rolled grain-oriented electrical steel requires balancing magnetic flux targets, loss limits, acoustic targets, and ambient thermal parameters. Modern electrical steel options span standard grain-oriented grades, high-induction HIB materials, specialized low-noise variants, heat-resistant notched materials, and laser domain-refined sheets. Each grade family addresses specific transformer design priorities, ranging from standard distribution units to high-voltage power grids operating under demanding thermal conditions.
Laser-refined electrical steel stands out for its exceptional loss reduction, achieving core loss values well below those of conventional CGO materials. When paired with high-permeability HIB base alloys, laser treatment provides the foundation for ultra-low-loss transformer designs. The matrix below highlights the performance focus, core characteristics, and recommended application profiles across major electrical steel grade families.
Grade Family | Primary Technical Focus | Key Performance Advantage | Typical Industrial Application |
Laser-Oriented Silicon Steel | Domain Refinement & Ultra-Low Loss | Max loss reduction, intact coating, 1-2 grade gain. | Ultra-high efficiency power transformers, green power grids. |
HIB-Oriented Silicon Steel | High Induction & High Permeability | Higher flux density capacity, low core volume requirement. | Compact high-voltage transformers, heavy reactors. |
CGO-Oriented Silicon Steel | Standard Grain Orientation | Balanced magnetic performance, high production stability. | Mainstream distribution transformers, standard core builds. |
LM-Oriented Silicon Steel | Low Noise & High Permeability | Minimal magnetostriction, reduced operational vibration. | Urban distribution units, noise-sensitive residential cores. |
HS-Oriented Silicon Steel | Heat-Resistant Domain Notching | Long-term thermal stability, high temperature endurance. | High-temperature transformers, demanding duty cycle units. |
Laser-Oriented Grade: Delivers top-tier energy efficiency, making it the premier choice for projects facing strict eco-design energy efficiency standards.
High-Induction (HIB) Grade: Maximizes magnetic flux density, allowing transformer engineers to reduce total core cross-section and save structural materials.
Low-Noise (LM) Grade: Engineered specifically to curb transformer hum in residential and commercial urban substations.
Heat-Resistant (HS) Grade: Employs permanent physical domain boundary notches that survive high-temperature stress-relief annealing without losing refinement benefits.
Laser-oriented silicon steel serves as an essential core material in modern energy infrastructure, enabling power transmission networks to meet aggressive decarbonization and grid efficiency targets. Electric power transmission networks experience constant no-load losses as long as transformers remain energized. Because these no-load losses stem directly from core material hysteresis and eddy currents, replacing standard electrical steel with laser-refined laminations delivers immediate, continuous energy savings across the lifetime of the equipment.
Beyond large-scale power grid substations, high-efficiency electrical steel is crucial in specialized energy storage conversion systems, industrial power supplies, and renewable energy collection hubs. Utilizing high-performance Laser-oriented Silicon Steel allows equipment manufacturers to produce smaller, cooler-running, and lighter distribution transformers that simplify installation while lowering operating costs.
Large-Scale High-Voltage Power Transformers: Deployed in main transmission step-up and step-down stations where ultra-low core loss translates into megawatt-hours of saved energy annually.
Urban and Rural Distribution Transformers: Integrated into pole-mounted and pad-mounted distribution units to comply with strict tier-2 energy efficiency mandates.
Magnetic Reactors and Inductors: Utilized in high-inductance grid stabilization reactors where high permeability and stable temperature endurance are essential.
Renewable Energy Generation Facilities: Installed in wind turbine nacelle step-up transformers and utility-scale solar inverter transformers that demand reliable operation under fluctuating power loads.
Procuring laser-oriented electrical steel demands careful evaluation of core loss guarantees, thickness uniformity, magnetic flux density, and coating performance. B2B procurement managers and core design engineers must look beyond simple price-per-ton metrics to calculate the total lifetime efficiency value of the magnetic core. Selecting the optimal sheet thickness (e.g., 0.18mm vs. 0.23mm or 0.27mm) directly influences both raw material costs and final core performance, as thinner gauges inherently reduce eddy currents but require higher lamination stacking labor.
Purchasing teams should also verify that candidate suppliers utilize automated, online laser processing lines with self-feedback inspection. Consistent laser beam line width, uniform line spacing, and gentle thermal impact ensure that the finished coils maintain pristine inorganic coating insulation and excellent interlaminar resistance throughout downstream slitting, winding, and stacking operations.
Specific Core Loss Standards: Verify loss limits at operational induction levels (e.g., P1.7/50Hz or P1.5/60Hz) to guarantee compliance with targeted efficiency benchmarks.
Lamination Factor and Coating Adhesion: Ensure high insulation resistance without excessive coating thickness to maximize the active steel volume within the core window.
Gauge Tolerance and Edge Flatness: Require strict thickness consistency across the entire coil width to avoid uneven core stacking height and localized mechanical stress.
Supply Chain and Packaging Integrity: Confirm that slitted coils are securely packaged with anti-rust oil, vapor corrosion inhibitors, and sturdy steel cradles for long-distance ocean freight.
Evaluation Factor | Engineering Requirement | B2B Purchasing Impact |
Core Loss Rating | Lower W/kg at 1.7 Tesla | Directly reduces transformer no-load loss penalties. |
Magnetic Induction (B800) | Higher Tesla rating (>1.88 T) | Enables smaller core size and reduced copper usage. |
Thickness Tolerance | ±0.01 mm nominal consistency | Prevents wave edges and core stacking misalignment. |
Coating Insulation | Inorganic varnish (>30 Ω·cm²) | Eliminates interlaminar short-circuit risks. |
Slitting Precision | Burr height < 0.01 mm | Removes the need for secondary deburring operations. |
Laser domain-refined silicon steel represents a major milestone in high-performance soft magnetic materials, offering electrical equipment manufacturers a reliable path toward lower core losses, superior permeability, and exceptional thermal stability. By leveraging non-contact photon energy to narrow primary magnetic domains, laser scribing achieves significant energy efficiency gains without damaging protective surface coatings or introducing mechanical burrs. As global energy grids demand higher efficiency standards, integrating laser-oriented steel laminations into transformer and reactor designs will remain a decisive strategy for building sustainable, high-efficiency electrical infrastructure.
