Why Is an Oil Immersed Power Transformer Used for High Load Networks?

Why High Load Networks Demand Specialized Transformer Solutions

High load networks demand specialized solutions because the combination of high voltage and high current generates significant thermal energy and electromagnetic stress that standard insulation cannot withstand.

In a high load environment, the primary challenge is thermal runaway. As electricity flows through the windings, internal resistance generates heat proportional to the square of the current. In massive industrial grids, this heat can reach levels that degrade organic insulation materials rapidly. Without a specialized medium like a highly efficient Oil-filled Transformer Core, the heat would concentrate in "hot spots," leading to immediate equipment failure and localized fires.

Furthermore, high load networks are often the backbone of a region's power supply. This means that any failure has a catastrophic ripple effect on productivity and safety. Specialized power transformers are designed with reinforced mechanical structures to handle the physical forces generated by short circuit currents. These forces can literally tear apart poorly supported windings, making the robust assembly of a power transformer essential for grid resilience.

Finally, the voltage levels in these networks often exceed 110kV or even 500kV. At these levels, the risk of arcing and corona discharge is constant. Specialized oil immersed units provide a high dielectric margin that ensures the electricity stays within the intended paths. This level of reliability is non-negotiable for utility providers managing the heavy loads of modern cities and manufacturing hubs.

How Does an Oil Immersed Power Transformer Differ from Distribution Units?

An oil immersed power transformer differs from distribution units primarily in its higher voltage capacity, larger physical scale, and its role in transmission rather than direct end user delivery.

The most significant difference lies in the application and voltage range. Distribution units are typically used to step down voltage to a level usable by residential or commercial consumers, usually staying below 35kV. In contrast, an oil immersed power transformer operates at much higher voltages, often starting at 66kV and moving upward. These units are designed to handle the "bulk" movement of power across long distances, requiring a far more sophisticated Oil-filled Transformer Core to manage the resulting electromagnetic flux.

Structurally, power transformers are much more complex. They often include advanced monitoring systems, such as dissolved gas analysis (DGA) sensors and automated tap changers that operate under load. Distribution units are simpler, often sealed for life with minimal maintenance requirements. The power transformer is a critical node that requires active management, whereas a distribution unit is a terminal point in the network.

From a thermal perspective, the power transformer is equipped with much larger cooling radiators and often employs forced oil or forced air systems. While both may use oil for insulation, the volume of oil and the sophistication of the circulation paths in a power unit are designed for 24/7 high load operation. The power transformer must also incorporate high grade glass fiber insulation to maintain structural integrity under much higher operating temperatures than a standard neighborhood unit would ever encounter.

Why Oil Immersion Supports High Power Density Operation

Oil immersion supports high power density because mineral oil has a much higher thermal conductivity and dielectric strength than air, allowing for more compact winding configurations.

The concept of power density refers to the amount of power a transformer can handle relative to its physical size. Because mineral oil is an excellent heat conductor, it can carry thermal energy away from the Oil-filled Transformer Core much faster than air. This efficiency allows engineers to design smaller cores and tighter windings that can still handle massive amounts of energy. Without the oil, a transformer with the same power rating would need to be significantly larger to allow for adequate air circulation.

Beyond cooling, the dielectric properties of the oil are vital. Oil can withstand higher electrical stress before breaking down compared to air. This means that the spacing between high voltage components can be reduced. When you combine reduced spacing with high efficiency cooling, you achieve a high power density. This is particularly important for substations in urban areas where land is expensive and the footprint of the equipment must be minimized.

The use of oil also provides a "self healing" mechanism for the insulation. If a minor arc occurs due to a transient overvoltage, the oil can often flow back into the space and restore the insulation barrier. In dry type systems, a puncture in solid insulation is permanent and usually leads to total failure. This resilience allows the oil immersed power transformer to be pushed to its limits during peak load times without the same risk of permanent damage.

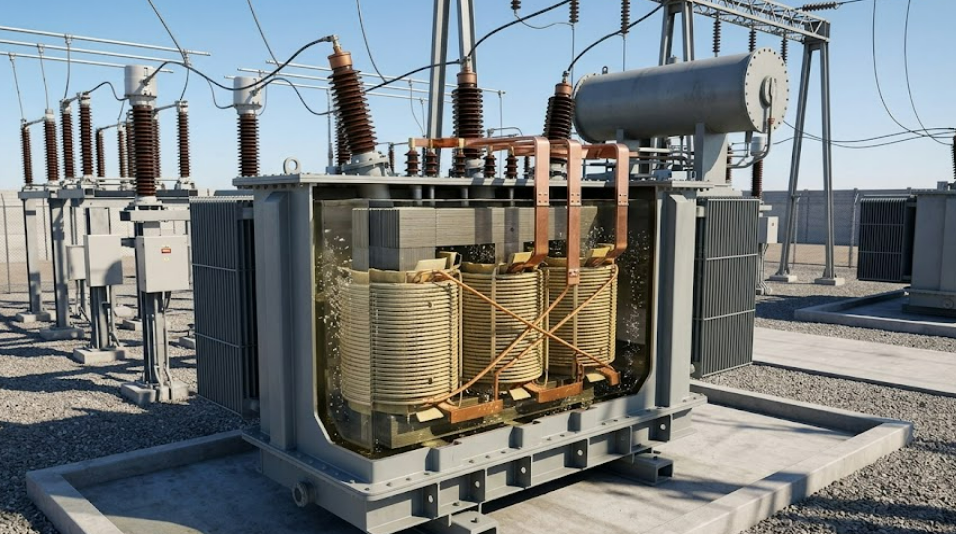

What Structural Features Enable High Load Performance?

The structural features that enable high load performance include a reinforced steel tank, high permeability core laminations, and advanced composite insulation materials like glass fiber.

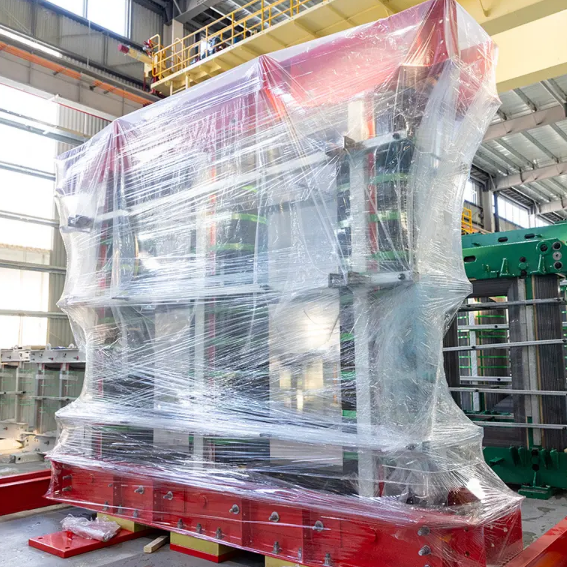

The foundation of high load performance starts with the Oil-filled Transformer Core. This core is constructed from high grade, grain oriented silicon steel laminations. These laminations are precisely cut and stacked to minimize eddy current losses and hysteresis, which are the primary sources of internal heat. The core is then clamped with heavy duty steel frames to prevent vibration and noise, which can become severe under the high magnetic flux of a heavy load.

Inside the tank, the windings are the most vulnerable component. To prevent deformation under the mechanical stress of high currents, the coils are often reinforced with glass fiber insulation. This material provides excellent mechanical strength and thermal resistance, ensuring that the windings stay in place even during a short circuit event. The combination of paper insulation and glass fiber reinforcements creates a multi layered defense against both electrical and thermal degradation.

Key structural components include:

1. Corrugated or Radiator Tanks: These increase the surface area for heat exchange.

2. Conservator Tanks: These allow the oil to expand and contract with temperature changes without exposing it to atmospheric moisture.

3. Bushing Assemblies: High quality porcelain or composite bushings manage the transition of high voltage leads from the oil environment to the external grid.

4. On-Load Tap Changers (OLTC): These allow for real time voltage regulation without interrupting the power supply to the high load network.

Key Characteristics of Oil Immersed Power Transformers

The key characteristics of these transformers are their exceptional thermal stability, high dielectric strength, long service life, and the ability to be easily monitored and maintained.

One of the most important characteristics is the longevity of the insulation system. When maintained correctly, an oil immersed unit can last for 30 to 50 years. The oil acts as a preservative for the internal paper insulation, shielding it from oxygen and moisture which are the primary drivers of aging. The addition of glass fiber insulation in high stress areas further extends this lifespan by providing a durable structural backbone that does not degrade as quickly as organic materials.

Another characteristic is the ease of diagnostics. Because the oil circulates through the entire transformer, it carries "information" about the health of the internal components. By sampling the oil, technicians can detect trace gases that indicate overheating, arcing, or cellulose degradation. This proactive maintenance capability is essential for high load networks where unplanned downtime is incredibly expensive.

Technical Characteristics Table:

How Cooling Systems Maintain Stability Under Heavy Load

Cooling systems maintain stability by utilizing the natural or forced circulation of oil to transport heat from the internal core to external radiators where it is dissipated into the atmosphere.

In a standard operating mode, many power transformers use ONAN (Oil Natural Air Natural) cooling. This relies on the thermosiphon effect, where hot oil rises and moves into external radiators, cools down, and sinks back into the bottom of the tank. However, under high load, this natural process is often insufficient. To handle the increased heat from a heavily loaded Oil-filled Transformer Core, the system can transition to ONAF (Oil Natural Air Forced), where fans are triggered to blow air across the radiators, significantly increasing the rate of heat transfer.

For even higher loads or in environments with high ambient temperatures, forced oil systems are used (OFAF - Oil Forced Air Forced). In this configuration, pumps actively drive the oil through the windings and the radiators. This ensures that no part of the core becomes a "hot spot." The active movement of oil is critical because it ensures a uniform temperature distribution throughout the unit, preventing localized insulation failure.

The integration of smart sensors allows these cooling systems to be dynamic. As the load increases, the transformer's control system can activate additional banks of fans or pumps. This responsiveness is what allows an oil immersed power transformer to handle sudden surges in grid demand. The use of glass fiber insulation within the winding structure also helps by creating clear channels for the oil to flow, ensuring that the cooling medium reaches the deepest parts of the coil assembly.

Why Oil Immersed Power Transformers Suit Transmission Substations

Oil immersed power transformers suit transmission substations because they provide the necessary reliability and high voltage handling required for the primary nodes of a national or regional power grid.

Transmission substations are the "highways" of the electrical world. They deal with the highest voltages and the most significant power transfers. In these environments, the environmental protection provided by the sealed oil tank is a major advantage. Unlike dry type transformers, which are sensitive to dust, humidity, and chemical contaminants, the internal components of an oil filled unit are completely isolated. This makes them ideal for outdoor substations where they are exposed to the elements.

Furthermore, the scale of transmission power requires a core design that can handle extreme flux densities. The Oil-filled Transformer Core in these units is optimized for minimum vibration and maximum efficiency at 50Hz or 60Hz. The robust nature of the oil insulation allows these units to withstand the lightning strikes and switching surges that are common on long distance transmission lines. The "surge impedance" of an oil filled unit is generally better suited for these harsh electrical environments.

The application in transmission also benefits from the following:

1. Scalability: These units can be built to handle hundreds of MVA (Mega Volt Amps).

2. Safety: Modern oil immersed units include advanced fire suppression and pressure relief systems.

3. Efficiency: They typically achieve efficiencies above 99%, which is vital when moving massive amounts of power where even a 0.1% loss equals significant energy waste.

4. Mechanical Strength: Reinforced with glass fiber insulation, they can survive the physical stresses of seismic events or grid faults.

Oil Immersed Power Transformer vs Distribution Transformer

The comparison between power and distribution transformers highlights the specialized nature of high load equipment versus localized delivery hardware.

While both types utilize the same basic principles of electromagnetic induction, their design goals are vastly different. A distribution transformer is built for economy and proximity to the end user. It is often pole mounted or placed in small underground vaults. In contrast, the oil immersed power transformer is a massive piece of capital equipment, often requiring its own dedicated foundation and cooling infrastructure.

The core design of a power unit is far more sophisticated. The Oil-filled Transformer Core must be designed to minimize noise and heat even when operating at near peak capacity for weeks at a time. Distribution units, however, are designed to handle variable loads that often drop significantly at night, allowing them to cool down naturally without complex management systems.

Summary

In conclusion, the oil immersed power transformer is the indispensable workhorse of high load networks. Its ability to combine superior cooling, high dielectric strength, and mechanical robustness makes it the only viable choice for the heavy demands of modern transmission and industrial grids. By utilizing a high efficiency Oil-filled Transformer Core and reinforcing the structure with advanced materials like glass fiber insulation, these units provide the reliability and longevity required to keep the world's power systems running. As we move toward a future of increased electrification and higher energy demands, the specialized technology found within these oil filled units will continue to be the foundation of global energy stability.
