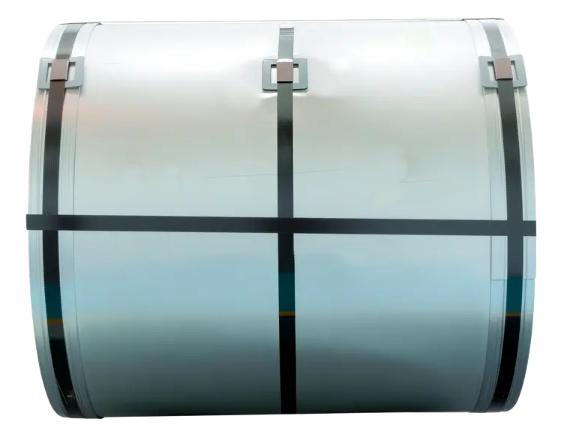

Cold Rolled Grain Oriented (CRGO) silicon steel is a specialized type of electrical steel that undergoes meticulous mechanical and thermal processing to align its grain structure in a single uniform direction, thereby minimizing core losses, optimizing magnetic permeability, and ensuring maximum operational efficiency in high-performance transformer cores and heavy electrical reactors.
To fully understand the structural benefits and operational boundaries of this fundamental electrical engineering material, this article provides a detailed breakdown of its underlying metallurgy, operational benefits, standard grading metrics, and practical selection parameters. Engineers and procurement specialists must navigate an array of international standards and grain orientations to match specific transformer topologies with the ideal material grade.
The following comprehensive analysis explores the specific grades of CRGO silicon steel, drawing distinctions between conventional grain-oriented variants and high-permeability options, while mapping their manufacturing parameters to real-world industrial infrastructure demands.
CRGO silicon steel works by organizing its internal microscopic metallic grains in a highly uniform longitudinal direction, allowing magnetic flux lines to pass through the material with minimal resistance, thereby dramatically reducing core friction and heat generation during alternating current cycles.
The operational mechanism of CRGO silicon steel relies on the phenomenon of ferromagnetism combined with targeted anisotropic grain alignment. In standard unoriented steel sheet metals, the crystalline structures are scattered in random orientations, which forces the magnetic domains to continuously force themselves into alignment with every single cycle of the alternating current. This random realignment process generates immense internal friction at the atomic scale, leading to substantial energy losses that dissipate into the environment as ambient heat energy.
By implementing a rigorous cold-rolling process down to exact millimeter fractions, the grains are flattened and forced into a continuous parallel layout. When an external alternating magnetic field is applied parallel to this pre-engineered direction of rolling, the magnetic domains rotate smoothly and effortlessly. This frictionless alignment translates directly into highly stable operational parameters for power transmission networks, allowing utility companies to scale up their operating voltages without risking catastrophic thermal overloads within their regional substation hubs.
Furthermore, the integration of high-quality electrical steel into transformer construction guarantees extended lifespans for critical grid infrastructure. As the core material retains its structural and magnetic integrity across decades of continuous cycling, maintenance intervals can be extended. For project planners interested in sourcing premium grades optimized for power networks, discovering premium CGO oriented Silicon Steel solutions provides an exceptional engineering path forward to lower operational margins and maximize distribution efficiency.
The metallurgical structure of CRGO silicon steel is characterized by the Goss texture formation, where a precise silicon content of approximately three percent is infused into the iron matrix to drastically elevate electrical resistivity and suppress eddy current formations.
To examine the metallurgical nature of CRGO silicon steel, one must analyze the atomic lattice of iron-silicon solid solutions. The introduction of silicon into pure iron expands the body-centered cubic lattice structure, which alters the intrinsic magnetic properties of the underlying metal. This specific concentration of silicon must be carefully managed; exceeding a three and a half percent concentration makes the steel excessively brittle, preventing successful cold rolling operations, while falling below two and a half percent fails to provide sufficient electrical resistance to halt internal eddy currents.
The defining feature of CRGO silicon steel is the creation of the (110)[001] crystal orientation, scientifically designated as the Goss texture. In this specific configuration, the cube edge of the iron crystal lattice aligns perfectly with the rolling direction of the sheet, while the face diagonal lines up across the sheet plane. Achieving this uniform atomic state requires a combination of intensive cold reductions, intermediate annealing stages, and a final long-duration secondary recrystallization phase under a highly controlled hydrogen-nitrogen atmosphere.
When an alternating magnetic field penetrates the core, it induces localized circular electric currents known as eddy currents. These currents run counter to the primary magnetic direction, causing localized resistive heating. The high silicon content in CRGO silicon steel acts as an internal barrier to these currents by increasing the material's overall electrical resistivity. Simultaneously, the perfect grain alignment minimizes hysteresis loss, which is the energy required to reverse the magnetic polarity of the domains during each electrical cycle.
To further enhance performance, modern CRGO sheets are finished with a specialized inorganic stress coating, typically consisting of a magnesium-phosphate complex. This thin layer provides high electrical insulation between individual laminations to prevent inter-sheet eddy current jumping. Additionally, it applies tensile stress to the steel sheet, which chemically refines the internal magnetic domain spacings and suppresses noise emissions caused by magnetostriction.
The grading system of CRGO silicon steel classifies materials based on their maximum allowable core loss measured in watts per kilogram at specific magnetic induction levels, alongside explicit sheet thickness designations and standardized alphanumeric codings.
Navigating the various grades of CRGO silicon steel requires an understanding of international testing standards. The primary performance metric used to categorize these steels is the core loss value, usually evaluated at an alternating frequency of 50 Hz or 60 Hz under a magnetic flux density of either 1.5 Tesla or 1.7 Tesla. These parameters are rigorously measured using an Epstein frame or single-sheet testing equipment to ensure total consistency across global manufacturing batches.

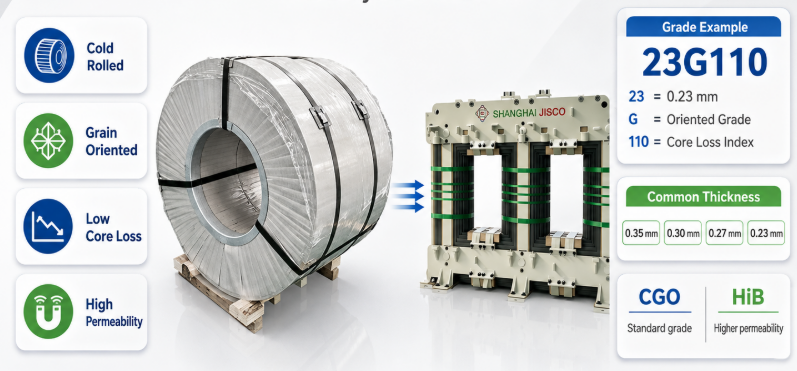

Standard grading names are structured to reveal key performance attributes of the material immediately. For example, under the Japanese Industrial Standards (JIS), grades like 23G110 or 27M120 provide specific technical details. The first two digits signify the nominal thickness of the steel sheet multiplied by one hundred (e.g., 23 represents a thickness of 0.23 mm). The letter defines the specific class of grain orientation, while the final trailing digits indicate the maximum guaranteed core loss value multiplied by one hundred, measured at a specified flux density.
Thickness is an essential variable when grading high-performance CRGO silicon steel. Thinner laminations are highly valued because eddy current losses are directly proportional to the square of the sheet thickness. Therefore, transitioning from a standard 0.30 mm sheet down to an ultra-thin 0.18 mm sheet yields significant performance gains. The following breakdown categorizes standard commercial thickness offerings:
0.35 mm Sheets: Primarily utilized in standard industrial distribution transformers operating under conventional grid loads.
0.30 mm Sheets: A highly versatile, mid-tier grade used extensively in domestic power networks and mid-sized step-down substations.
0.27 mm Sheets: A premium standard offering an optimized balance of structural rigidity during core stacking and low thermal losses.
0.23 mm and Lower Sheets: Ultra-premium grades engineered for ultra-high voltage power links and critical urban distribution hubs.
To illustrate the performance variances between standard grades, the table below provides a detailed look at core loss limits across widely utilized specifications in the power engineering industry:
The fundamental distinction between Conventional Grain Oriented (CGO) steel and High-Permeability (HiB) steel lies in the precision of grain alignment, where HiB steel achieves a tighter orientation angle variation relative to the rolling direction, enabling much higher magnetic saturation levels.
When selecting CRGO silicon steel for advanced projects, engineers must choose between Conventional Grain Oriented (CGO) materials and High-Permeability (HiB) variants. Standard CGO steel maintains an average grain orientation deviation angle of approximately 7 degrees from the rolling axis. While this is sufficient for basic electrical equipment, it leaves room for improvement when building modern, high-efficiency grid infrastructure.
In contrast, High-Permeability HiB steel incorporates trace chemical additives, such as aluminum nitride or sulfur inhibitors, during the initial smelting phases. These additives act as powerful grain growth inhibitors during the intermediate heat-treatment stages. As a result, the final secondary recrystallization process yields an exceptionally precise grain structure, with an average orientation deviation angle of less than 3 degrees from the longitudinal rolling axis.
This strict structural alignment translates directly into elevated magnetic permeability and lower core loss metrics. Transformers constructed with HiB cores can operate at significantly higher design flux densities without experiencing premature magnetic saturation or structural deformation. For demanding industrial applications that utilize heavy magnetic components, leveraging advanced High Permeability HIB oriented Silicon Steel Reactors ensures excellent operational stability, compact core footprints, and long-term performance under continuous maximum loads.
CRGO silicon steel grades are primarily utilized in the fabrication of laminated cores for large-scale power transformers, regional distribution units, and heavy shunt reactors due to their unmatched ability to efficiently guide intense magnetic flux fields.
The industrial deployment of CRGO silicon steel spans across the global power generation and distribution grid. Large-scale step-up power transformers, which sit directly adjacent to power generation plants, rely heavily on premium, thin-gauge CRGO alloys. Because these units handle hundreds of megawatts of continuous energy, even a fractional percentage improvement in core efficiency can save utility providers millions of kilowatt-hours of electricity annually.
In municipal distribution networks, step-down transformers are placed continuously across urban centers to manage neighborhood electricity distribution. These units operate under highly variable load profiles, often running at lower capacities during nighttime hours. To minimize constant, no-load losses that occur whenever a transformer is energized, engineers utilize specialized CRGO grades that maintain highly predictable and linear core loss profiles across fluctuating voltage levels.
Beyond standard transformer units, specialized industrial equipment such as current transformers, potential measuring instruments, and large-scale welding machines require custom-slit CRGO laminations. The high structural predictability of these steels allows instrument designers to manufacture highly accurate measurement sensors. This consistency ensures that sensitive grid-monitoring telemetry remains free from distortion caused by random magnetic variations within the sensor core structure.
Selecting the appropriate CRGO silicon steel grade requires balancing specific magnetic flux density targets, operating frequencies, total core weight limitations, and project budget boundaries.
Engineering professionals must evaluate several critical parameters before finalizing a CRGO silicon steel specification for a manufacturing project. The primary consideration is the operating magnetic flux density of the proposed transformer core. If the design demands a high operational flux density approaching 1.8 Tesla, selecting an ultra-premium HiB grade is necessary to avoid core saturation. Designing near saturation limits can introduce harmonic distortions into the electrical distribution grid.
Another essential factor is the stacking factor of the selected steel laminations. The stacking factor defines the actual ratio of magnetic steel volume to the total physical volume of the assembled core block. Premium CRGO sheets feature thin, highly uniform insulation coatings that maximize this stacking ratio, enabling more magnetic mass to be tightly packed into a given space. This structural efficiency allows manufacturers to design more compact, lighter transformer units that are easier to transport and install in constrained urban environments.
Finally, cost considerations must be balanced against long-term operational efficiency goals. While ultra-thin, high-permeability CRGO silicon steel grades offer minimal energy losses, they require intensive processing and carry higher initial procurement costs. Engineers must perform detailed lifecycle cost analyses, evaluating the upfront material investment against the cumulative energy savings achieved over a typical 30-year transformer operational lifespan.
