Silicon steel and CRGO electrical steel are essential for transformers because they provide exceptionally high magnetic permeability, maximize magnetic flux density, and drastically reduce core losses like hysteresis and eddy current losses, ensuring optimal energy transfer with minimal thermal dissipation under continuous alternating current conditions.
To fully grasp why these materials dictate the performance boundaries of modern electrical infrastructure, we must analyze their metallurgical compositions, physical behaviors, and operational benefits. This comprehensive technical guide provides an in depth analysis comparing standard silicon formulations with specialized grain oriented alternatives, detailing how each variant interacts with alternating magnetic fields inside standard electrical transformers.
By exploring manufacturing standards, directional properties, and specific industrial use cases, this article serves as a benchmark reference for evaluating core materials for power networks, industrial reactors, and distribution setups worldwide. The subsequent sections will break down the precise material characteristics, mechanical processing distinctions, and real world grid performance profiles that define these essential modern alloys.
Section | Summary |
What is Silicon Steel? | This section defines standard silicon steel as an iron silicon alloy, outlining its fundamental chemical composition, basic mechanical characteristics, and core historical evolution within early electrical engineering applications. |
What is CRGO Electrical Steel? | This section defines Cold Rolled Grain Oriented steel, detailing its specialized crystal lattice alignment, advanced multi stage manufacturing procedures, and high permeability properties optimized for modern power networks. |
Silicon Steel vs CRGO Electrical Steel: Key Differences | This section provides a direct technical comparison between standard silicon formulations and cold rolled grain oriented alternatives, using comprehensive data tables and clear parameter breakdowns to highlight physical and magnetic differences. |
Why Are Silicon Steel and CRGO Electrical Steel Essential for Transformers? | This section details the critical physical mechanisms such as hysteresis reduction, eddy current control, and saturation limits that make CRGO Silicon steel variants absolutely essential for high efficiency transformer design. |
Silicon steel is an iron silicon alloy typically containing between one percent and four and a half percent silicon while maintaining exceptionally low carbon levels, engineered specifically to provide superior soft magnetic properties for alternating current applications.
Standard silicon steel represents the foundational category of soft magnetic materials utilized across the electrical manufacturing industry. The addition of silicon to the iron matrix serves a vital metallurgical purpose: it substantially increases the electrical resistivity of the metal. By raising the inherent electrical resistance, the material naturally restricts the formation of destructive eddy currents when exposed to rapidly shifting alternating magnetic fields. Furthermore, adding silicon stabilizes the crystalline structure of the iron, lowering the magnetocrystalline anisotropy and allowing magnetic domains to flip back and forth with significantly less mechanical resistance, directly reducing energy dissipation.
The exact balance of elements within standard silicon steel must be tightly controlled during secondary steelmaking processes. If the silicon content falls below one percent, the electrical resistivity becomes insufficient to mitigate eddy current losses effectively in power scenarios. Conversely, if the silicon content exceeds four and a half percent, the steel becomes excessively brittle, making it nearly impossible to cold roll into thin, flexible laminations without fracturing the metal sheets. In addition to silicon, elements like sulfur, carbon, and nitrogen must be reduced to trace levels to prevent the formation of internal precipitates that could pinned magnetic domain walls and increase hysteresis loss.
Within the broader category of silicon steel, materials are generally split into non oriented and oriented classifications. Non oriented silicon steel features an isotropic crystalline distribution, meaning the iron crystals are randomly aligned across the entire plane of the sheet. This random orientation ensures that the magnetic properties remain uniform in all directions, making non oriented variants perfect for rotating machinery like electric motors and generators where the magnetic flux path is constantly spinning. However, for stationary apparatus like transformers where the magnetic flux travels along a fixed, linear loop, isotropic properties are inefficient, leading engineers to develop highly directional alternatives.
Silicon steel is manufactured into thin, insulated laminations, usually ranging from zero point two millimeters to zero point five millimeters in thickness, to prevent circulating currents between stacked core layers. These laminations are coated with ultra thin inorganic or organic insulating films to maintain high interlamellar resistance. While non oriented grades dominate consumer appliances, small electric motors, and automotive alternators, standard silicon formulations serve as the base technology from which high performance, directionally optimized transformer steels are derived, bridging the gap between raw industrial iron and precision electromagnetic components.

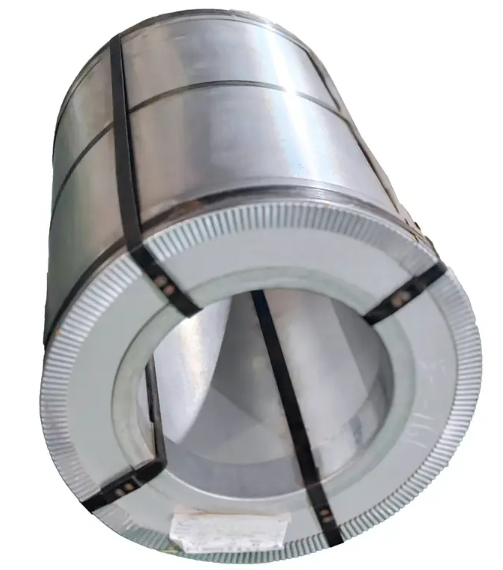

CRGO Electrical Steel, or Cold Rolled Grain Oriented steel, is a highly specialized variant of CRGO Silicon steel that undergoes intensive rolling and thermal treatments to align its crystal grain structures uniformly in a single rolling direction, maximizing its magnetic permeability along its main operating axis.
Cold Rolled Grain Oriented steel represents the absolute pinnacle of metallurgical engineering applied to modern electrical power distribution. Unlike standard isotropic materials, CRGO Silicon steel relies on a precise internal microstructural layout known commercially as the Goss texture, named after its inventor Norman P. Goss. In this specific configuration, the easy axis of magnetization of the iron silicon crystals is aligned parallel to the direction in which the steel strip was rolled. This means that as long as the magnetic flux flows along that specific rolling axis, the material exhibits extraordinarily high magnetic permeability and remarkably low core loss, surpassing any standard non oriented steel variant available.
To understand the high efficiency of CRGO Silicon steel, one must examine the cubic crystal lattice of iron. An iron crystal can be magnetized much more easily along its cube edges than along its diagonal faces. The complex thermodynamic and mechanical processing of CRGO production forces these cube edges to align precisely with the length of the steel sheet. This directional alignment means that magnetic domains require minimal external energy to flip back and forth, allowing transformer cores made from CRGO material to operate at much higher magnetic flux densities without saturating or overheating under intense electrical loads.
Achieving this perfect grain alignment requires an incredibly sophisticated, multi stage manufacturing process. The raw iron silicon alloy must undergo controlled hot rolling, followed by precise cold reduction stages to induce high mechanical stress within the crystal matrix. Afterward, a critical high temperature final texture annealing phase is conducted, often in a pure hydrogen atmosphere at temperatures exceeding one thousand degrees Celsius. This extensive thermal processing triggers secondary recrystallization, allowing the correctly oriented grains to consume smaller, misaligned crystals, creating a highly uniform, directionally optimized end product. For high performance setups, incorporating High Permeability HIB oriented Silicon Steel for Reactors provides a superior grain orientation that further minimizes stray losses in demanding electrical networks.
To push the efficiency of CRGO Silicon steel even further, advanced manufacturers employ localized surface treatments like laser domain refinement or mechanical scratching. By passing a high energy laser beam across the surface of the finished steel strip, microscopic local stresses are introduced into the metal. These thermal stress lines effectively break down large magnetic domains into smaller, highly mobile sub domains. This specialized refinement process slashes eddy current losses by an additional ten to twenty percent, allowing modern transformers to satisfy the most stringent international eco design mandates and green energy infrastructure regulations globally.

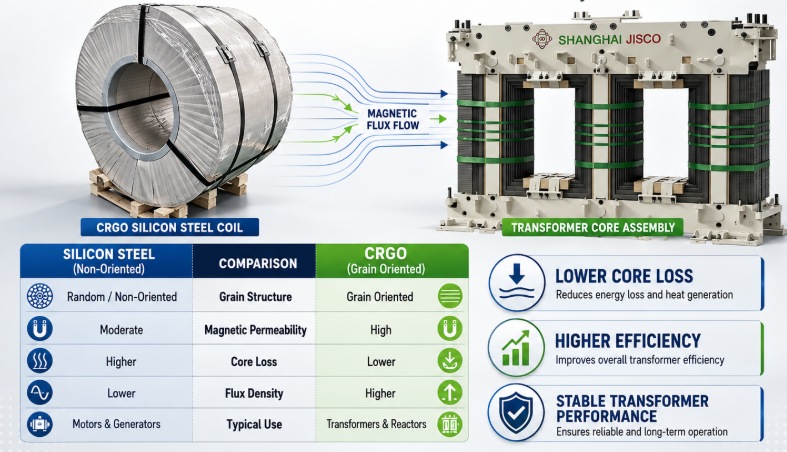

The primary difference between standard silicon steel and CRGO electrical steel lies in their internal grain structures and directional magnetic characteristics, where standard silicon steel offers isotropic properties for multi directional flux paths, while CRGO Silicon steel delivers highly optimized directional performance along a single axis.
When selecting core materials for industrial projects, engineers must evaluate a broad spectrum of physical, mechanical, and magnetic performance indicators. Standard silicon steel is an excellent, cost effective choice for machinery where magnetic flux paths shift dynamically across multiple axes, such as in high speed industrial motors or compact electronic components. However, for high efficiency applications like electrical transformers, utilizing directionally optimized CRGO Silicon steel is critical because its directional grain alignment allows for much higher operational flux densities with only a fraction of the thermal energy loss seen in isotropic alternatives.
Technical Parameter | Standard Silicon Steel (Non Oriented) | CRGO Electrical Steel (Grain Oriented) |
Grain Structure Alignment | Isotropic (Random crystal arrangement) | Anisotropic (Uniform Goss texture alignment) |
Magnetic Permeability | Moderate (Equal in all directions) | Exceptionally High (Optimized along rolling axis) |
Average Core Loss (W/kg at 1.5T) | 2.5 to 5.5 W/kg | 0.5 to 1.2 W/kg |
Maximum Saturation Flux Density | Lower operational limits (1.2T to 1.4T) | Higher operational limits (1.7T to 1.9T) |
Typical Lamination Thickness | 0.35 mm to 0.65 mm | 0.18 mm to 0.30 mm |
Primary Target Applications | Electric motors, generators, alternators | Power transformers, distribution cores, reactors |
Relative Material Cost | Standard / Cost-Effective | Premium due to multi-stage processing |
The extreme directional sensitivity of CRGO Silicon steel means that transformer manufacturers must design core architectures with absolute geometric precision. When building a square or rectangular transformer core out of CRGO sheets, standard 90 degree butt joints cannot be used, as they would force the magnetic flux to travel across the easy rolling direction at the corners, causing massive localized losses. Instead, cores are assembled using complex 45 degree mitered joints or step lap stacking techniques. This advanced architectural engineering ensures that the magnetic flux path flows smoothly along the optimized rolling axis across the entire circuit, preserving the high efficiency benefits of the premium material.
Another major differentiator is the material saturation limit. Because CRGO Silicon steel features perfectly aligned crystal structures, it can be driven to much higher magnetic flux densities—often up to 1.8 Tesla—before the material reaches magnetic saturation. Standard silicon steel, by contrast, begins to saturate at much lower levels, typically between 1.3 and 1.5 Tesla. This higher saturation threshold means that a transformer core built with CRGO material can be made significantly smaller, lighter, and more compact than a standard silicon core while delivering the exact same power throughput, saving massive amounts of structural copper and insulating oil during assembly.
While the initial procurement cost of CRGO Silicon steel is higher than that of standard silicon variants due to its complex hot rolling, cold reduction, and high temperature hydrogen annealing steps, its long term economic return is indisputable. Utilizing standard materials like CGO oriented Silicon Steel provides a reliable baseline for medium voltage distribution setups, helping grid operators balance initial capital expenses against strict operational efficiency goals. Over a transformer lifespan spanning thirty to forty years, the continuous energy savings achieved by minimizing daily core losses easily offset the higher initial investment, making grain oriented alloys the preferred choice for modern grid installations.
Silicon steel and CRGO electrical steel are essential for transformers because their unique magnetic profiles allow them to withstand intense, continuous alternating magnetic fields without sustaining high core losses, preventing grid failure and maximizing energy transmission efficiency.
Transformers operate on the principle of Faraday’s Law of Electromagnetic Induction, where an alternating current passing through a primary winding creates a continuously changing magnetic flux within the shared metallic core. This changing flux then induces a proportional alternating voltage in the secondary winding. Because the core material is constantly exposed to this alternating magnetic field—typically reversing fifty or sixty times every single second—it must possess specific electromagnetic properties to prevent catastrophic power losses and massive thermal accumulation. CRGO Silicon steel variants provide the exact physical properties required to make this heavy industrial energy transfer highly efficient.
Hysteresis loss occurs because the microscopic magnetic domains inside the core material must physically rotate to realign themselves every time the alternating current changes direction. In low grade iron materials, this continuous friction between domain walls generates massive internal heat, wasting significant amounts of electrical energy as thermal energy. Thanks to the uniform Goss texture within high grade CRGO Silicon steel, these magnetic domains align effortlessly with the alternating magnetic path. This fluid structural realignment slashes internal friction, minimizing hysteresis losses and ensuring that the transformer core remains cool even under heavy, continuous industrial operation.
When an alternating magnetic flux travels through a conductive metallic core, it naturally induces small, circular looping currents inside the core itself, known as eddy currents. These internal currents flow perpendicular to the primary magnetic flux path, generating destructive resistive heat within the steel matrix. The introduction of high purity silicon into the iron alloy dramatically increases its structural electrical resistance, automatically suppressing the amplitude of these circular eddy currents. Furthermore, by slicing the CRGO Silicon steel into incredibly thin, chemically insulated laminations, the physical path available for eddy currents is confined to a microscopic scale, almost entirely neutralizing this form of energy waste.
Magnetic permeability refers to an alloy's inherent capacity to support and conduct a magnetic field. CRGO Silicon steel exhibits some of the highest magnetic permeability ratings of any industrial material, meaning it acts as an ultra low resistance highway for magnetic flux. This high permeability ensures that nearly all of the magnetic lines of force generated by the primary coil are trapped and confined within the core structure, traveling directly to the secondary coil without leaking out into the surrounding transformer tank or air. This tight flux confinement prevents electromagnetic interference, protects nearby electronics, and maximizes the overall voltage conversion efficiency of the transformer unit.
When a ferromagnetic material is subjected to intense magnetic fields, it undergoes minute physical dimension changes, a mechanical phenomenon known as magnetostriction. This rapid expansion and contraction occurs at twice the operating frequency of the electrical grid, creating the characteristic low frequency humming sound associated with power substations. High grade CRGO Silicon steel is carefully optimized to minimize these internal magnetostrictive forces. By reducing mechanical vibrations within the laminated core stack, magnetostriction control helps prevent structural bolt loosening, protects delicate internal insulation layers, and extends the physical operating life of the entire transformer assembly.
In conclusion, the strategic selection and implementation of premium silicon steel and CRGO Silicon steel variants remain the absolute cornerstone of modern electrical transformer design, directly dictating global power grid efficiency and industrial network stability.
The ongoing modernization of the global electrical grid requires an uncompromising focus on energy efficiency, infrastructure durability, and carbon footprint reduction. As distribution networks expand to incorporate massive renewable energy inputs from remote solar arrays and offshore wind farms, the demand for highly efficient voltage regulation equipment has reached unprecedented levels. As demonstrated throughout this technical analysis, standard silicon formulations provide an excellent, cost effective solution for rotating machinery and multi directional magnetic circuits. However, when it comes to stationary high voltage equipment, the unique directional alignment and low loss profile of cold rolled grain oriented alternatives are absolutely irreplaceable.
By effectively eliminating destructive eddy currents through increased electrical resistivity and minimizing internal domain friction via precise Goss texture grain alignment, CRGO materials enable transformers to transmit enormous electrical loads across long distances with minimal thermal loss. This high saturation flux density allows engineers to design smaller, lighter, and more resource efficient core configurations, conserving thousands of tons of structural steel and copper oil tanks globally. Investing in specialized, certified products like High Permeability HIB oriented Silicon Steel for Reactors or utilizing high tier CGO oriented Silicon Steel sheets ensures that power networks remain highly resilient against modern load fluctuations.
Ultimately, as international environmental standards grow increasingly strict, the role of premium CRGO Silicon steel will only become more critical. Transformer manufacturers and utility operators who prioritize high grade grain oriented core materials will not only secure a massive reduction in daily operational energy waste but will also significantly extend the physical operational lifespans of their capital equipment assets. Choosing the correct, highly engineered soft magnetic alloy is a vital commitment to building a cleaner, more efficient, and structurally secure global energy infrastructure for future generations.
