What are the advantages of dry type transformer?

Dry type transformers provide superior operational safety, environmental sustainability, low maintenance requirements, and flexible indoor installation options by using solid dielectric insulation and natural air convection rather than flammable liquid coolants. The structural integrity and electrical efficiency of these systems depend directly on the quality of the Dry Type Transformer Core, which governs total no-load magnetic losses, thermal endurance, structural noise attenuation, and overall grid stability in modern industrial and commercial infrastructure.

Table of Contents

1. What Are the Key Advantages of Dry-Type Transformers?

2. Why Are Dry-Type Transformers Considered Safer?

3. What Are the Environmental and Operational Benefits of Dry-Type Transformers?

4. What Are the Limitations in Power and Voltage Ratings of Dry-Type Transformers?

5. Where Are Dry-Type Transformers Best and Least Suitable?

What Are the Key Advantages of Dry-Type Transformers?

Dry type transformers offer exceptional operational safety, minimal maintenance overhead, zero risk of chemical leakage, high overload capability, and direct proximity installation to electrical loads, all supported by a robustly engineered Dry Type Transformer Core.

Dry type transformers represent a mature technological branch of power distribution equipment designed to eliminate liquid cooling mediums such as mineral oil or synthetic ester fluids. Instead of liquid immersion, these transformers rely on air pressure circulation and high-temperature solid insulation systems (typically Class F or Class H resin coatings) to dissipate thermal energy. Central to this performance is the magnetic circuit, where the magnetic flux is channeled through a high-precision magnetic framework. Utilizing a high-permeability dry type transformer core manufactured from cold-rolled grain-oriented silicon steel ensures minimal hysteresis loss, lower continuous excitation current, and high structural stability during severe load fluctuations.

The operational advantages extend into economic and infrastructure dimensions. Traditional oil-filled transformers demand specialized containment basins, fire suppression walls, and routine oil sampling to test for dielectric degradation or dissolved gas build-up. In contrast, air-cooled dry type systems eliminate these auxiliary civil works, substantially lowering installation overhead. The fundamental structural design allows engineers to place the unit directly inside high-density residential towers, cleanrooms, and subterranean transit networks. In such applications, the integrity of the Dry Type Transformer Core lamination geometry plays a crucial role in suppressing harmonic distortion and limiting core overheating under non-linear load conditions.

Furthermore, dry type transformers display high mechanical strength under short-circuit stress. When high fault currents pass through the primary and secondary windings, electrodynamic forces attempt to deform the coil structures. Cast resin or vacuum pressure impregnated (VPI) windings, rigidly clamped against a heavy-duty Dry Type Transformer Core structure, provide rigid mechanical resistance. This solid mechanical unity protects internal insulation systems from mechanical chafing or micro-cracking, prolonging operational service life beyond thirty years under rated ambient conditions.

1. Fire Hazard Elimination: By removing flammable mineral oil, the risk of transformer fire or catastrophic oil spray ignition during severe insulation breakdown is entirely prevented.

2. Minimal Maintenance Requirements: Without liquid filters, pumps, or oil testing routines, maintenance is largely restricted to periodic visual inspections and dust removal from air ventilation passages.

3. Direct Load-Center Placement: Lowers cable installation costs and voltage drop losses by enabling placement directly adjacent to industrial machinery or commercial distribution panels.

4. Eco-Friendly Construction: Manufactured without toxic dielectric fluids or hazardous heavy metals, simplifying end-of-life recycling and material reclamation.

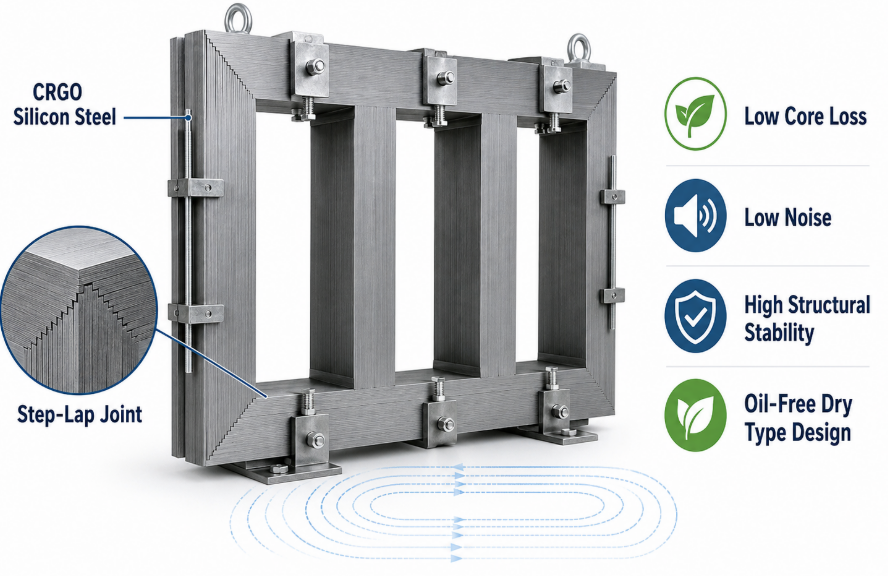

Core Magnetic Efficiency Principle: The overall energy performance and acoustic profile of a dry type transformer depend strictly on the step-lap jointing precision of the Dry Type Transformer Core. Mitering the core joint angles to 45 degrees minimizes magnetic reluctance at the corners, curbing magnetostriction vibration and lowering transformer humming noise under full load conditions.

Why Are Dry-Type Transformers Considered Safer?

Dry type transformers are inherently safer due to their self-extinguishing flame-retardant solid insulation materials, absolute absence of combustible dielectric oil, and total elimination of pressure-induced container explosions.

Safety considerations are paramount when deploying electrical equipment in indoor environments, commercial buildings, underground mining facilities, and offshore platforms. In traditional liquid-immersed transformers, an internal electrical arc can rapidly vaporize the surrounding dielectric oil, generating high-pressure hydrocarbon gases. If the transformer tank fails, explosive oil mist can ignite, creating severe life-safety and structural risks. Dry type transformers completely avoid this failure mode because they use no liquid coolants. The solid insulation materials, such as epoxy resin formulations filled with non-combustible quartz powder or aromatic polyamides, exhibit high ignition temperatures and self-extinguishing properties when exposed to open flames.

The electrical insulation layout in a dry type unit relies on precise dielectric spacing and high-quality magnetic coupling. The magnetic circuit, formed by a precision-engineered dry type transformer core, operates within an insulated frame designed to withstand lightning impulses and switching surges without flashover. Because dry type insulation systems do not degrade through moisture-induced sludging or liquid oxidation, dielectric withstand voltage remains predictable throughout the operating cycle. Proper surface coating of the core lamination assembly protects against corrosion in high-humidity industrial environments, maintaining dielectric safety margins even after extended offline periods.

From an industrial engineering perspective, safety is also tied to toxic gas generation during emergency thermal events. When exposed to extreme external fires, high-grade epoxy resin formulations release non-toxic, low-density smoke without corrosive halogen gas emissions. This characteristic is critical for subterranean railway stations, tunnels, and marine vessels where human evacuation routes are constrained. Furthermore, because dry type units require no oil storage tanks or pressure relief valves, the physical risk of mechanical bursting under internal thermal expansion is zero.

1. Fire Safety Class F1 Certification: Materials pass rigorous test standards proving resistance to ignition and complete self-extinction upon removal of external flame source.

2. Thermal Overload Warning: Embedded PT100 temperature sensors continuously measure temperature in high-voltage and low-voltage windings, providing early trip warnings before thermal limit breaches.

3. Corrosion Protection: Protective epoxy sealing applied to the Dry Type Transformer Core protects magnetic laminations from chemical vapor attack and moisture penetration.

What Are the Environmental and Operational Benefits of Dry-Type Transformers?

Dry type transformers deliver major environmental and operational advantages by preventing ground and water contamination, cutting routine maintenance expenses, lowering no-load losses, and providing long-term reliability in sensitive ecosystems.

Environmental stewardship has become a primary requirement for modern utility networks and commercial real estate projects. Liquid-filled transformers pose persistent environmental contamination risks due to potential oil leaks from worn gaskets, ruptured cooling radiators, or catastrophic tank ruptures. Soil remediation and groundwater cleanup costs following a major oil spill can quickly exceed the original cost of the transformer itself. Dry type transformers remove this liability completely. Operating with natural air cooling, they require zero liquid containment infrastructure and are suitable for environmentally protected water catchment zones, coastal conservation areas, and agricultural processing facilities.

On the operational side, energy efficiency is directly governed by total transformer losses, which consist of load losses (copper losses in windings) and no-load losses (iron losses in the magnetic core). The design of a low-loss dry type transformer core lamination structure is essential to meeting strict international efficiency standards, such as EU EcoDesign Directives or US Department of Energy (DOE) energy regulations. By utilizing ultra-thin grain-oriented silicon steel laminations with surface insulation coatings, eddy current losses inside the core are minimized, leading to continuous electrical energy savings over decades of continuous operation.

In addition to electrical efficiency, the total cost of ownership (TCO) for dry type transformers is significantly lower over a thirty-year lifespan. While the upfront purchasing cost of a cast resin dry type unit may be slightly higher than an equivalent oil-filled model, the operational savings compensate for the initial price difference. The absence of liquid sampling routines, oil filter changes, pressure relief valve replacements, and containment pit cleaning reduces civil engineering work and field labor costs. Furthermore, dry type transformers exhibit lower insurance premiums when installed inside commercial buildings due to their favorable fire safety rating.

1. Zero Soil Pollution Risk: Ideal for installation in water protection zones, urban underground vaults, and food processing plants.

2. Reduced Civil Engineering Costs: No need for heavy concrete bunding, oil separation sumps, or specialized fire containment walls.

3. Lower Total Cost of Ownership: Savings in routine maintenance labor, fluid testing, and insurance risk premiums offset the initial purchase cost.

4. Quiet Acoustic Signature: Clamped Dry Type Transformer Core construction reduces core vibration noise, facilitating quiet operation inside commercial office buildings.

What Are the Limitations in Power and Voltage Ratings of Dry-Type Transformers?

The primary limitations of dry type transformers center on lower maximum voltage and power capacities compared to oil-filled designs, larger overall physical dimensions at equivalent kVA ratings, higher initial capital cost, and susceptibility to environmental dust accumulation.

While dry type transformers excel in low and medium voltage distribution networks, physical and thermal limits make them less practical for high-voltage power transmission grid switchyards. Air has a significantly lower dielectric strength and thermal heat capacity than mineral oil or synthetic fluid. In liquid-filled transformers, oil acts as both an electrical insulator and a rapid heat transfer fluid, carrying heat away from internal windings via natural convection or forced pump circulation. In air-cooled systems, thermal dissipation depends on surface air currents and heat radiation from solid insulation. As a result, dry type transformers are generally economically capped at voltage classes around 36 kV to 48 kV and power ratings up to 25 MVA to 30 MVA.

Another engineering trade-off involves physical size and enclosure footprints. To achieve necessary dielectric insulation clearances in air, the physical spacing between the high-voltage winding, low-voltage winding, and the ground frame of the Dry Type Transformer Core must be larger than in liquid-filled designs. Consequently, a high-capacity dry type transformer requires a larger physical cabinet volume than an oil-immersed unit of equal power capacity. This larger core structure demands precise mechanical support framing to maintain rigidity and prevent resonant magnetic vibration during operation.

In addition, initial capital investment for cast resin or vacuum pressure impregnated dry type units is typically 15% to 30% higher than standard oil-filled units of identical rating. The higher cost stems from specialized high-temperature insulation materials, resin casting equipment, and larger volumes of premium silicon steel in the Dry Type Transformer Core to manage heat generation and magnetic flux density limits. Finally, open-ventilated dry type models must be regularly monitored in dusty or highly polluted industrial settings to prevent conductive dust accumulation on coil surfaces, which could create creepage paths or compromise cooling air channels.

1. Voltage Ceiling: Dielectric strength limits of air restrict practical deployment to medium-voltage distribution systems.

2. Spatial Requirements: Larger phase-to-phase and phase-to-ground clearances require wider indoor enclosure dimensions.

3. Sensitivity to Conductive Contaminants: Requires proper enclosure rating (IP23 to IP54) when placed in harsh, dusty, or high-humidity environments.

Where Are Dry-Type Transformers Best and Least Suitable?

Dry type transformers are best suited for indoor commercial buildings, hospitals, underground transit networks, offshore platforms, and hazardous industrial facilities where fire safety is mandatory, while they are least suitable for outdoor extra-high-voltage utility switchyards and severe sub-zero environments without climate control.

Matching transformer technology to specific application environments is essential for long-term grid reliability. Dry type transformers excel in critical indoor locations where human safety, fire prevention, and environmental protection are paramount. High-rise commercial towers, medical centers, data centers, and university campuses widely utilize cast resin dry type transformers because they can be placed directly in subterranean basements or upper floor utility rooms without blast vaults or oil catchment pits. The stability of the underlying Dry Type Transformer Core ensures reliable continuous operation under variable building electrical loads, suppressing voltage fluctuations and maintaining high efficiency under continuous duty cycles.

Industrial applications with stringent safety mandates also prefer dry type architecture. Chemical manufacturing plants, pharmaceutical facilities, automotive assembly lines, underground mining shafts, and marine propulsion systems benefit from the explosion-proof nature of solid insulation. Offshore wind turbine nacelles and oil platforms, where space is tightly constrained and fluid leaks pose marine pollution risks, rely on dry type transformers designed with special anti-vibration clamps and salt-spray resistant core coatings. In these environments, rigid clamping of the Dry Type Transformer Core lamination structure prevents core displacement under severe sea-motion or turbine structural vibration.

Conversely, dry type transformers are generally unsuitable for outdoor extra-high-voltage sub-stations, long-distance utility transmission lines above 69 kV, and severe outdoor environments exposed to continuous unmonitored flooding, heavy ice accumulation, or chemical submersion. Outdoor switchyards exposed to extreme weather often favor liquid-immersed transformers equipped with sealed tanks and radiator banks designed for extreme weather exposure. Understanding these boundaries ensures utility planners and industrial electrical engineers deploy the right transformer topology for maximum operating efficiency and safety compliance.

1. Ideal Indoor Applications: Commercial complexes, data centers, hospitals, underground railways, food processing facilities, and chemical plants.

2. Ideal Specialized Environments: Offshore oil platforms, wind turbine nacelles, naval vessels, and mining tunnels where liquid spills are strictly forbidden.

3. Unsuitable Applications: Primary high-voltage transmission networks, unmonitored outdoor rural locations with extreme weather exposure, and sub-sea deployments.

Maintenance and Inspection Guidelines: To maximize the working life of a dry type transformer, conduct annual visual inspections of air vents, clean core and winding surfaces with dry compressed air, verify torque settings on core clamping bolts, and ensure thermal monitoring sensors remain accurately calibrated. Keeping the air channels around the Dry Type Transformer Core free of dust prevents thermal hotspots and maintains low operating temperatures.
