Outdoor dry-type transformers must be equipped with a NEMA 3R/4/4X or IP54/IP55 weather-resistant enclosure, advanced anti-corrosion protection, robust humidity and temperature management systems, UV-resistant insulation, and a high-grade moisture-impervious Dry Type Transformer Core to guarantee long-term operational integrity and thermal performance under extreme environmental stress.
Section | Summary |
Why Do Outdoor Dry Type Transformers Need Extra Protection? | Explores the fundamental vulnerabilities of dry-type transformers when operating outdoors and highlights how specialized protective measures safeguard the core assembly and insulation system against moisture, chemical pollutants, and mechanical wear. |
What Kind of Enclosure or Housing Should Be Used for Outdoor Dry-Type Transformers? | Details the design specifications of NEMA and IP-rated enclosures, material selection criteria, and structural modifications necessary to isolate internal electrical components from heavy weathering. |
How Do IP (Ingress Protection) Ratings Affect Outdoor Installations? | Analyzes the impact of IP ratings on equipment longevity, contrasting dust and water ingress protection levels to ensure optimal selection for diverse environmental conditions. |
What Environmental Conditions Must Be Considered (Rain, Dust, Sun, Temperature)? | Examines the specific stressors of outdoor deployment, including solar radiation, ambient temperature swings, heavy rain, and sand ingress, and provides engineering solutions for each. |
Should Cooling and Ventilation Systems Be Modified for Outdoor Use? | Discusses forced-air cooling, louvers, filters, and thermostatic controls tailored to maintain thermal equilibrium without introducing exterior contaminants into the cabinet. |
What Maintenance Practices Ensure Long-Term Reliability Outdoors? | Outlines systemic inspection routines, thermal monitoring protocols, and preventive maintenance strategies designed to eliminate unexpected outages and maximize service lifetime. |
Outdoor electrical distribution systems demand robust engineering solutions capable of enduring unpredictable ambient stresses. While dry-type transformers are traditionally favored for indoor facilities due to their low fire hazard and minimal environmental footprint, deploying them outdoors requires explicit technical modifications. Outdoor dry-type installations must be equipped with high-grade protective enclosures, sophisticated climate control mechanisms, optimized structural insulation, and a resilient corrosion-resistant Dry Type Transformer Core to sustain electrical conversion efficiency without suffering premature dielectric breakdown or structural degradation.
Outdoor dry-type transformers lack the self-contained fluid barrier inherent to liquid-immersed units, making their solid insulation systems and core assemblies directly vulnerable to ambient moisture, atmospheric particulates, and thermal fluctuations.
Unlike oil-filled transformers that utilize mineral oil or synthetic esters for internal insulation and continuous heat dissipation, dry-type transformers depend entirely on solid dielectric materials—such as cast epoxy resin or vacuum pressure impregnated (VPI) polyester resin—and surrounding ambient air for cooling. When installed in open-air environments, these systems are exposed to rain, snow, salt fog, industrial emissions, and wind-blown dust. Moisture combined with airborne salt or chemical deposits creates conductive tracking paths across coil surfaces, accelerating insulation breakdown and escalating the risk of phase-to-phase short circuits.
Beyond electrical tracking risks, exposure to ambient thermal variations introduces severe mechanical stress within the transformer frame. Rapid shifts between day and night temperatures lead to thermal expansion and contraction cycles. If atmospheric moisture penetrates micro-fractures in low-quality solid insulation or reaches the internal iron core, oxidation takes hold. Iron core corrosion increases hysteresis and eddy current losses, deteriorating operating efficiency and increasing audible noise levels.
Furthermore, outdoor environments introduce unpredictable kinetic impacts, wind loads, and seismic hazards. Unprotected transformer coils and terminal connections remain susceptible to foreign object intrusion, wildlife interference, and vegetation accumulation. Providing extra protection through weather-tight enclosures and environmental barriers is not merely an optional upgrade; it is a fundamental design requirement to preserve structural integrity, prevent premature dielectric failure, and align transformer operation with international reliability standards.
Environmental Stressor | Primary Affected Component | Degradation Mechanism | Long-Term Operational Impact |
Rain and High Humidity | Solid Coil Insulation & Core | Surface tracking, dielectric degradation, micro-fracturing | Dielectric breakdown, short circuits |
Atmospheric Salt Fog | Frame Enclosure & Metallic Hardware | Galvanic corrosion, chemical oxidation | Structural weakness, grounding failure |
Direct Solar Radiation | Outer Enclosure & Resin Coating | Thermal buildup, UV-induced polymer embrittlement | Reduced load capacity, shell cracking |
Wind-Blown Particulates | Air Ventilation Channels & Core Limbs | Channel clogging, mechanical abrasion | Overheating, increased no-load loss |

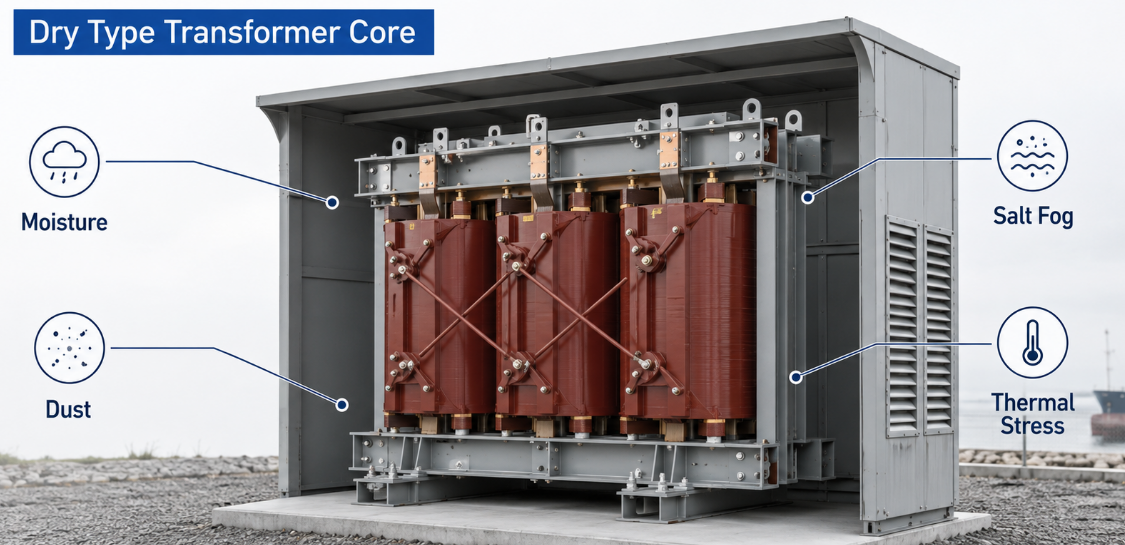

Outdoor dry-type transformers must be housed inside specialized NEMA Type 3R, NEMA 4, or NEMA 4X enclosures (or IEC equivalent IP-rated structures) engineered from heavy-gauge galvanized steel, aluminum, or stainless steel to block wind-blown rain, ice formation, and corrosion.
Selecting the appropriate housing is the primary defense against environmental deterioration. Standard indoor enclosures (such as NEMA 1 or IP20) feature open louvers that allow immediate penetration of water spray, blowing dust, and debris. Outdoor enclosures must be engineered to isolate internal live parts while accommodating heat dissipation demands. NEMA 3R enclosures provide a baseline for outdoor protection, shielding against falling rain, sleet, and external ice formation. For harsher industrial zones or coastal environments, NEMA 4 (watertight) or NEMA 4X (corrosion-resistant stainless steel) housings are mandatory.
Material selection directly determines the service lifecycle of the enclosure. Cold-rolled sheet steel with powder-coated polyurethane finishes offers cost-effective protection for general outdoor environments. However, installations in marine environments or chemical processing facilities require 304 or 316-grade stainless steel, or marine-grade aluminum alloys. These materials resist chloride-induced pitting corrosion and withstand harsh washdown procedures. The housing structural design must also feature sloped roofs to prevent standing water accumulation, drip shields over door seams, and heavy-duty, gasketed access panels with multi-point locking mechanisms to prevent unauthorized access.
Internally, the transformer structure requires specialized spatial planning within the housing. The inner layout must preserve sufficient clearances around high-voltage and low-voltage bushings to maintain air insulation margins. Cable entry locations must be situated on the bottom or lower sides of the enclosure using liquid-tight conduit fittings or heavy-duty cable glands. Top cable entries should be strictly avoided in outdoor configurations, as thermal expansion around top penetrations over time inevitably compromises seals, allowing rainwater to flow directly onto the transformer windings or internal frame.
Double-Flanged Seam Design
Prevents driven rain from infiltrating enclosure joints during high-wind storms by creating a mechanical labyrinth seal alongside resilient neoprene or silicone gaskets.
Sloped Roof Construction
Utilizes a minimum 5-degree pitch to shed rainwater and melted snow quickly, preventing water pooling and reducing rust formation along top welded joints.
Secure Gasketed Access Doors
Features continuous perimeter gasketing combined with 3-point latching handles and padlocking capabilities to maintain seal integrity across fluctuating ambient temperatures.
Internal Equipment Mounting Rails
Elevates the transformer structural base above the enclosure floor level, preventing direct contact with pooled condensate or accidental water entering through floor drains.
Ingress Protection (IP) ratings establish strict standardized benchmarks for an enclosure's ability to exclude solid objects and liquids, with outdoor dry-type transformers requiring minimum ratings of IP54 or IP55 for standard weather conditions and IP66 for harsh, high-pressure environments.
The International Electrotechnical Commission (IEC 60529) standard categorizes protective housing via the IP rating system, consisting of two characteristic digits. The first digit measures protection against solid objects and dust (scale 0-6), while the second digit measures protection against water ingress (scale 0-9). For an outdoor dry-type transformer, navigating the trade-off between thermal management (which benefits from open airflow) and protection from ingress (which favors sealed enclosures) represents a core engineering design challenge.
An IP23 rating, common in standard indoor dry-type transformers, allows air to circulate freely but only protects against falling spray up to 60 degrees from vertical. Deployed outdoors, an IP23 unit risks water ingress during wind-driven storms. Consequently, outdoor applications require a minimum of IP54 protection. An IP54 rating ensures the enclosure is dust-protected (preventing harmful particulate buildup on the internal core and coils) and guarded against splashing water from any direction. Where severe sandstorms or powerful hose-down cleaning protocols exist, IP55 (protection against low-pressure water jets) or IP66 (complete dust tightness and protection against high-pressure water jets) becomes mandatory.
Achieving higher IP ratings while maintaining effective transformer cooling requires sophisticated engineering. As IP ratings increase, free-convection airflow is restricted. To compensate for this thermal boundary, manufacturers design outer enclosures with integrated air-to-air heat exchangers or forced-air cooling loops equipped with specialized filter banks. European industrial client feedback consistently highlights a preference for modular IP55-rated enclosures fitted with quick-change stainless steel mesh filters, striking a balance between high ingress protection and straightforward field maintenance.
IP Rating | Protection Against Solids | Protection Against Liquids | Outdoor Suitability Level | Primary Application Area |
IP23 | Finger / Objects > 12.5mm | Water spraying up to 60° | Unsuitable (Indoor Only) | Indoor switchgear rooms |
IP54 | Dust Protected | Splashing water from any direction | Moderate Outdoor | Sheltered outdoor pads, urban sub-stations |
IP55 | Dust Protected | Low-pressure water jets from any direction | High Outdoor | Standard exposed outdoor industrial sites |
IP65 | Dust Tight | Water jets from any direction | Extreme Outdoor | Heavy industrial plants, desert environments |
IP66 | Dust Tight | Powerful water jets / heavy seas | Severe Marine Outdoor | Offshore platforms, coastal docks |
Outdoor installations must withstand localized environmental dynamics including wind-driven precipitation, fine sand particulate contamination, high solar thermal loads, and extreme ambient temperature swings spanning from arctic freezing to tropical heat.
Designing an outdoor dry-type transformer demands a thorough site-specific analysis of environmental variables. Rain and liquid precipitation present immediate risks of electrical breakdown. When rainwater combines with industrial pollutants such as sulfur dioxide or nitrogen oxides, acidic condensation forms on the internal components. This requires outer metal enclosures to use chemical-resistant coatings and internal coils to be treated with hydrophobic, non-hygroscopic resin finishes.
Dust and wind-blown sand represent severe abrasive and thermal hazards. Fine particulates can collect within the narrow vertical ventilation ducts between the high-voltage and low-voltage windings. Over time, this dust layer acts as a thermal insulator, trapping heat within the core leg and accelerating thermal aging of the insulation. Furthermore, conductive dust particles (such as carbon black or iron filings in industrial areas) can cause surface flashovers across terminal bushings. Enclosure design must integrate fine particulate filters, labyrinth louvers, or sealed heat exchanger loops to mitigate dust accumulation.
Solar radiation and extreme ambient temperatures represent additional operating challenges. Direct sunlight exposure on dark metal enclosures can elevate internal housing temperatures by 10°C to 15°C above ambient air temperature. This thermal loading reduces the transformer's continuous kVA power rating unless offset by derating calculations or thermal management additions. The design should feature solar reflection canopies (double-roof structures with an isolating air gap) and high-reflectance light-colored polyurethane paints.
Extreme ambient temperature variations also trigger internal moisture condensation. During nighttime cooling, the air inside an enclosure contracts, drawing in humid outside air. As temperatures drop below the dew point, water droplets condense directly onto the cold iron core and winding surfaces. Incorporating anti-condensation space heaters controlled by relative humidity sensors and thermostats eliminates this risk.
Heavy Rainfall and Tropical Storms
Features downward-angled intake louvers, internal labyrinth drip trays, hydrophobic epoxy resin encapsulation, and bottom-located drain valves with automatic float traps.
Sandstorms and Arid Environments
Employs multi-stage washable air filtration panels, heavy-duty door gaskets, non-abrasive coil coatings, and derated thermal parameters to compensate for elevated ambient heat.
High Solar Radiation Regions
Incorporates top-mounted sun-shield covers with passive air ventilation gaps, UV-stabilized exterior powder coatings, and oversized radiator surface areas.
Freezing Temperatures and Snow
Utilizes low-temperature structural steels to prevent cold embrittlement, high-capacity internal space heaters, and mechanical roof snow-slopes.
Yes, cooling and ventilation systems must be modified using outdoor-rated forced-air fans, anti-condensation space heaters, filtered louver assemblies, and closed-loop thermal management systems to sustain heat dissipation without compromising weather tightness.
Standard indoor dry-type transformers rely on natural air convection (AN cooling), where cool air enters through open bottom vents and exits through top louvers. In an outdoor setting, open louvers admit rain, insects, and atmospheric debris. Modifying the cooling system is critical to maintaining thermal balance within an IP-rated enclosure. For lower-capacity units, passive ventilation using downward-curved louvers fitted with fine stainless-steel mesh filters provides sufficient cooling. However, for higher kVA ratings, forced-air systems (AF cooling) utilizing IP55-rated weather-proof fans are required.
Forced-air cooling systems outdoors must integrate thermostatic and humidity control logic. These fans should run based on real-time winding temperature feedback provided by PT100 resistance temperature detectors (RTDs) embedded directly within the transformer coils. Variable frequency drives or multi-stage fan controllers regulate airflow based on thermal demand, minimizing fan energy consumption and reducing unnecessary intake of ambient air and contaminants during light load periods.
In highly corrosive or polluted environments where external air cannot be allowed inside the enclosure, engineers implement Air-to-Air Heat Exchangers (Closed-Loop Cooling). In this design, internal warm air circulates within a completely sealed inner chamber, transferring thermal energy through an aluminum or stainless-steel heat exchanger core to an independent external airflow loop. This isolates the sensitive durable Dry Type Transformer Core and solid coil assemblies from severe outdoor contaminants while ensuring low operating temperatures.
Design Insight — Closed-Loop Thermal Balancing:
When installing high-capacity dry-type transformers in desert environments, European and Middle Eastern engineering consultants favor closed-loop air-to-air heat exchangers. By eliminating external air intake into the primary transformer vault, maintenance cycles for filter cleaning drop by over 75%, while core thermal oxidation rates fall to near zero.
Ensuring long-term outdoor reliability requires structured preventive maintenance programs focusing on thermal imaging, insulation resistance testing, ventilation filter replacement, door gasket inspections, and regular internal cleaning of core and coil structures.
Outdoor dry-type transformers demand systematic, scheduled maintenance to counter ongoing environmental degradation. The maintenance program must combine non-intrusive operational checks with offline technical inspections. Thermographic infrared (IR) surveys should be conducted quarterly during peak load hours. IR scans highlight localized thermal anomalies caused by loose busbar connections, unbalanced phase loading, or clogged ventilation channels inside the protective enclosure before they progress to catastrophic electrical failure.
Offline maintenance routines should occur annually, or semi-annually in severe environments. The transformer must be de-energized, isolated, and grounded following safety protocols. Technicians must inspect enclosure seals and door gaskets for cracking, permanent deformation, or UV embrittlement. Damaged gaskets allow water infiltration and must be replaced immediately. Anti-condensation space heaters and their controlling humidistats must be verified for operational compliance; a failed space heater during a cold moisture-heavy season can cause rapid condensation buildup on internal insulation surfaces.
Internal cleaning forms the final pillar of effective outdoor maintenance. Accumulated dry dust on winding channels and core limbs should be cleaned using dry compressed air (regulated below 30 psi) or specialized industrial vacuum equipment. Solvent-based cleaners must be avoided as they can degrade protective coil varnishes. Insulation resistance (Megger) testing, winding resistance measurements, and core-to-ground insulation checks must be documented over time. Comparing these metrics against baseline factory test records enables asset managers to detect dielectric degradation early, ensuring uninterrupted performance across decades of field deployment.
Maintenance Task | Frequency | Target Components | Inspection Criteria / Target Values |
Infrared Thermography Scan | Quarterly | Busbars, Terminals, Cable Connections | No delta-T anomalies > 10°C over ambient connection baseline |
Enclosure Seal & Gasket Inspection | Semi-Annually | Door Gaskets, Conduit Entries | Check for elasticity, cracking, water ingress marks |
Space Heater & Control Check | Semi-Annually | Thermostats, Strip Heaters, Humidistats | Verify heater energizes below set relative humidity threshold |
Ventilation Filter Service | Semi-Annually | Inlet / Outlet Air Filters | Wash mesh or replace disposable particulate media |
Core & Winding Cleaning | Annually | Winding Ducts, Iron Core Assembly | Vacuum dust; blow out channels with dry low-pressure air |
Insulation Resistance Test | Annually | High Voltage to Low Voltage to Ground | Insulation resistance readings consistent with factory baseline |

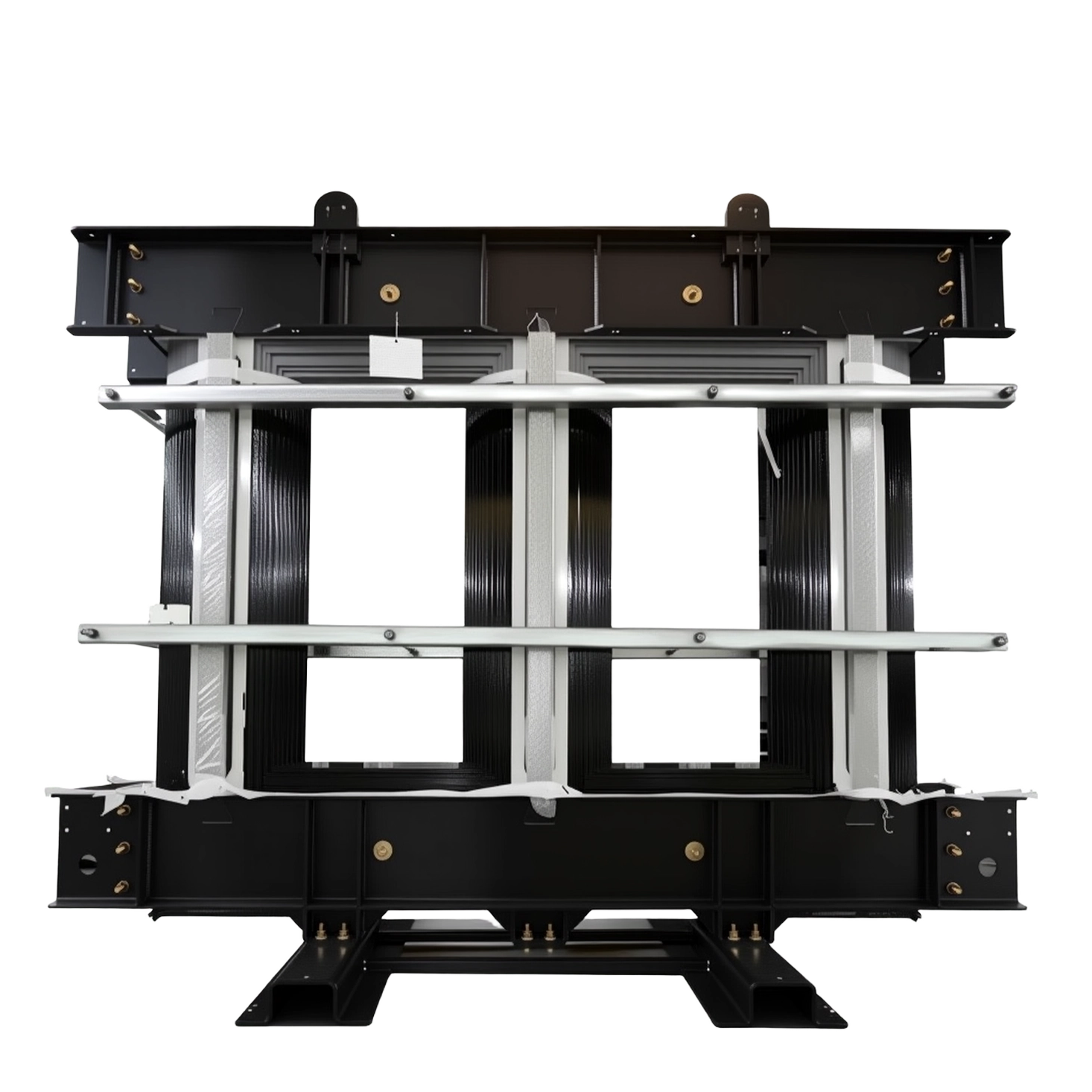

Core Grounding Integrity: Always verify that the single-point ground connection between the grain-oriented Dry Type Transformer Core and the structural frame remains tight and free of rust. Multiple accidental core grounds create stray circulating loop currents, causing localized core overheating and insulation damage.
Gasket Compression Management: Avoid overtightening enclosure door latches during routine access. Over-compression deforms neoprene and silicone gaskets, permanently destroying their elastic recovery memory and compromising the enclosure IP rating.
Torque Audit of Mechanical Fasteners: Vibrational forces during continuous operation can loosen hardware. Periodically re-torque core clamping bolts and electrical connection terminals to manufacturer-specified values using calibrated torque wrenches.
Deploying dry-type transformers in outdoor applications requires careful engineering and system integration. By pairing a high-performance transformer assembly with a NEMA 3R/4X or IP55-rated protective enclosure, engineered cooling systems, anti-condensation heaters, and proactive preventive maintenance routines, facility managers can achieve high system reliability and long equipment service lifespans.
Selecting quality core materials, precision insulation designs, and resilient structural components ensures that outdoor dry-type installations deliver safe, reliable electrical distribution in demanding environmental settings.
