Cold Rolled Grain Oriented Silicon Steel, commonly abbreviated as CRGO silicon steel, is a specialized type of electrical steel engineered with a highly uniform grain structure that optimizes magnetic permeability and minimizes core energy losses along the rolling direction. This specific crystal orientation makes it an indispensable core material for high-performance electrical transformers and other static electromagnetic machinery.
Understanding the fundamental characteristics, chemical makeup, and advanced processing techniques of this material is essential for engineers and procurement specialists in the power sector. This comprehensive article explores the definition, structural composition, diverse industrial applications, and complex manufacturing stages that define high-efficiency CRGO silicon steel.
Definition and Composition of Cold Rolled Grain Oriented Silicon Steel
Applications of Cold Rolled Grain Oriented Silicon Steel
The Art of Manufacturing Cold Rolled Grain Oriented Silicon Steel

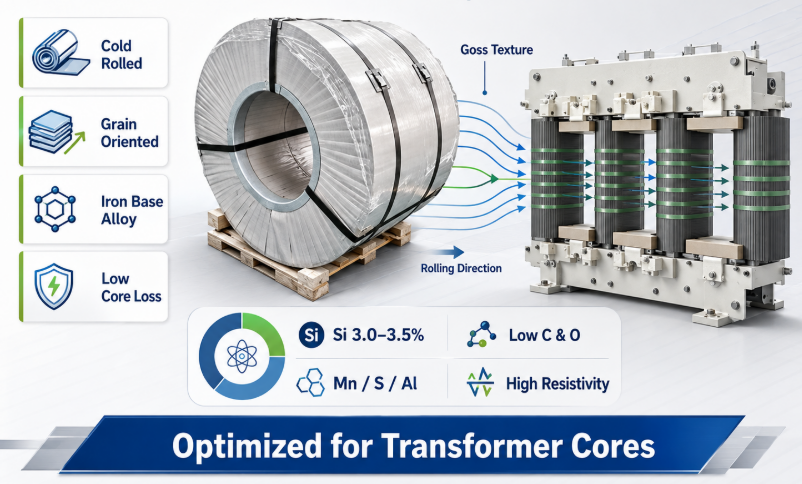

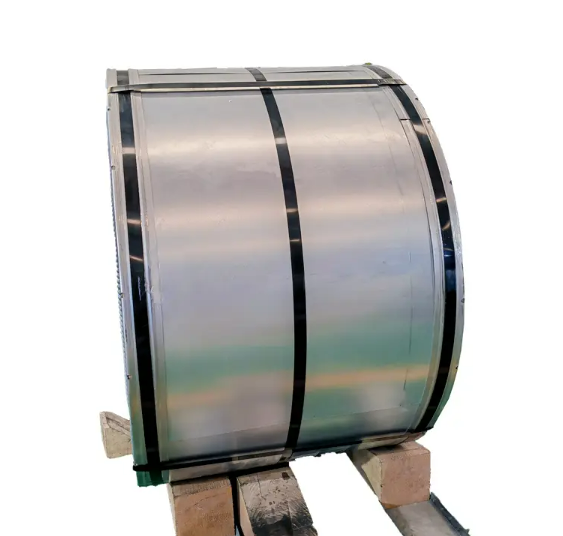

CRGO Silicon steel is an iron-silicon alloy engineered with a highly precise crystal layout achieved through rigorous cold rolling and thermal treatments to maximize magnetic efficiency. The defining trait of CRGO silicon steel is its anisotropic nature, meaning its magnetic properties are superior in a single, predetermined direction, which aligns with the rolling direction of the metal sheet during factory processing.
The structural superiority of CRGO silicon steel stems from the formation of the Goss texture, a specific body-centered cubic crystal alignment denoted as (110)[001]. In this atomic arrangement, the easy magnetization axis lies perfectly parallel to the direction in which the steel strip is rolled. By carefully controlling the grain growth, manufacturers ensure that magnetic resistance, known as reluctance, is kept to an absolute minimum, allowing magnetic flux to pass through the material with minimal friction or energy dissipation.
From a chemical perspective, CRGO silicon steel features a tightly regulated formulation. It consists primarily of iron combined with approximately 3.0% to 3.5% silicon. Silicon serves a vital dual purpose: it significantly increases the electrical resistivity of the iron matrix, which suppresses the formation of waste eddy currents, and it minimizes the undesirable effects of magnetostriction. Other alloying trace elements, such as manganese, sulfur, and aluminum, are introduced in precise parts-per-million ratios to act as grain inhibitors during recrystallization, while carbon and oxygen levels are kept exceptionally low to prevent internal magnetic aging and structural degradation.
To understand how variations in chemical composition alter the material's final field performance, consider the following technical comparison detailing typical grades of electrical steel alloys:
Alloy Component / Property | Standard Non-Oriented Steel | Conventional CRGO Steel | High-Permeability CRGO Steel |
Silicon Content (%) | 1.0% - 3.0% | 3.1% - 3.3% | 3.2% - 3.4.5% |
Grain Inhibitor Typology | None | Manganese Sulfide (MnS) | Aluminum Nitride (AlN) / Soluble B |
Crystal Alignment Type | Isotropic (Random) | Anisotropic (Goss Texture) | Advanced High-Degree Goss |
Core Loss at 1.7T (W/kg) | 2.50 - 4.00 | 1.05 - 1.30 | 0.85 - 1.00 |
Relative Permeability | Low (Normal Axis) | High (Along Rolling Direction) | Ultra-High (Along Rolling Direction) |
Engineers selecting materials for high-efficiency grids frequently evaluate procurement options based on whether an application demands conventional properties or ultra-low core loss limits. For standard institutional grids, incorporating high-quality CGO oriented Silicon Steel provides a reliable foundation that balances excellent saturation induction with commercial viability across typical operating parameters.
The primary applications of CRGO silicon steel focus heavily on static electrical apparatuses where magnetic flux must remain highly concentrated and aligned, such as power, distribution, and current transformers. Because the material exhibits its optimal magnetic characteristics along the rolling direction, it is perfectly suited for stacked or wound magnetic cores that handle continuous alternating currents.
The main use of CRGO silicon steel is found within the magnetic cores of large-scale electrical transformers. In these devices, voltage levels are stepped up for long-distance transport or stepped down for localized commercial consumption. Because power transformers run continuously, any internal core loss translates directly into financial losses and excess heat generation over decades of service. By assembling the transformer core with thin, insulated laminations of CRGO silicon steel, design engineers ensure that the magnetic flux path runs parallel to the preferred grain direction. This configuration maximizes efficiency and keeps heat dissipation within safe operational limits.
While non-oriented electrical steels are typically preferred for rotating machinery due to their multi-directional magnetic needs, specialized heavy-duty electric motors utilize CRGO silicon steel in specific segments. High-capacity synchronous motors and high-efficiency industrial drivetrains often feature grain-oriented materials within stator core slots or segment laminations where the direction of the magnetic field lines remains relatively stable. Using CRGO silicon steel in these high-efficiency configurations helps large industrial plants meet strict carbon emission reductions and reduce factory-wide electricity consumption.
In large power generation facilities, including hydro, thermal, and wind plants, CRGO silicon steel is utilized within specific magnetic circuits of high-output alternators and generators. The stator cores of these massive units experience intense magnetic forces and require materials that exhibit high magnetic saturation combined with low core losses. Incorporating CRGO silicon steel into these generator stator segments improves overall mechanical-to-electrical energy conversion efficiency, ensuring that more raw power generated by the turbine successfully enters the transmission grid.
Beyond standard utility transformers and large generators, CRGO silicon steel is an essential component in specialized electrical equipment like welding transformers, voltage regulators, and current reactors. Reactors used in high-voltage direct current transmission require premium magnetic properties to filter out harmonics and stabilize voltage fluctuations across long distances. For these demanding, high-frequency applications, selecting advanced, low-loss materials such as High Permeability HIB oriented Silicon Steel for Reactors ensures optimal magnetic performance and thermal stability under continuous loads.
Low Core Loss: The precise grain structure minimizes both hysteresis losses and eddy current losses, which significantly reduces wasted energy during continuous AC operations.
High Magnetic Permeability: The uniform crystal alignment allows the core to conduct high magnetic flux densities with minimal magnetizing current, enabling more compact equipment designs.
High Saturation Induction: The material can handle high levels of magnetic excitation before saturation occurs, which helps prevent structural voltage drops and equipment overheating.
Reduced Magnetostriction: The specific iron-silicon balance reduces physical vibration and noise levels in operating transformers, extending the service life of internal components.
The manufacturing process of CRGO silicon steel involves a highly complex series of precise metallurgical steps, including multi-stage rolling, specialized chemical inhibition, and high-temperature hydrogen annealing. Every stage of production must be strictly controlled to ensure the successful growth of the preferred Goss grain structure throughout the entire length of the steel coil.
The manufacturing process begins with continuous-cast steel slabs of precise chemical purity. These slabs are reheated to high temperatures to dissolve inherent grain inhibitors, such as manganese sulfide or aluminum nitride, evenly throughout the alloy matrix. The slab is then processed through a hot rolling mill, which reduces its thickness to a hot band measuring between 2.0 mm and 2.5 mm. Once cooled, this hot-rolled strip undergoes hot band annealing to achieve a uniform microstructure, followed by an acid pickling bath that completely removes any surface oxide scale.
Following pickling, the steel strip undergoes multi-stage cold reduction using high-pressure cold rolling mills. This process reduces the material down to its thin final thickness, typically ranging from 0.18 mm to 0.35 mm. Cold rolling deforms the crystal lattice, storage-straining the metal and creating the high internal mechanical energy needed for subsequent recrystallization. After reaching the desired thickness, the cold-rolled strip undergoes a continuous decarburization annealing process in a wet hydrogen and nitrogen atmosphere. This stage reduces the internal carbon content to less than 0.003%, a critical threshold that prevents magnetic aging while forming an initial silica film on the sheet surface.
The defining phase of CRGO silicon steel production is secondary recrystallization, which takes place inside high-temperature box annealing furnaces. The steel coils are coated with a magnesium oxide slurry and annealed at temperatures around 1200°C for an extended period under a pure hydrogen atmosphere. During this slow thermal cycle, the pre-engineered grain inhibitors suppress the growth of standard, randomly oriented grains. This allows only the grains with the ultra-efficient Goss orientation to absorb neighboring crystals and grow to a large size, ensuring the finished steel strip exhibits high magnetic permeability along the rolling axis.
The final phase of manufacturing focuses on applying surface insulation and refining the magnetic domains. The steel strip is passed through a coating line where a specialized liquid phosphate solution containing magnesium compounds is applied and baked on at high temperatures. This forms a thin, glass-like insulating layer that provides excellent electrical resistance and introduces a helpful mechanical tension across the sheet. Finally, the surface is treated with laser irradiation or mechanical domain scratching, which refines the magnetic domains to minimize eddy current losses before the finished coils are slit to width and packaged for shipping.
To review the structural architecture and critical processing insights discussed across this technical guide, the following section-by-section summary table compiles the core highlights for quick reference:
Section Name | Summary of Key Structural and Process Insights |
Definition and Composition | Details the basic definition of CRGO silicon steel as an anisotropic iron-silicon alloy featuring 3.0% to 3.5% silicon, structured specifically via the body-centered cubic (110)[001] Goss crystal texture alignment. |
Applications of CRGO | Discusses the material's use across power transformers, motors, generators, and distribution equipment where its low core loss and high permeability provide significant energy-saving advantages. |
Manufacturing Processes | Outlines the advanced multi-step production cycle, covering hot rolling, precise cold reduction, decarburization, high-temperature secondary recrystallization annealing, and final phosphate coating insulation. |
In conclusion, CRGO silicon steel remains a vital material for global power grid development and energy efficiency initiatives. By aligning the underlying iron-silicon crystal structure with the path of the magnetic flux, this specialized steel allows transformers and electrical machinery to operate with minimal energy loss. As global demand for electricity grows and renewable energy integration expands, continuous advancements in chemical purity, inhibitor control, and laser-domain refinement will continue to enhance the performance and efficiency of grain-oriented electrical steels.
