Dry-type transformer core needs to be grounded

A dry-type transformer core must be securely grounded to prevent the dangerous accumulation of floating electrostatic potentials, eliminate the risk of destructive insulation breakdown from partial discharges, and guarantee a reliable, low-impedance fault current path to the earth for maximum protection.

This deep technical whitepaper explores the underlying electrical physics, severe operational risks, precise execution methodologies, and long-term testing protocols associated with establishing a secure electrical connection for the primary magnetic structure. By carefully aligning theoretical principles with field installation guidelines, this article provides procurement specialists, electrical contractors, and system operations engineers with a complete manual for minimizing power losses, preventing catastrophic arc flash failures, and maintaining stable power quality across industrial and commercial networks.

Through comparative matrices, logical step-by-step installation guides, and targeted engineering deep-dives, readers will understand why this minor design detail is an absolute requirement for modern energy transmission. Furthermore, implementing these standards preserves the core components, maximizing the return on investment for critical infrastructure assets.

Table of Contents

1. Introduction to Dry-Type Transformer Core Grounding

2. The Physics Behind Grounding a Dry Type Transformer Core

3. Risks of Leaving a Dry Type Transformer Core Ungrounded

4. Step-by-Step Core Grounding Methods and Procedures

5. Monitoring Core Health and Grounding Connection Integrity

Introduction to Dry-Type Transformer Core Grounding

An introduction to dry-type transformer core grounding highlights the foundational engineering requirement of connecting the primary silicon steel lamination assembly to a reliable earth safety matrix to eliminate floating voltage hazards.

The development of high-efficiency dry-type power systems has drastically reduced the maintenance overhead and environmental liabilities traditionally associated with fluid-insulated machinery. However, removing the oil medium means that the solid insulation barriers and atmospheric clearances must bear the brunt of the electrical fields generated within the enclosure. To ensure that these electrical stresses do not compromise system stability, every internal metal component that does not carry current, including the primary structural clamping and the high-permeability magnetic frame, must be maintained at a uniform electrical potential. This uniform baseline is achieved through a dedicated, single-point electrical grounding strategy that links the internal frame directly to the main facility ground bus.

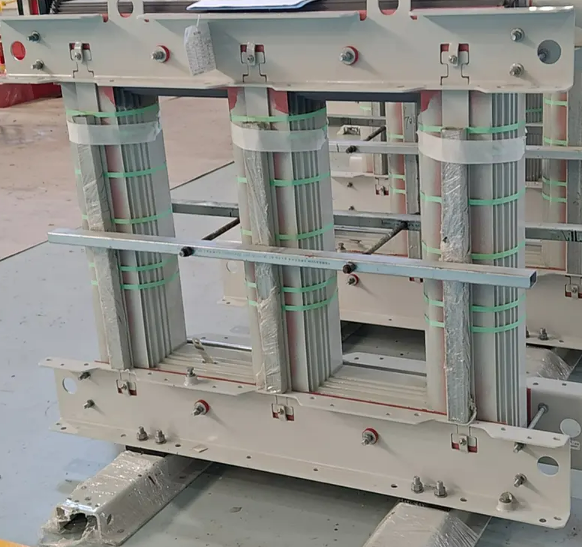

Within any high-performance distribution unit, the selection of premium materials remains a critical factor in determining long-term efficiency and structural thermal stability. Utilizing an expertly engineered, high-permeability Dry Type Transformer Core allows the system to guide the alternating magnetic flux with minimal reluctance and minimal hysteresis losses. However, even the most advanced grain-oriented silicon steel structure will experience severe dielectric stress if it is left electrically isolated within a strong, high-frequency electromagnetic field. Grounding this central framework ensures that the low-loss magnetic grid operates within safe electrical parameters, free from unpredictable floating voltage spikes.

Furthermore, proper design of the earthing circuit prevents internal structural elements from acting as large capacitors. Because the primary and secondary copper windings operate at high operational voltages, they naturally induce charges on adjacent metallic structures through capacitive coupling. By creating an uninterrupted, heavy-duty metallic path from the internal steel framework to the earth grid, engineers can continuously bleed off these stray charges. This basic precaution shields sensitive diagnostic sensors, digital temperature controllers, and surrounding communication infrastructure from erratic electromagnetic interference, maintaining clean data signals and reliable system telemetry.

The Physics Behind Grounding a Dry Type Transformer Core

The physics behind grounding a dry type transformer core centers on managing capacitive coupling and electrostatic induction, where the close proximity of high-voltage windings to an ungrounded steel structure creates a high-voltage floating potential that must be safely discharged to the earth.

To understand the electrical physics at play, one must analyze the internal layout of an energized distribution asset. The high-voltage primary windings carry a continuous alternating current that generates a rapidly changing magnetic field within the silicon steel lamination grid. Concurrently, a powerful alternating electric field is established between the high-voltage conductor surfaces and the grounded outer enclosure metal. Because the primary magnetic laminations are positioned between these energized coils, they are subjected to intense capacitive coupling. In simple terms, the combination of the conductor insulation, the air gap, and the metallic core laminations creates a series of parasitic capacitors that naturally store electrical energy.

If the structural steel lamination block remains isolated from the ground matrix, it functions as the center plate of this parasitic capacitive network. Over multiple electrical cycles, the alternating electric field continuously induces an electrostatic charge on the isolated steel block. The magnitude of this induced voltage depends on the physical distance between the coils and the laminations, the operating voltage of the primary system, and the specific dielectric constant of the solid insulation materials. In medium-voltage applications, this floating potential can easily climb to thousands of volts relative to the true earth ground, creating a severe shock hazard for field technicians and a constant threat to adjacent component insulation.

To better visualize how these stray electrical fields and capacitive links form within an active medium-voltage installation, consider the following technical breakdown of internal capacitive nodes:

Parasitive Capacitance Matrix in Dry-Type Installations

1. Primary Coil to Magnetic Lamination Capacitance: The physical space and solid resin insulation between the high-voltage conductor and the steel sheets form a primary energy-storage pathway.

2. Secondary Coil to Magnetic Lamination Capacitance: The lower-voltage winding also links with the center steel structure, creating a secondary capacitive loop that varies with load current.

3. Magnetic Lamination to Structural Steel Clamping Capacitance: The tight physical contact between individual silicon sheets and the structural tie rods forms a localized capacitive link.

4. Structural Steel Clamping to Outer Enclosure Capacitance: The air gap separating the heavy clamping frames from the external sheet metal housing acts as the final atmospheric capacitor.

5. Overall Windings to Outer Enclosure Ground Capacitance: The total collective electric field generated across the entire cabinet assembly relative to the primary substation ground plane.

Once a solid, low-impedance ground strap is attached to the central steel assembly, this parasitic capacitive loop is effectively short-circuited to the earth. The electrostatic charges flow instantly through the ground connection rather than accumulating on the metal surfaces, collapsing the floating potential to zero volts. This allows the high-permeability Dry Type Transformer Core to focus entirely on its primary function: efficiently guiding the alternating magnetic flux to facilitate safe energy transformation, completely free from the complications of electrostatic charge accumulation.

Risks of Leaving a Dry Type Transformer Core Ungrounded

The risks of leaving a dry type transformer core ungrounded include localized partial discharges, catastrophic breakdown of winding insulation, structural overheating, and severe arc flash hazards that threaten facility safety.

When an electrical installation operates with an ungrounded magnetic frame, it exists in a state of unstable equilibrium. As the floating electrostatic voltage on the steel laminations rises, the electrical gradient across the narrow air gaps and thin insulation spacers intensifies. Eventually, the localized electric field strength exceeds the dielectric breakdown threshold of the surrounding air or resin insulation. This trigger leads to partial discharges—microscopic electrical sparks that jump across the laminations or insulation boundaries. These tiny arcs generate intense localized heat, chemical ozone, and ultraviolet radiation, gradually eroding the solid organic insulation materials over time.

As this localized insulation degradation progresses, the risk of a full-scale dielectric breakdown between the energized windings and the core structure increases dramatically. If a primary high-voltage winding suffers an insulation fault, a high-magnitude fault current will surge into the ungrounded steel frame. Without a low-impedance path to guide this fault energy back to the substation protection relays, the entire transformer frame, clamping bolts, and external metal enclosure will become energized at full system voltage. This creates a lethal touch-voltage hazard for personnel and can trigger an uncontained arc flash, destroying the asset and surrounding equipment.

To illustrate the long-term operational impacts of an ungrounded system, the table below contrasts the performance of a properly grounded unit with an ungrounded asset:

Comparative Operational Impact Matrix

Furthermore, the persistent micro-arcing associated with an ungrounded assembly generates significant thermal stress within the winding layers. This uneven heat concentration directly impacts the overall Dry Type Transformer temperature rise parameters, creating localized thermal anomalies that are difficult for standard monitoring systems to detect. Over time, these undetected hot spots compromise the mechanical strength of the epoxy resin and conductor insulation, accelerating the aging process and leading to sudden, costly system failures during peak demand periods.

Step-by-Step Core Grounding Methods and Procedures

The step-by-step core grounding methods and procedures require establishing a single-point connection using a highly conductive copper strap, ensuring that all distinct steel sections are bonded together while preventing the creation of closed loops that induce circulating eddy currents.

The most critical rule when executing grounding procedures for a high-permeability magnetic system is to ensure that only a single electrical path connects the steel laminations to the earth grid. If a technician accidentally installs multiple ground connections at different physical locations on the core, these separate points will create a closed conductive loop through the grounding grid. The alternating magnetic flux passing through the silicon steel will then induce a continuous current within this short-circuited loop. This circulating current generates rapid thermal energy, causing severe local overheating, shifting the Dry Type Transformer temperature rise baseline, and degrading the efficiency of the entire power system.

To safely and effectively implement a compliant single-point grounding configuration, installation teams should adhere to the following sequence of structural procedures:

Technical Execution Sequence for Single-Point Grounding

1. Structural Component Bonding

• Lamination Interconnection: Verify that the pre-installed internal copper stitching clips or grounding pins are securely contacting all distinct silicon steel sections across the core profile.

• Clamping Frame Integration: Connect the upper and lower heavy-duty steel clamping channels to the main core block using flexible, high-conductivity tinned copper braid straps.

• Surface Preparation: Ensure all mechanical connection points are thoroughly cleaned of paint, non-conductive varnishes, oxidation, and factory coatings to guarantee metal-to-metal contact.

2. Main Ground Strap Installation

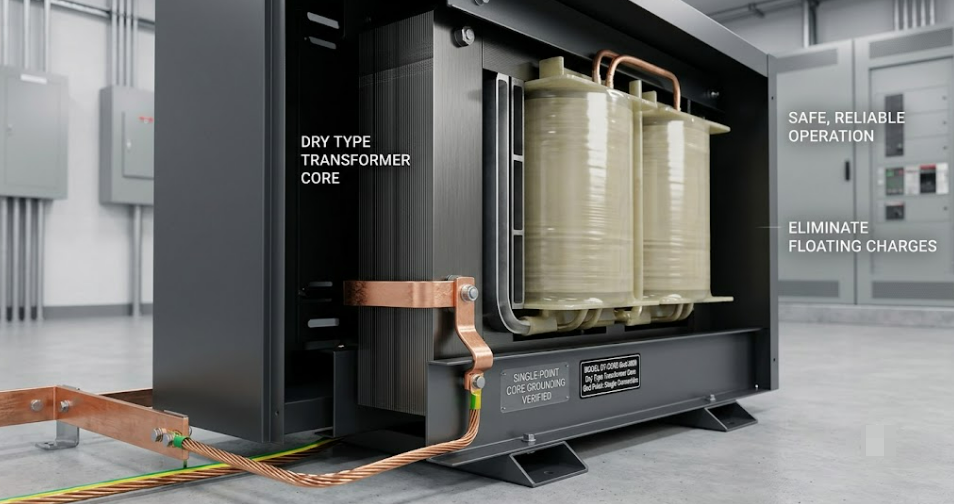

• Single-Point Attachment: Securely anchor a dedicated, heavy-duty tinned copper grounding link to a designated grounding tab located on the lower core clamping frame.

• Hardware Standardization: Use high-grade stainless steel bolts, lock washers, and Belleville spring washers to maintain constant mechanical pressure despite cyclical thermal expansion.

• Isolation Verification: Confirm that all other internal metal components, such as mounting brackets or cable trays, are insulated from the core block except at this single ground point.

3. Connection to Facility Ground Bus

• External Terminal Routing: Route the main copper grounding strap from the lower frame connection down to the primary equipment grounding terminal located at the base of the metal cabinet.

• Substation Grid Integration: Connect the primary cabinet grounding terminal directly to the substation's main earth grid using low-impedance copper conductors sized for maximum fault currents.

By carefully following this structured sequence, installation teams eliminate both floating electrostatic charges and destructive circulating currents. This single-point connection keeps the core assembly at ground potential without introducing electrical loops. This protection preserves the efficiency of the magnetic circuit, helping the distribution asset maintain safe Dry Type Transformer temperature rise profiles even during continuous operation under demanding industrial overloads.

Monitoring Core Health and Grounding Connection Integrity

Monitoring core health and grounding connection integrity involves conducting regular insulation resistance testing, performing periodic visual examinations, and analyzing thermal trends to confirm that the low-impedance earth connection remains effective over decades of continuous operation.

Over the multi-decade lifespan of an industrial distribution asset, the grounding system is subjected to continuous mechanical vibrations, cyclical thermal expansion, and potential atmospheric corrosion. These environmental factors can gradually loosen mechanical fasteners or oxidize connection surfaces, increasing the electrical resistance of the grounding path. If the resistance of this safety link rises significantly, its ability to bleed off electrostatic charges and clear fault currents is compromised. Therefore, implementing a comprehensive, proactive diagnostic and testing program is essential for verifying the ongoing effectiveness of the earthing infrastructure.

The primary method for evaluating the integrity of the grounding circuit is the insulation resistance test, commonly known as a Megger test. During scheduled maintenance shutdowns, technicians temporarily disconnect the main grounding strap from the cabinet earth terminal. A high-voltage insulation tester is then connected between the core framework and the ungrounded enclosure body. A high insulation resistance reading (typically exceeding 100 megohms) confirms that the laminations are completely isolated from all other structural elements, verifying that no accidental secondary ground paths or short-circuited loops have formed during operation.

To provide facilities management teams with a standardized schedule for diagnostic maintenance, the matrix below outlines the essential monitoring procedures and their technical intervals:

Preventive Diagnostic Protocols for Dry-Type Systems

Through the diligent application of these predictive monitoring protocols, operational engineers can identify and resolve grounding anomalies long before they escalate into serious equipment faults. Maintaining a low-impedance ground path protects the internal architecture and ensures stable performance from the high-permeability magnetic system. This disciplined approach safeguards the investment in the premium silicon steel grid, keeping core losses minimal and ensuring the facility's power infrastructure remains safe and efficient.
