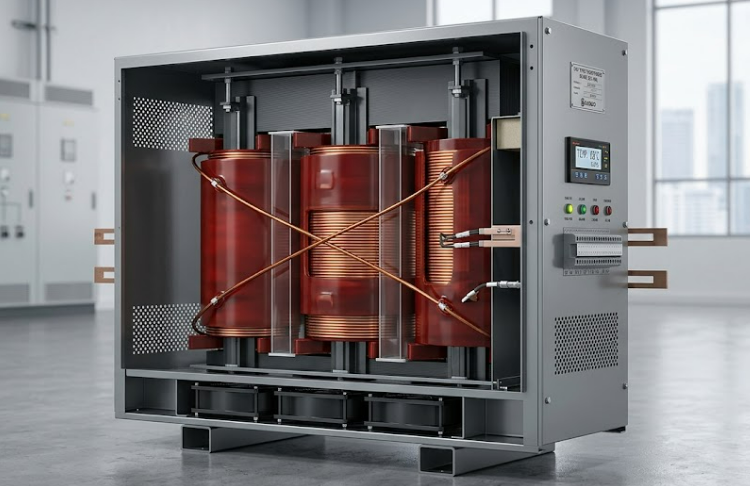

The main components of a dry type transformer consist of a premium grain-oriented silicon steel magnetic core, heavy-duty vacuum-cast primary and secondary windings, a high-temperature solid insulation system, a natural or forced-air cooling fan assembly, a rugged protective metallic enclosure, and an array of digital monitoring and protection devices working together to deliver safe, highly efficient voltage conversion.
This technical document provides a comprehensive component breakdown of modern dry-type power systems. By looking into the metallurgical design of the core structure, the geometric configuration of the electrical windings, the chemistry of solid resins, and the digital logic of thermal monitoring systems, this guide serves as a manual for professional buyers and engineering contractors.
Through structured comparative matrices, detailed installation checklists, and engineering deep-dives, we will examine how these individual assemblies interact under full-load conditions. Understanding these interactions will help your technical team implement better power distribution layouts while maximizing the lifespan of your critical infrastructure investments.
Core
Windings
Insulation System
Cooling System
Enclosure
Monitoring and Protection Devices

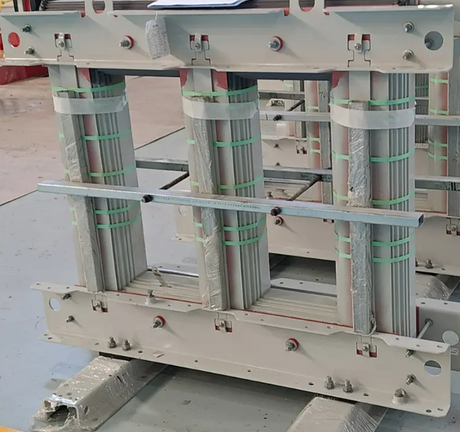

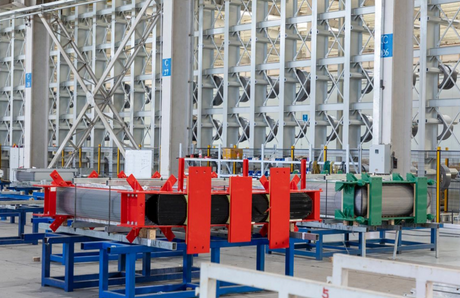

The core of a dry-type transformer acts as the primary magnetic circuit that links the electrical windings, built from ultra-thin, grain-oriented silicon steel laminations to provide a high-permeability pathway that guides alternating magnetic flux with minimal energy losses.
At the center of any power conversion asset sits the magnetic steel assembly, which forms the physical foundation for electromagnetic induction. The efficiency of the entire system depends directly on the quality of this structure. Utilizing a premium, low-loss, precision-stacked Dry Type Transformer Core ensures that the magnetic reluctance remains at its absolute theoretical minimum. This optimization prevents unnecessary energy losses from turning into stray heat, helping the facility achieve superior power conversion efficiency from day one.
To limit the generation of internal eddy currents, this magnetic framework is not cast from a single solid block of metal. Instead, it is assembled from thousands of individual silicon steel sheets, each coated with a microscopic layer of inorganic insulation material. These laminations are cut using advanced step-lap geometric techniques and stacked in a precise staggered configuration. This specialized alignment minimizes the magnetic air gaps at the corner joints, drastically reducing operational noise levels and lowering the idle excitation currents that pass through the system during low-load periods.
Furthermore, the structural integrity of the lamination block is maintained by heavy-duty steel clamping channels and insulated tie rods. These components exert continuous, uniform pressure across the entire steel assembly, preventing the laminations from vibrating under the influence of alternating magnetic forces. By controlling these structural micro-vibrations, the Dry Type Transformer Core maintains its shape over decades of cyclic thermal expansion, protecting adjacent copper windings from mechanical wear and reducing low-frequency acoustic hum.
The windings represent the primary and secondary electrical circuits of the system, consisting of high-conductivity copper or aluminum conductors arranged in precise geometric coils to facilitate step-up or step-down voltage transformation through electromagnetic induction.
The windings are the components that handle the continuous flow of electrical current through the asset. They are split into high-voltage and low-voltage configurations, which are wound concentrically around the central magnetic limbs. To handle intense electromagnetic forces during external short-circuit events, these coils must feature high mechanical strength and exceptional thermal stability. Modern B2B applications use foil windings for the low-voltage, high-current sections, which balances axial electrical forces and reduces localized electrical stress points.
To provide clear insight into the structural engineering and electrical behavior of these conductor packages, the following technical list outlines the key design elements implemented in professional winding assemblies:
Continuous Transposition Conductors: Utilizing multiple insulated wire strands that change positions at regular intervals to eliminate skin effect losses and balance current distribution.
Cooling Air Duct Integration: Built-in vertical ventilation gaps located between the winding layers to allow ambient air to pass through and carry away heat.
Fiber-Reinforced Spacer Blocks: High-density resin spacers positioned at fixed intervals along the coil axis to maintain uniform gaps and resist axial short-circuit forces.
Tinned Copper Terminal Bars: Solid connection blocks extending out from the coils, designed with standardized bolt holes to ensure low-resistance cabling connections.
End-Turn Dielectric Reinforcement: Extra layers of high-temperature insulation wrap applied to the first and last turns of the coils to absorb transient switching surges.
The high-voltage windings are typically fabricated using disk winding or continuous layer methods, depending on the overall voltage rating of the distribution network. These coils are completely saturated with insulating varnish or sealed in solid epoxy resin under deep vacuum conditions. This vacuum impregnation ensures that all microscopic spaces within the conductor layers are filled, removing any tiny air pockets. Eliminating these internal air voids is critical because microscopic bubbles can cause destructive partial discharges, leading to gradual insulation breakdown and eventual system failure.
The insulation system of a dry-type transformer provides the critical dielectric barriers needed to isolate the high-voltage conductors from the grounded steel core and external structural components, utilizing high-temperature solid resins instead of flammable liquids.
In fluid-free electrical infrastructure, the solid insulation barriers bear the full brunt of the intense electric fields generated during medium-voltage operations. Modern dry-type systems utilize Class F or Class H solid insulation materials, which are rated to withstand continuous operating temperatures of up to 155 degrees Celsius and 180 degrees Celsius, respectively. These advanced polymer and resin compounds provide high dielectric strength while remaining completely self-extinguishing, ensuring that the equipment will not fuel an accidental fire if an external breakdown occurs.
The insulation matrix is divided into distinct internal zones to protect the system against different types of electrical stress. The table below outlines the primary dielectric zones found in an industrial dry-type unit:
Insulation Zone | Material Composition | Primary Engineering Purpose |
Turn-to-Turn Barrier | Enamel Coating or Nomex Wrap | Prevents short-circuits between adjacent copper turns within the same coil layer. |
Layer-to-Layer Barrier | High-Temperature Polymer Sheets | Isolates concentric winding layers from each other, handling the voltage gradient. |
Coil-to-Core Barrier | Heavy Resin Tube or Air Clearance | Provides a major dielectric block between the high-voltage coils and the grounded steel frame. |
Phase-to-Phase Barrier | Solid Resilient Separation Plates | Prevents phase-to-phase flashovers between adjacent phase coils during transient line surges. |
When these solid insulation materials are subjected to long-term electrical and thermal loading, maintaining an optimal thermal baseline is essential for preventing premature aging. Any unexpected increase in internal heat can accelerate the chemical degradation of the polymer chains, reducing their overall dielectric breakdown resistance. Therefore, field technicians must closely track the insulation temperature rise characteristics during full-load testing. This monitoring ensures that the internal thermal profiles remain well within the design parameters specified for that particular insulation class.
The cooling system manages the thermal profile of the unit by utilizing natural air convection or forced-air fan configurations to continuously dissipate the thermal energy generated by current flow and core losses, preventing structural overheating.
Because dry-type distribution assets lack the large liquid heat sink provided by mineral oil, they rely entirely on the surrounding atmosphere to carry away waste heat. As the temperature within the energized copper coils begins to climb, it warms the adjacent air within the internal ventilation ducts. This heated air expands, becomes less dense, and naturally rises toward the top of the cabinet enclosure, drawing cooler air in through the bottom vents. This continuous process forms a natural convection cycle that maintains a stable thermal equilibrium under standard operational loads.
When a facility experiences sustained peak-demand periods or operates in high ambient temperatures, natural air convection may not be enough to keep the unit cool. To address this, automated forced-air cooling systems are integrated directly into the lower support frames. These configurations feature high-velocity fan arrays that blow concentrated streams of air directly up through the internal winding channels. This active forced ventilation can boost the continuous load-carrying capacity of the transformer by up to 50 percent without risking damage to the solid insulation layers.
To prevent sudden thermal spikes from reducing the lifespan of your electrical assets, managing heat dissipation must be a core part of your preventive maintenance strategy. System operators should use advanced thermal modeling to evaluate how different loading profiles impact the winding temperature rise profiles of the asset. This data-driven approach allows facilities management teams to optimize fan runtime schedules, reduce fan energy consumption, and ensure that the internal components are never exposed to damaging thermal hot spots.
The enclosure serves as the protective outer shield for the internal transformer components, constructed from heavy-gauge steel panels to provide specific degrees of ingress protection against solid debris, moisture, and accidental human contact.
The protective housing is a vital mechanical component that isolates the high-voltage internal elements from the surrounding facility environment. Depending on the installation site—whether an indoor air-conditioned data center or a dusty, unventilated industrial mining cavern—the enclosure is engineered to meet specific Ingress Protection (IP) or NEMA ratings. For standard indoor installations, ventilated enclosures (such as IP20 or IP21) feature perforated metal grilles that allow optimal cooling airflow while preventing maintenance workers from accidentally touching energized terminal bars.
To clarify the structural layout and optional safety features available for industrial-grade enclosures, consider the following functional breakdown:
Heavy-Gauge Sheet Steel: Panels are stamped from high-strength steel sheets to resist mechanical impacts and contain internal electrical arc energy.
Corrosion-Resistant Powder Coating: External surfaces are treated with multi-layer epoxy powder paint to prevent rust in humid industrial environments.
Louvered Ventilation Slots: Specially angled airflow vents allow maximum cooling convection while preventing vertical dripping water from reaching the coils.
Hinged Access Doors: Lockable, full-height front and rear doors provide maintenance crews with quick access to terminals and sensors for testing.
Safety Interlock Switches: Automated limit switches disconnect primary power instantly if an unauthorized person opens the enclosure doors during operation.
Transparent Inspection Windows: High-impact polycarbonate viewports allow technicians to perform visual checks and infrared thermal scans without opening the cabinet.
For harsh outdoor environments or areas with heavy chemical dust, fully sealed, non-ventilated enclosures (such as IP54 or NEMA 4X) are required. These specialized housings completely isolate the internal components from the outside air, utilizing large external cooling fins or integrated air-to-air heat exchangers to transfer internal heat out to the atmosphere. While these sealed configurations are larger and more expensive, they provide an impenetrable barrier against airborne salt, conductive soot, and corrosive chemical vapors, ensuring long-term reliability in severe coastal or industrial zones.
Monitoring and protection devices form the intelligent sensory control network of the transformer, utilizing digital controllers, platinum RTD sensors, and over-current relays to continuously track operational health and trip the system during electrical faults.
An unmonitored medium-voltage asset represents a major vulnerability within an industrial power grid. Because dry-type units operate close to full thermal limits under heavy loads, real-time diagnostic visibility is essential for preventing catastrophic breakdowns. The core of this protection network is a multi-channel digital temperature controller connected to platinum resistance temperature detectors (PT100 sensors) embedded deep within the hottest areas of the primary and secondary winding structures. This configuration monitors thermal trends in real-time, feeding accurate data to the main automation system.
These intelligent control modules operate using multi-stage alarm logic to protect the asset from thermal damage. When the internal temperatures exceed a pre-set baseline, the controller activates the forced-air cooling fans to lower the heat. If the temperature continues to rise due to an external overload and reaches a second critical threshold, the device closes a dry contact circuit to trigger a local warning alarm. If the temperature hits the maximum safety limit, the controller sends an instant trip signal to the main upstream circuit breaker, disconnecting the power to protect the solid insulation layers from permanent degradation.
Furthermore, integrating these digital monitoring tools into an automated building management system allows engineers to perform advanced predictive data analysis. By cross-referencing real-time current loads with the monitored core and winding temperature rise data, operations managers can calculate the exact thermal health of the asset. This visibility allows maintenance teams to identify harmonic distortion issues or unbalanced phase loads early, helping you resolve power quality problems long before they cause expensive unscheduled downtime.
