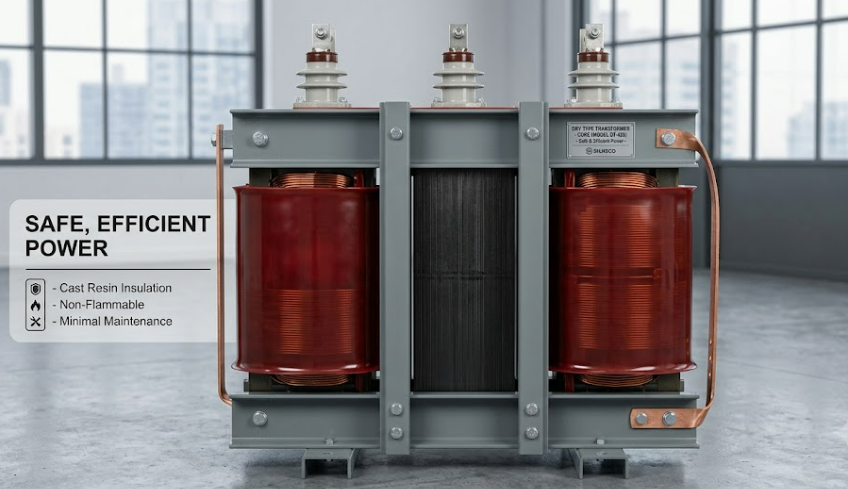

Dry Type Transformer: Safe, Efficient Power Solutions

Dry type transformers provide a safe, highly efficient, and virtually maintenance-free power solution that utilizes premium solid insulation materials like epoxy resin instead of flammable liquids to withstand high voltage stresses and complex thermal loads across modern industrial applications.

This comprehensive document provides a deep engineering analysis into the design principles, structural elements, operational characteristics, and comparative advantages of dry-type electrical distribution systems. By exploring the core metallurgical foundations, magnetic flux distribution dynamics, and critical thermal performance criteria, engineers, procurement officers, and facility managers will acquire a complete understanding of how to implement these robust power systems to achieve superior grid efficiency, unmatched fire protection, and sustainable long-term asset lifecycle management.

Through detailed technical tables, side-by-side performance matrices, and exhaustive deep dives into structural design, this whitepaper serves as a definitive guide for evaluating modern electrical infrastructure solutions, empowering decision-makers to choose systems that align perfectly with stringent international safety benchmarks and demanding energy efficiency targets.

Table of Contents

1. Introduction to Dry Type Transformer

2. Construction and Key Components of Dry Type Transformer

3. How Dry Type Transformers Operate

4. Advantages and Disadvantages of Dry Type Transformer

5. Dry Type vs. Oil-Filled Transformers: What's the Difference?

Introduction to Dry Type Transformer

An introduction to the dry type transformer highlights its unique structural definition as an electrical device that completely abandons liquid dielectrics, relying entirely on ambient air convection and solid insulation systems to cool its internal magnetic circuits and copper or aluminum windings.

The evolution of modern electrical distribution has been heavily characterized by a continuous effort to minimize hazardous incidents while maximizing power densities. Dry type transformers represent a landmark engineering achievement in this regard, offering a completely solid-state containment methodology for handling medium-voltage power conversions. By integrating specialized class F or class H insulation materials, which are capable of withstanding continuous operational temperatures exceeding 155 degrees Celsius and 180 degrees Celsius respectively, these devices operate reliably within enclosed environments without requiring complex fire suppression pits or heavy containment dikes. This makes them highly suitable for indoor installations where spatial limitations are severe and human occupancy is high.

From a global perspective, the adoption of dry-type insulation configurations is expanding due to stringent environmental protection policies that penalize chemical spills and ground water contamination. Traditional oil-insulated units present constant risks of oil leakage, which can lead to complex regulatory liabilities and severe environmental cleanup operations. Dry-type units eliminate these liabilities entirely, providing an eco-friendly option that emits no toxic gases or liquids into the surrounding ecosystem, even when subjected to direct external fire sources or severe electrical overloads. Consequently, they have become the gold standard for sustainable building designs, green corporate campuses, and strict eco-zones worldwide.

Furthermore, understanding the internal engineering of these systems requires an appreciation of the magnetic circuit. The efficiency of power conversion is largely dictated by how effectively magnetic flux is guided through the primary and secondary coils. Utilizing an optimized, precision-crafted Dry Type Transformer Core ensures that the magnetic reluctance is kept at its absolute theoretical minimum. This minimization of core losses prevents unnecessary heat accumulation within the core structure, paving the way for stable long-term operation under variable frequencies, harmonic disturbances, and cyclical loading profiles common in modern industrial distribution grids.

Construction and Key Components of Dry Type Transformer

The construction and key components of a dry type transformer involve a precisely assembled array of high-grade magnetic cores, vacuum-cast or resin-impregnated copper windings, rigid structural clamping mechanisms, and ambient thermal sensors working in unison to provide stable power conversion.

At the center of any high-performance electrical induction device sits the magnetic framework, which acts as the foundation for all energy transformation. The quality of this component is paramount; therefore, utilizing a premium, low-loss, grain-oriented silicon steel Dry Type Transformer Core is essential to guarantee that hysteresis and eddy current losses are minimized. These specialized cores are assembled using multi-tier step-lap stacking techniques, where individual laminations are insulated with thin surface coatings and precisely staggered. This sophisticated construction drastically diminishes noise levels and reduces the idle excitation currents, maximizing the overall efficiency of the distribution system from day one.

Surrounding the magnetic structure are the primary and secondary windings, which are engineered to resist immense mechanical and electrical stresses. In vacuum-cast resin units, the windings are completely encapsulated within heavy-duty epoxy resin under deep vacuum conditions, preventing any air bubbles or voids from forming inside the insulation layer. This elimination of internal voids is vital because microscopic air pockets can cause partial discharges, leading to gradual insulation degradation and eventual dielectric breakdown. The rigid encapsulation also provides an impenetrable barrier against environmental moisture, airborne chemical contaminants, industrial dust, and corrosive salt air, making the entire assembly robust and long-lasting.

To give a clearer picture of the mechanical and structural layout, the following breakdown outlines the primary physical elements that comprise a professional industrial dry-type system:

Key Physical Elements of Dry-Type Power Systems

1. Magnetic Steel Assembly: Consisting of precision-cut silicon steel sheets stacked with step-lap geometry to guide the alternating magnetic field with minimal thermal losses.

2. Encapsulated Windings: High-conductivity copper or aluminum conductors tightly wrapped and sealed in cast resin or high-temperature fiber sheets to resist short-circuit forces.

3. Clamping Framework: Heavy steel channels and tie rods that compress the laminations and coils together, preventing mechanical vibrations and hum.

4. Thermal Protection System: Multi-channel platinum resistance temperature detectors embedded within the windings to monitor thermal variations in real-time.

5. Enclosure Protection: Perforated or solid sheet metal housings designed to provide specific degrees of ingress protection against solid objects and water splashes.

The mechanical integrity of the entire structure is maintained by heavy-duty top and bottom steel clamping frames. These frames exert continuous, uniform pressure across the silicon steel laminations and coil blocks, ensuring that the assembly remains completely rigid even when subjected to the extreme electromagnetic forces generated during an external short-circuit event. Furthermore, integrated vibration-dampening pads are strategically positioned underneath the core base to isolate the transformer from the surrounding structural floor, effectively minimizing the transmission of low-frequency acoustic noise throughout the facility housing the equipment.

How Dry Type Transformers Operate

Dry type transformers operate on the fundamental principles of electromagnetic induction discovered by Michael Faraday, transferring electrical energy from one voltage level to another through an alternating magnetic field without relying on liquid cooling fluids.

When an alternating voltage is applied to the primary winding, it drives an alternating electric current through the conductors, which immediately establishes a continuously varying magnetic flux within the main magnetic circuit. This alternating flux is efficiently channeled through the high-permeability structural steel grid, passing through the center of the secondary winding coils. As the magnetic flux expands and contracts at the grid frequency, it cuts across the secondary turns, inducing an electromotive force in accordance with Faraday's law of induction. The ratio of the primary voltage to the induced secondary voltage is directly proportional to the ratio of the number of turns in their respective windings, allowing for seamless step-up or step-down functionality.

Because there is no oil or fluid medium to carry away the heat generated by the electrical currents and magnetic losses, the thermal management of a dry-type system depends entirely on air convection and radiative dissipation. As the temperature within the windings begins to escalate during peak operational periods, the surrounding air absorbs the thermal energy, expands, and rises naturally due to buoyancy forces. This natural displacement creates a continuous upward drafts of air through the internal cooling channels designed into the coil structure. To ensure that the equipment stays within its safe limits, operators must thoroughly study and manage the Dry Type Transformer temperature rise, as excessive thermal buildup can accelerate insulation aging and reduce operational life.

For high-capacity installations where natural air convection is insufficient to maintain optimal thermal margins, automated forced-air cooling systems are integrated directly into the lower frame. These cooling fan arrays are controlled by an intelligent digital temperature controller that samples data from sensors embedded deep within the winding structures. When a pre-set thermal threshold is breached, the controller activates the fans, forcing a high-velocity stream of clean air through the internal ventilation slots. This active intervention drastically improves heat transfer rates, allowing the unit to operate safely under temporary overloads or sustained peak-demand scenarios without risking long-term structural or electrical degradation.

Advantages and Disadvantages of Dry Type Transformer

The advantages and disadvantages of dry type transformers center around their exceptional fire safety, minimal maintenance needs, and environmental compliance, balanced against higher initial capital costs and a larger physical footprint compared to liquid-immersed units.

When evaluating these power solutions for critical infrastructure projects, engineers must perform a balanced multi-criteria analysis to determine how these characteristics align with the project goals. The absence of flammable liquids provides an immediate advantage in terms of architectural design, eliminating the need for expensive fire-resistant blast walls, complex oil drainage pits, and specialized halogenated fire suppression systems. This safety profile allows the equipment to be placed close to the electrical load center, reducing the length of low-voltage, high-current cable runs and significantly cutting down on overall electrical distribution line losses within the building matrix.

To present a transparent view for engineering teams, the primary benefits and operational drawbacks are structured clearly in the comprehensive evaluation list below:

Comprehensive Evaluation of Dry-Type Power Infrastructure

Operational and Structural Advantages

• Absolute Fire Safety: Since the materials used are self-extinguishing and contain no flammable fluids, the risk of explosive failure or fire propagation is completely eliminated.

• Virtually Maintenance-Free: Without the need for periodic oil sampling, dissolved gas analysis, or fluid dehydration, routine maintenance is limited to simple visual checks and vacuum dusting.

• Eco-Friendly Profile: Zero risk of hazardous chemical leaks means the unit complies perfectly with strict environmental standards, protecting groundwater resources.

• Proximity to Load Centers: Direct installation inside commercial and residential buildings minimizes secondary cable costs and improves voltage regulation.

Engineering and Economic Disadvantages

• Higher Initial Capital Investment: The complex manufacturing processes, such as vacuum resin casting, make the initial acquisition cost higher than standard oil-filled units.

• Larger Physical Size: Due to the lower dielectric strength of air compared to transformer oil, larger clearances and a larger core volume are required to achieve identical voltage insulation ratings.

• Sensitivity to Environmental Contaminants: Open-ventilated dry-type units can experience degraded performance if subjected to excessive conductive dust, soot, or heavy moisture without proper enclosures.

• Higher Acoustic Noise Levels: The solid structural clamping can transmit core resonance more readily, requiring dedicated noise-dampening engineering during installation.

Despite the higher initial cost, the total cost of ownership over a twenty-to-thirty-year lifespan often favors the dry-type system due to the elimination of routine chemical maintenance, fluid recycling costs, and expensive insurance premiums associated with oil fire hazards. Furthermore, maintaining an optimal thermal baseline is critical to maximizing this lifecycle asset value. By closely tracking the Dry Type Transformer temperature rise metrics under actual loading conditions, facility management teams can implement predictive maintenance schedules, ensuring that the solid insulation materials are never exposed to damaging thermal spikes that could compromise their dielectric properties.

Dry Type vs. Oil-Filled Transformers: What's the Difference?

The core difference between dry type and oil-filled transformers lies in their internal insulation and cooling mediums, where dry units utilize solid cast resin and air convection, while oil-filled units employ combustible mineral oil or synthetic bio-fluids to achieve electrical insulation and thermal dissipation.

This fundamental divergence in insulation media leads to radically different operational rules, maintenance paradigms, and safety parameters. Oil-filled units utilize fluid circulation, which provides highly efficient heat transfer and excellent self-healing properties after transient voltage surges. However, the presence of mineral oil creates a significant fire hazard, requiring specialized outdoor containment yards or heavily reinforced indoor vaults equipped with blast-resistant doors and automatic deluge systems. In contrast, dry-type systems eliminate these safety concerns, allowing for direct integration into public spaces, hospitals, airports, and high-rise commercial structures without risking catastrophic explosions or toxic smoke emission.

To facilitate data analysis and product comparison for engineering teams, the following comparative matrix outlines the distinct performance parameters of these two technologies:

Comparative Performance Matrix: Dry-Type versus Oil-Filled Systems

From an operational efficiency standpoint, the choice between these technologies also depends on the long-term thermal characteristics of the installation site. Because oil-filled units can dissipate heat more dynamically through fluid convection, they often handle rapid, extreme load fluctuations with less immediate thermal stress on the insulation system. Conversely, dry-type systems feature a more rigid thermal time constant, which means that understanding and monitoring the precise Dry Type Transformer temperature rise is essential to prevent localized hot spots from forming within the inner winding layers. Properly matched to their environment, dry units deliver unparalleled safety and reliability, making them the preferred choice for modern sustainable infrastructure.
